Hot-selling and scarce MP1482SDS-LF-Z 2A, 18V Synchronous Rectified Step-Down Converter SOP8

Product Descriptions

The MP1482 is a monolithic synchronous buck regulator. The device integrates two 130mΩ MOSFETs, and provides 2A of continuous load current over a wide input voltage of 4.75V to 18V. Current mode control provides fast transient response and cycle-by-cycle current limit.

An adjustable soft-start prevents inrush current at turn-on, and in shutdown mode the supply current drops to 1µA.

This device, available in an 8-pin SOIC package, provides a very compact solution with minimal external components.

Product Features

 2A Output Current

 Wide 4.75V to 18V Operating Input Range

 Integrated 130mΩ Power MOSFET Switches

 Output Adjustable from 0.923V to 15V

 Up to 93 PERCENT Efficiency

 Programmable Soft-Start

 Stable with Low ESR Ceramic Output Capacitors

 Fixed 340kHz Frequency

 Cycle-by-Cycle Over Current Protection

 Input Under Voltage Lockout

 8–Pin SOIC

Product Applications

 Distributed Power Systems

 Networking Systems

 FPGA, DSP, ASIC Power Supplies

 Green Electronics/ Appliances

 Notebook Computers

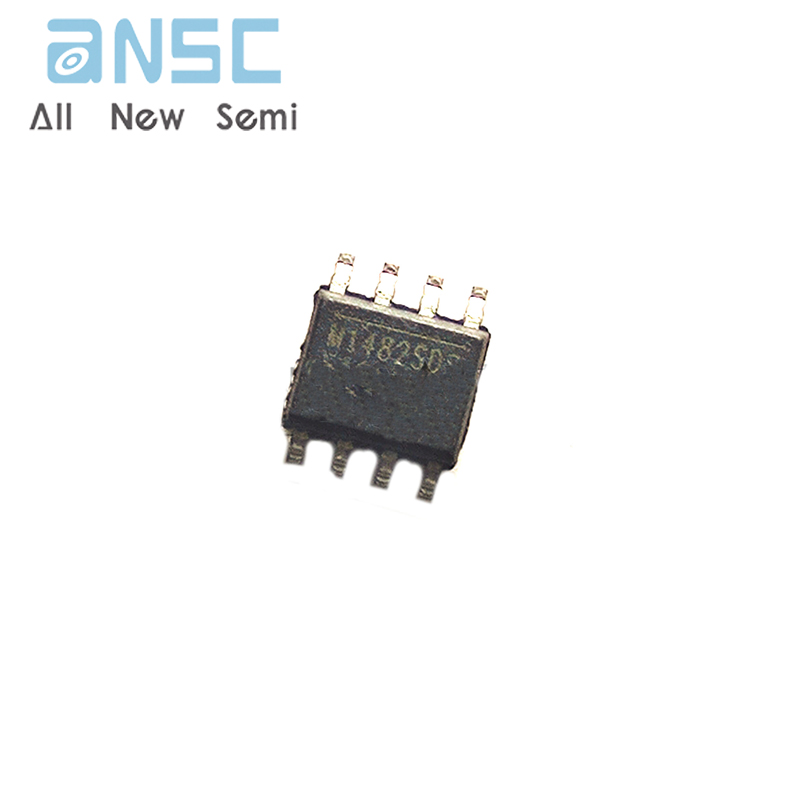

Product Photos

For more product information, please download the PDF
