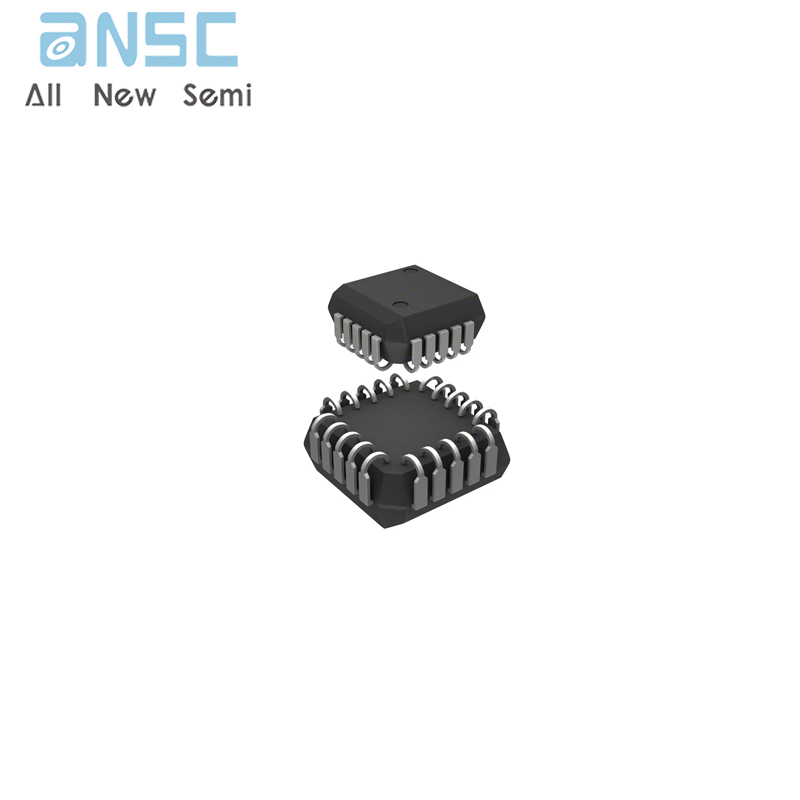

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MC10H130FNR2 Dual Latch PLCC20 spot stock
Manufacturer Product Number
MC10H130FNR2
Description
MC10H130FNR2 Dual Latch PLCC20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC10H130 is a MECL 10H™ part which is a functional/pinout duplication of the standard MECL 10K™ family part, with 100% improvement in clock speed and propagation delay and no increase in power supply current.
Product Features
• Propagation Delay, 1.0 ns Typical
• Power Dissipation, 155 mW Typical
• Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
• Voltage Compensated
• MECL 10K Compatible
• Pb−Free Packages are Available*
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC10H130FNR2 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | - |
| cms-filter-header-series | 10H |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Logic Type | S-R Latch |
| Circuit | 1:1 |
| Output Type | Differential |
| Voltage - Supply | 4.94V ~ 5.46V |
| Independent Circuits | 2 |
| Delay Time - Propagation | 1ns |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| cms-filter-header-bpn | MC10H130 |
Product Photos
、
For more product information, please download the PDF
