Spot sales of SN74LS109AN DUAL J-K POSITIVE-EDGE-TRIGGERED FLIP-FLOPS WITH PRESET AND CLEAR DIP-16
Manufacturer Product Number
SN74LS109AN
Description
SN74LS109AN DUAL J-K POSITIVE-EDGE-TRIGGERED FLIP-FLOPS WITH PRESET AND CLEAR DIP-16
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LS109AN |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74LS |
| Packaging | Tube |
| Part Status | Active |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 33 MHz |
| Max Propagation Delay @ V, Max CL | 40ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400µA, 8mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 8 mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Base Product Number | 74LS109 |

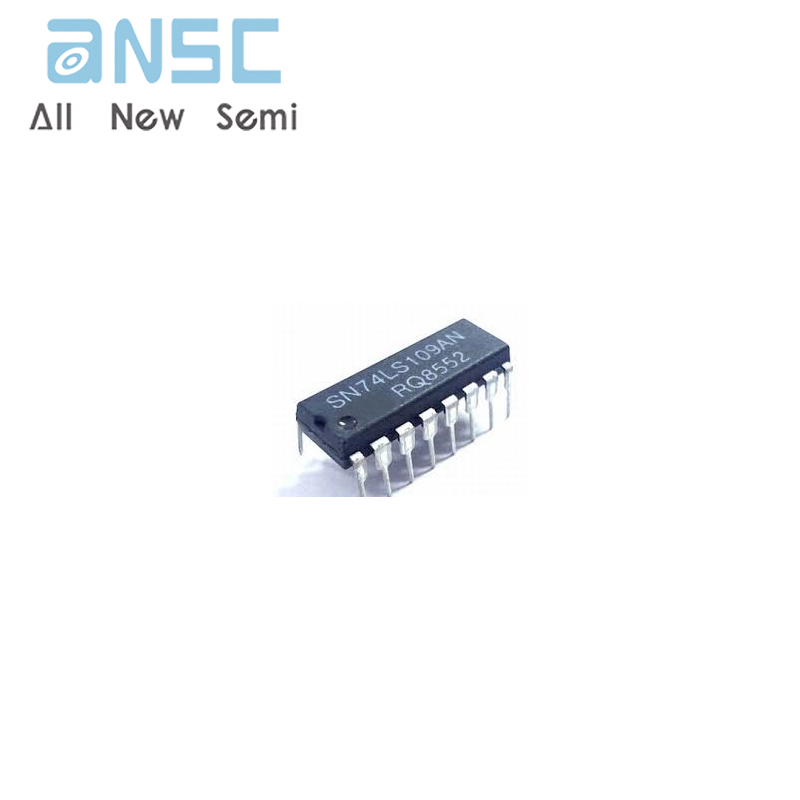

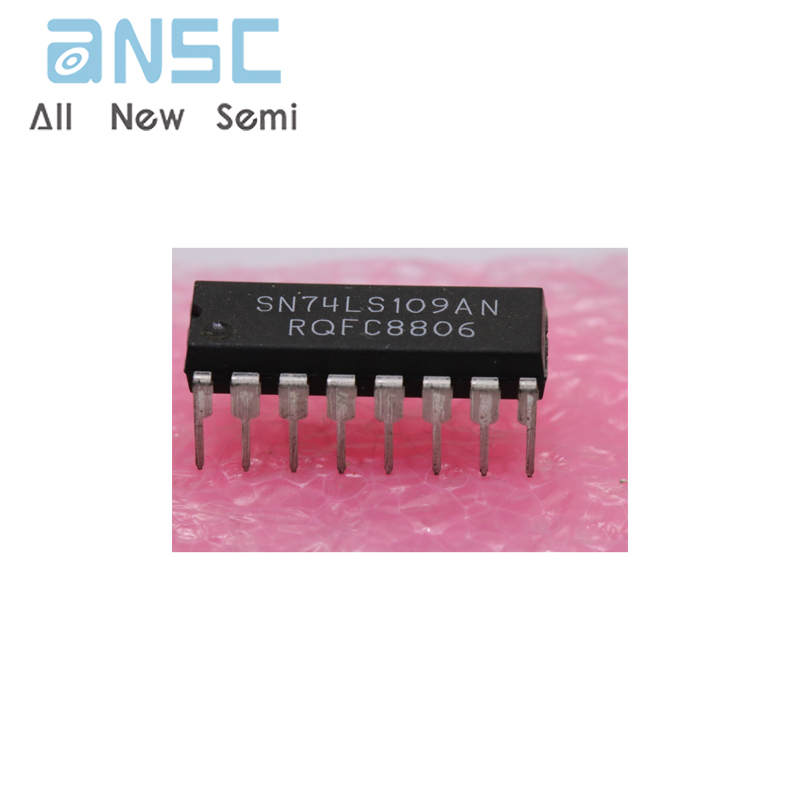

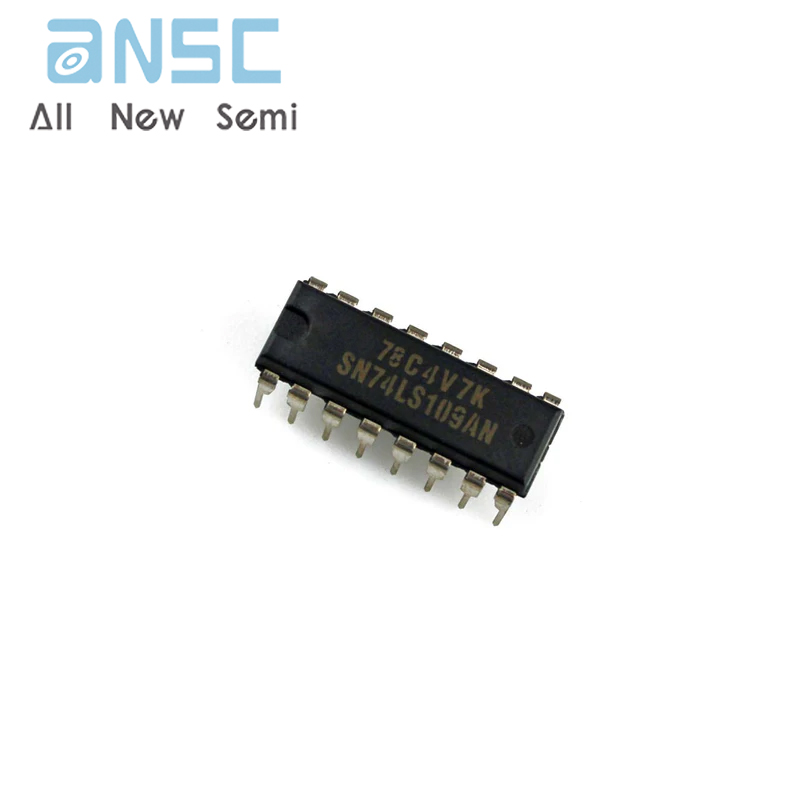

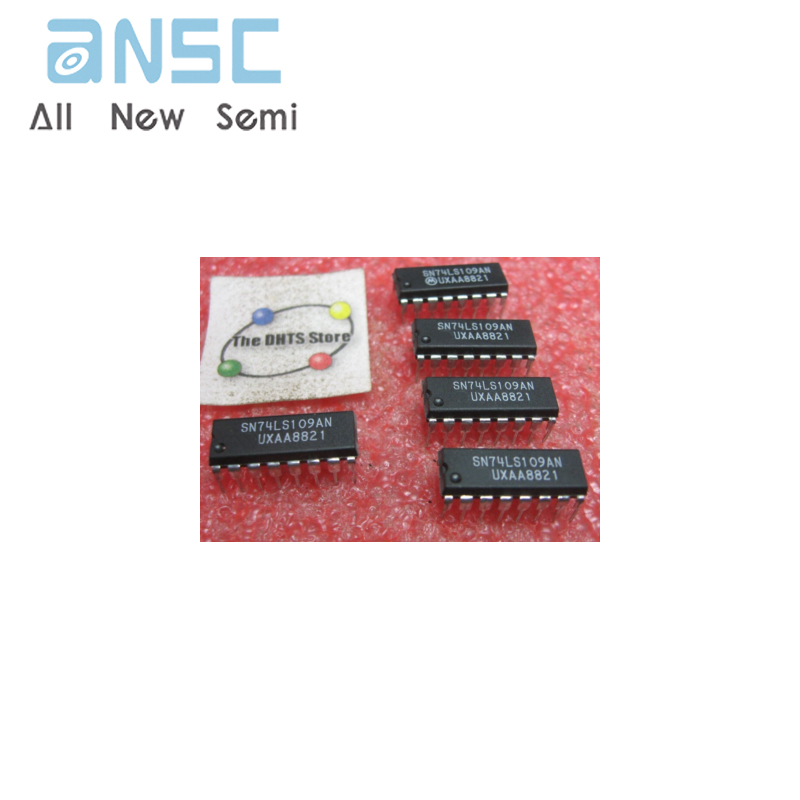

Product Photos
