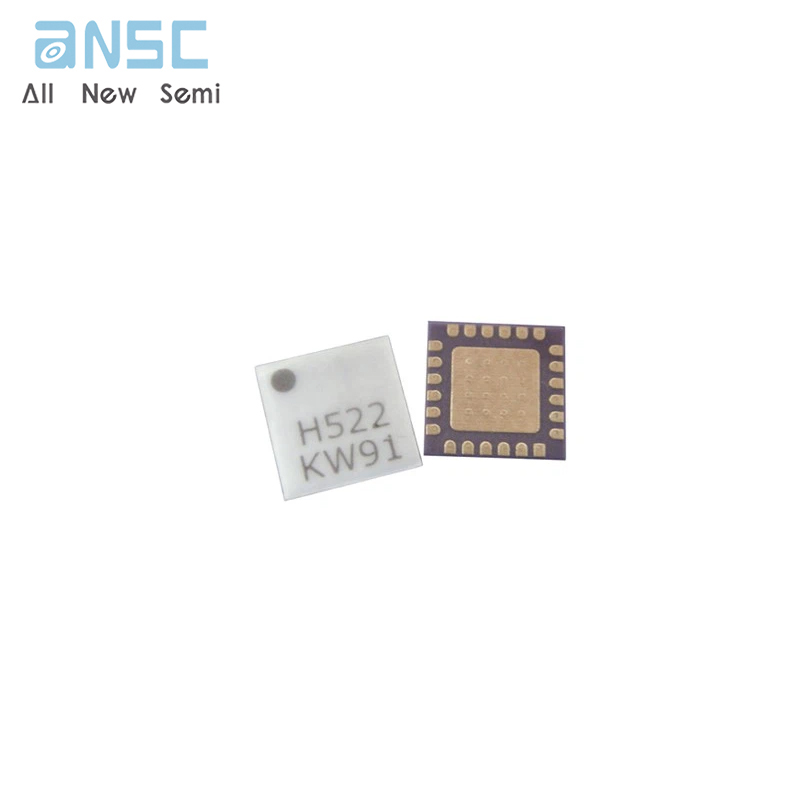

Hot-selling and scarce HMC522LC4TR GaAs MMIC I/Q MIXER 11 - 16 GHz QFN24 spot stock

Product Descriptions

The HMC522LC4 is a compact I/Q MMIC mixer in a leadless“Pb free” SMT package, which can be used as either an Image Reject Mixer or a Single Sideband Upconverter. The mixer utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated in a GaAs MESFET process. A low frequency quadrature hybrid was used to produce a 100 MHz USB IF output. This product is a much smaller alternative to hybrid style  Image  Reject Mixers and Single   Sideband    Upconverter   assemblies.   The HMC522LC4  eliminates  the  need  for  wire  bonding allowing    use   of   surface    mount    manufacturing techniques.

Product Features

Wide IF Bandwidth: DC - 3.5 GHz

Image Rejection: 35 dB

LO to RF Isolation: 45 dB

High Input IP3: +24 dBm

24 Lead 4x4mm SMT Package: 16mm²

Product Applications

The HMC522LC4 is ideal for:

• Point-to-Point and Point-to-Multi-Point Radio

• Digital Radio

• VSAT

​

Product Specifications

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
