Hot-selling and scarce M74HC4040M1 12 STAGE BINARY COUNTER SOP16 spot stock

Product Descriptions

The M54/74HC4020/HC4040 are high speed CMOS 14/12-STAGE BINARY COUNTER fabricated in silicon gate C2 MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low consumption.

A clear input is used to reset the counter to the all low level state.Ahighlevel on CLEAR accomplishes the reset function. A negative transition on the CLOCK input increments the counter by one.

For HC4020 twelve kind od divided output are provided; 1st and 4th stage to 14th stage.​

Product Features

. HIGH SPEED

fMAX = 73 MHz (TYP.) at VCC =5V

. LOW POWER DISSIPATION

ICC = 4 µA (MAX.) at TA = 25 ℃

. HIGH NOISE IMMUNITY

VNIH = VNIL = 28 % VCC (MIN.)

. OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

. SYMMETRICAL OUTPUT IMPEDANCE

|IOH|=IOL = 4 mA (MIN.)

. BALANCED PROPAGATION DELAYS

tPLH = tPHL

. WIDE OPERATING VOLTAGE RANGE

VCC (OPR) = 2 V to 6 V

. PIN AND FUNCTION COMPATIBLE WITH 4020B/4040B

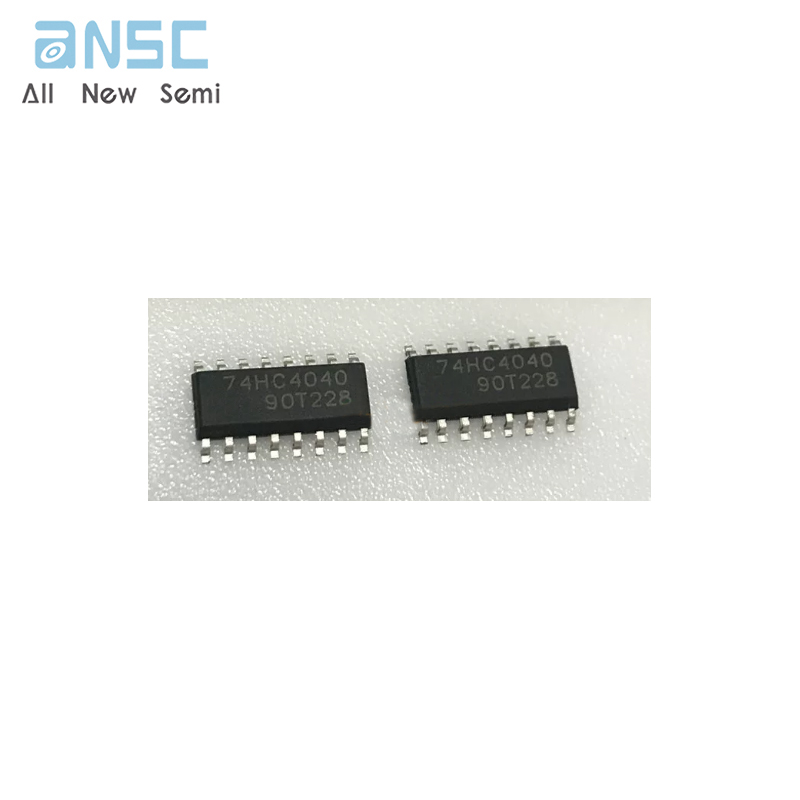

Product Photos
