Hot-selling and scarce CAT28C16AG-20 16 kb CMOS Parallel EEPROM PLCC spot stock

Product Descriptions

The CAT28C16A is a fast, low power, 5V−only CMOS Parallel EEPROM organized as 2K x 8−bits.It requires a simple interface for in−system  programming.  On−chip  address  and  data  latches, self−timed write cycle with auto−clear and V CC power up/down write protection eliminate additional timing and protection hardware.DATA Polling signals the start  and end of the self−timed write cycle. Additionally,the CAT28C16A features hardware write protection.

The  CAT28C16A  is  manufactured  using  advanced CMOS floating gate technology. It is designed to endure100,000 program/erase cycles and has a data retention of 100 years. The device is available in JEDEC approved 24−pin DIP and SOIC or32−pin PLCC packages.

Product Features

• Fast Read Access Times: 90 ns, 120 ns,200 ns

• Low Power CMOS Dissipation:

–Active:25 mA Max.

–Standby: 100 A Max.

• Simple Write Operation:

–On−chip Address and Data Latches

–Self−timed Write Cycle with Auto−clear

• Fast Write Cycle Time: 10 ms Max

• End of Write Detection:DATA Polling

• Hardware Write Protection

• CMOS and TTL Compatible I/O

• 100,000 Program/Erase Cycles

• 100 Year Data Retention

• Commercial,Industrial and Automotive Temperature Ranges

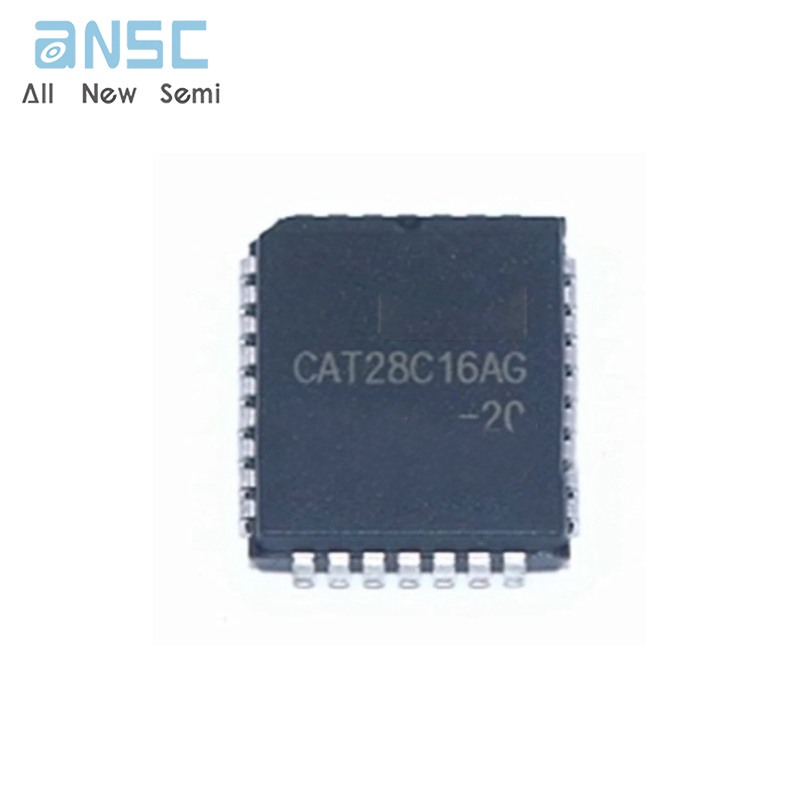

Product Photos

For more product information, please download the PDF
