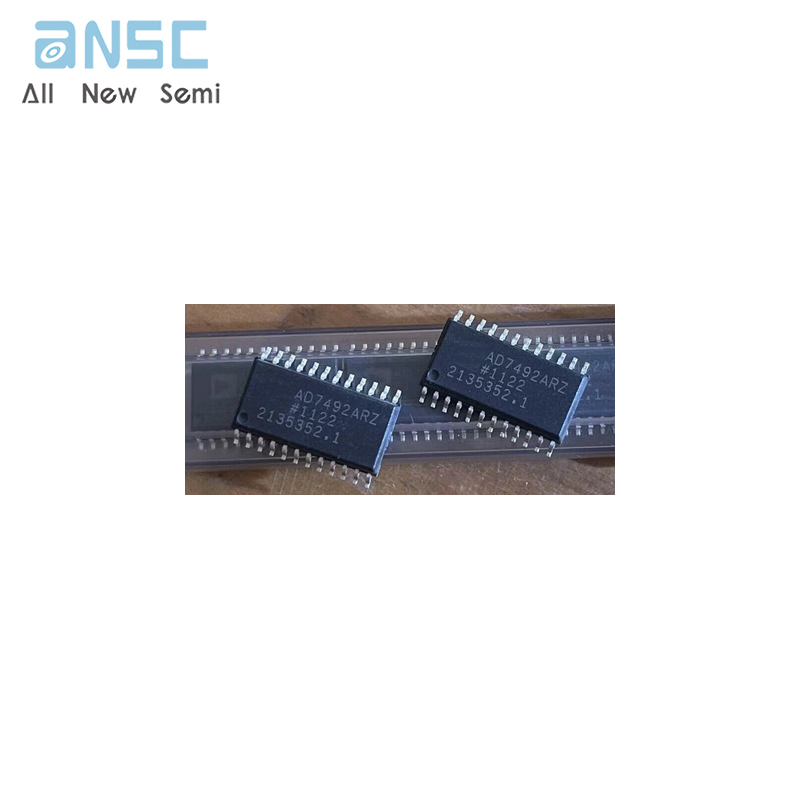

Hot-selling and scarce AD7492ARZ 16 mW Internal REF and CLK,12-Bit Parallel ADC SOP24 spot stock
Manufacturer Product Number
AD7492ARZ
Description
AD7492ARZ 16 mW Internal REF and CLK,12-Bit Parallel ADC SOP24 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD7492, AD7492-4, and AD7492-5 are 12-bit high speed,low power, successive approximation ADCs. The parts operatefrom a single 2.7 V to 5.25 V power supply and featurethroughput rates up to 1.25 MSPS. They contain a low noise,wide bandwidth track/hold amplifier that can handlebandwidths up to 10 MHz .
The conversion process and data acquisition are controlledusing standard control inputs allowing for easy interface tomicroprocessors or DSPs . The input signal is sampled on thefalling edge of CONVST and conversion is also initiated at thispoint. The BUSY pin goes high at the start of conversion andgoes low 880 ns (AD7492/AD7492-4) or 680 ns (AD7492-5)later to indicate that the conversion is complete . There are nopipeline delays associated with the part . The conversion result isaccessed via standard CS and RD signals over a high speedparallel interface .
The AD7492 uses advanced design techniques to achieve verylow power dissipation at high throughput rates . With 5 Vsupplies and 1.25 MSPS, the average current consumptionAD7492-5 is typically 2.75 mA. The part also offers flexiblepower/throughput rate management .
It is also possible to operate the part in a full sleep mode and apartial sleep mode, where the part wakes up to do a conversionand automatically enters a sleep mode at the end of conversion.
Product Features
Specified for VDD of 2.7 V to 5.25 V
Throughput rate of 1 MSPS (AD7492)
Throughput rate of 1.25 MSPS (AD7492-5)
Throughput rate of 400 kSPS (AD7492-4)
Low power
4 mW typ at 1 MSPS with 3 V supplies
11 mW typ at 1 MSPS with 5 V supplies
Wide input bandwidth
70 dB typ SNR at 100 kHz input frequency
2.5 V internal reference
On-chip CLK oscillator
Flexible power/throughput rate management
No pipeline delays
High speed parallel interface
Sleep mode: 50 nA typ
24-lead SOIC and TSSOP packages
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD7492ARZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | AD7492 |
Product Photos
For more product information, please download the PDF
