Hot-selling and scarce PEX8112-AA66BIF PCI-to-PCI Bridge Interface 144-BGA spot stock
Manufacturer Product Number
PEX8112-AA66BIF
Description
PEX8112-AA66BIF PCI-to-PCI Bridge Interface 144-BGA spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• General Features
−Forward and Reverse bridging
−144-ball BGA package with standard 1.0 mm pitch (13mm x 13mm)
−Low power – 400 milliwatts
−EEPROM configuration optionwith SPI
−Internal 8Kbyte shared RAM
−1.5 V core supply voltage
−JTAG
−Four (4) GPIO pins for maximum design flexibility
−Extensive PME support including D0 and D0Active, D1, D2 and D3Hot and D3Cold
−Leaded and Lead-free standard pitch packaging available
−Lead-free fine pitch packaging only
−Industrial Temperature:
-40 to +85ºC
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PEX8112-AA66BIF |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Specialized | |
| Manufacturer | - |
| Series | ExpressLane™ |
| Packaging | Tray |
| Part Status | Obsolete |
| Applications | PCI-to-PCI Bridge |
| Interface | PCI |
| Voltage - Supply | 3.3V, 5V |
| Package / Case | 144-BGA |
| Supplier Device Package | 144-BGA (13x13) |
| Mounting Type | Surface Mount |

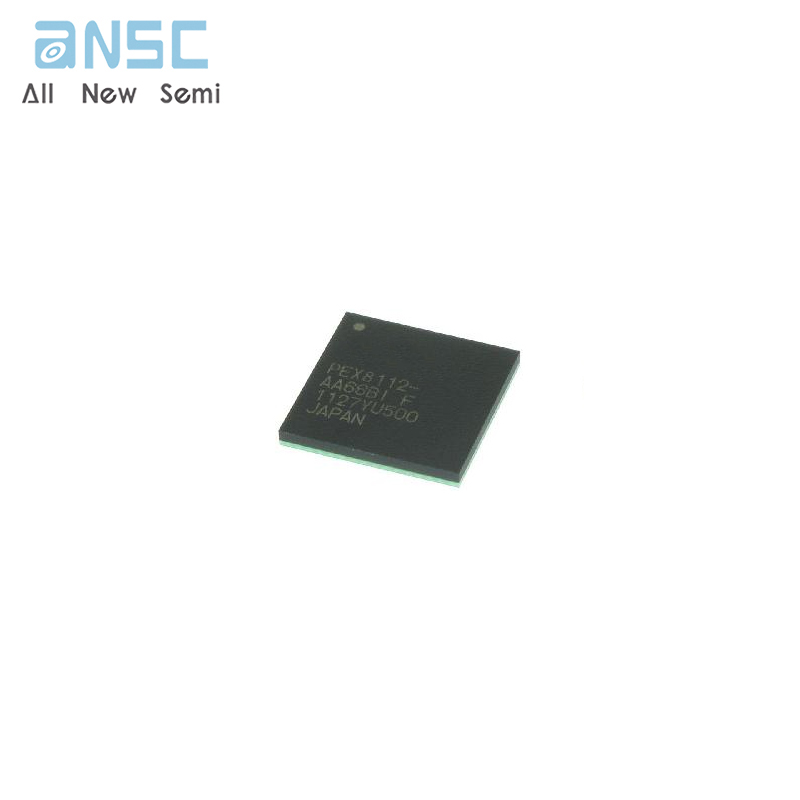

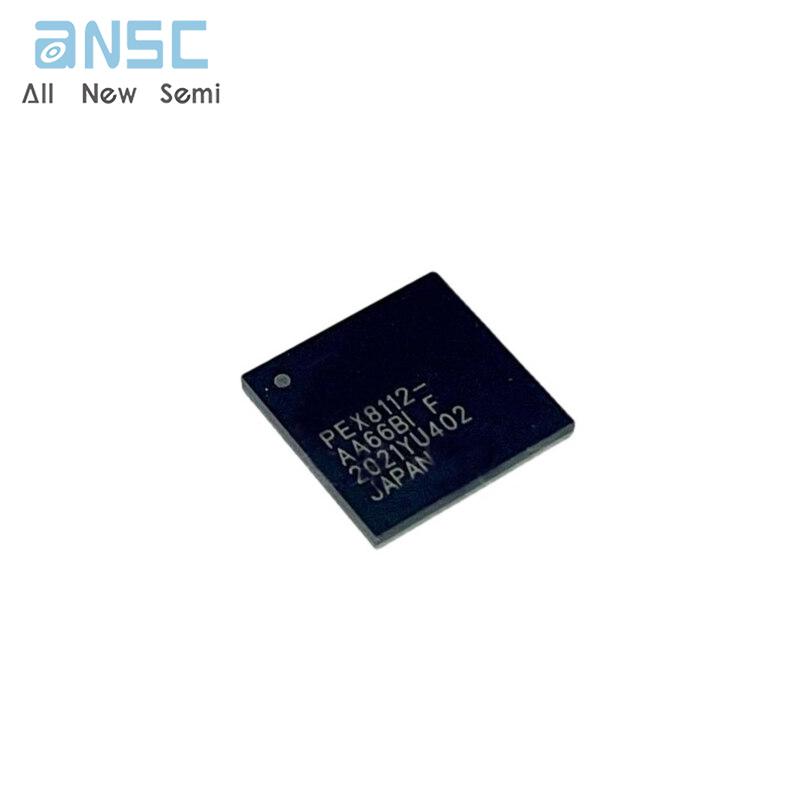

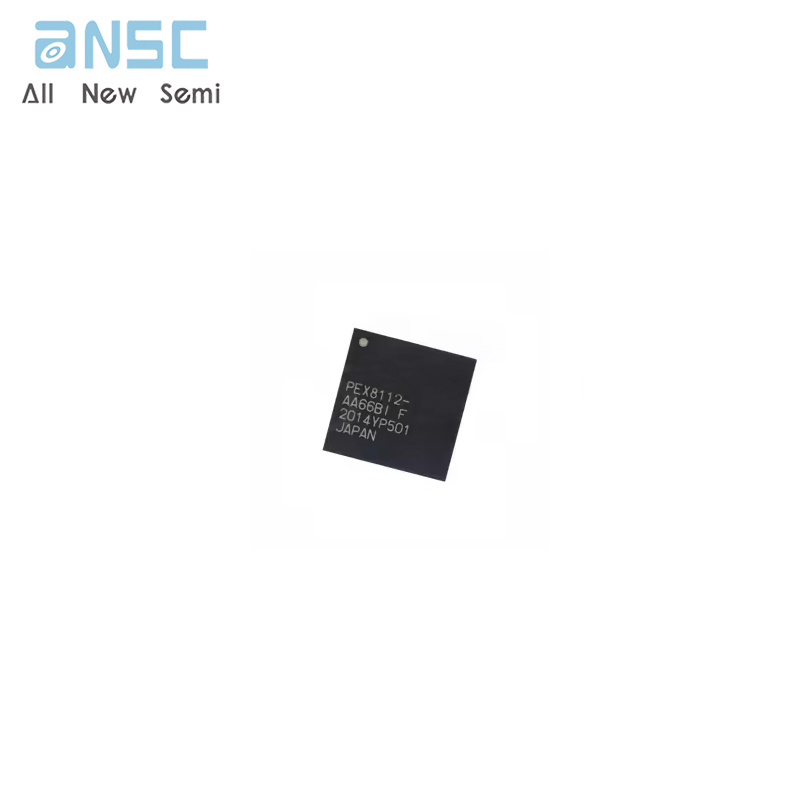

Product Photos
