Hot-selling and scarce AP65355FN-7 650kHz ADAPTIVE COT STEP-DOWN CONVERTER 10-UFDFN spot stock

Product Descriptions

The AP65355 is an adaptive constant on-time mode synchronous  buck converter providing high efficiency, excellent transient response  and high DC output accuracy for low-voltage regulation in digital  TV and monitor.

The constant-on-time control scheme handles wide input/output  voltage ratios and provides low external component count. The  internal proprietary circuit enables the device to adopt both low  equivalent series resistance (ESR) output capacitors, such as  SP-CAP or POSCAP and ultra-low ESR ceramic capacitors.

The adaptive on-time control supports seamless transition between  continuous conduction mode (CCM) at higher load conditions and  discontinuous conduction mode (DCM) at lighter load conditions.

DCM allows AP65355 to maintain high efficiency at light load  conditions. The AP65355 also features power good, programmable  soft-start, UVLO, OTP, OVP and OCP to protect the circuit.

This IC is available in U-DFN3030-10 package.

Product Features

 Fixed Frequency Emulated Constant On-time Control

 Good Stability Independent of the Output Capacitor ESR

 Fast Load Transient Response

 Synchronous Rectification: 90mΩ Internal High-side Switch and

57mΩ Internal Low-Side Switch

 Wide Input Voltage Range: 4.5V to 18V

 Output Voltage Range: 0.76V to 6V

 Power Good Indicator

 3A Continuous Output Current

 650kHz Switching Frequency

 Built-in Over Current Limit

 Built-in Over Voltage Protection

 Built-in Thermal Shutdown Protection

 Programmable Soft-start

 Pre-biased Start-up

 Totally Lead-Free & Fully RoHS Compliant

 Halogen and Antimony Free. “Green”

Product Applications

 Gaming Consoles

 Flat Screen TV Sets and Monitors

 Set-Top Boxes

 Home Audio

 Consumer Electronics

 Network Systems

 Green Electronics

Product Specification

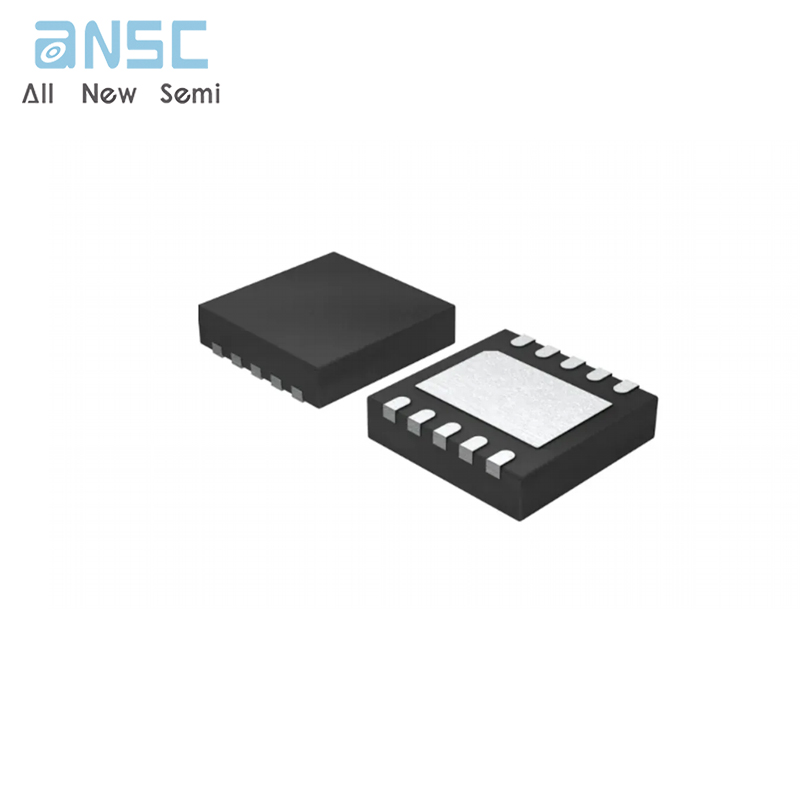

Product Photos

For more product information, please download the PDF
