Hot-selling and scarce MAX66242ETB-A+T Authentication Chip 10-TDFN spot stock

Product Descriptions

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

The DeepCover Secure Authenticator (MAX66242) is a transponder IC that combines an ISO/IEC 15693 and ISO18000-3 Mode 1-compatible RF front-end, an I2 C frontend, a FIPS 180-based SHA-256 engine and 4096 bits of user EEPROM in a single chip.A bidirectional security model enforces two-way authentication between a host system and the MAX66242 . Each device has its own guaranteed unique 64-bit ROM ID that is factory programmed into the chip.This ROM ID is used as a fundamental input parameter for cryptographic operations and serves as an electronic serial number within the application.

In addition to the RF interface, the MAX66242 also has anI2 C interface,which can operate as a slave or master port. When acting as a master,the MAX66242 can gather information from a connected sensor or peripheral device and relay its data via the RF port. When acting as a slave, the device can serve as an intermediary between a connected host and an RF reader. The MAX66242 can harvest energy from an active RF field. The configurable supply output can deliver up to 5mA given adequate field strength.

Product Features

●   Complete Counterfeit/Cloning/IP Protection Engine

•  SHA-256 Engine Runs a Symmetric Key-Based Bidirectional Secure Authentication

•  Strong Authentication Achieved with a High Bit Count, User-Programmable Secret,and Input Challenge

•   Batteryless RF Communication

•  4096 Bits of User EEPROM with User-Programmable Memory

•   Memory R/W Protection Options Including OTP/ EPROM Emulation Mode

•   Unique Factory-Programmed 64-Bit Identification Number

•   Integrated 32-Byte SRAM Buffer Enables Faster HF-to-I2 C Transactions

●   Flexible Connection and Communication Capabilities Support a Wide Range of Applications

•   Programmable I/O (PIO) Can Be Configured as a Wake-Up or Monitoring/Control Signal

•   HF Standards ISO/IEC 15693 and 18000-3 MODE1 Compatible (13 .56 MHz ±7kHz Carrier Frequency)

•   I2 C Interface—Master/Slave Port Eliminates Host Microcontroller for Sensor-Tag Applications

•   Energy Harvesting V OUT Pin for Powering External Components

•   Optional 3.3V Supply Voltage Fits Line and Battery-Powered Applications

•  -20°C to +85°C Operating Temperature Range

●   Enables Robust Design

•  ±8kV HBM ESD Protection

Product Applications

●   Access Control

●   Asset Tracking

●   Printer Cartridge Configuration and Monitoring

●   Medical Sensor Authentication and Calibration

●   System Intellectual Property Protection

Product Specification

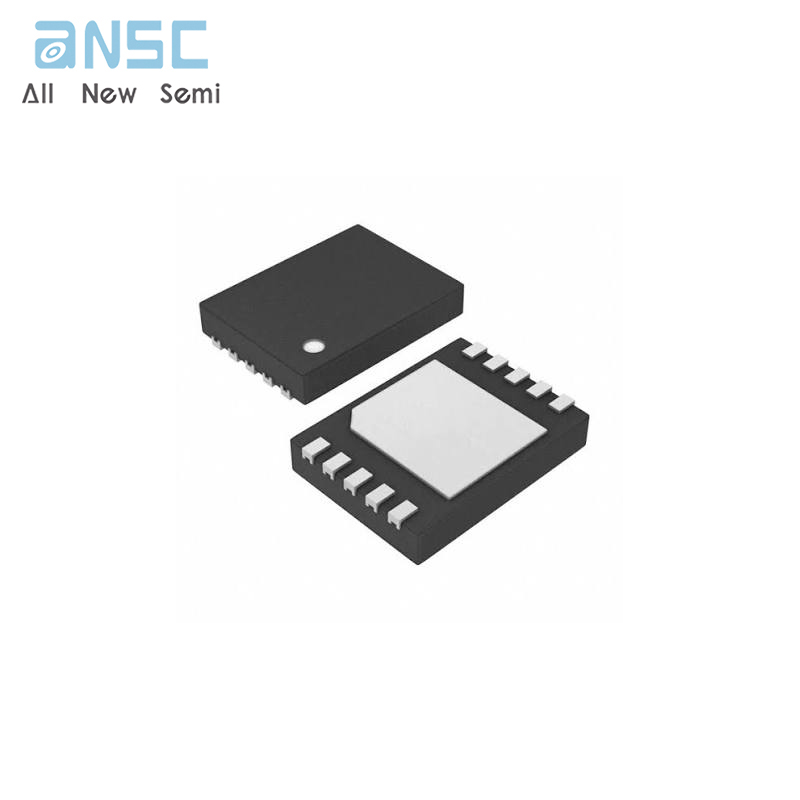

Product Photos

For more product information, please download the PDF
