Hot-selling and scarce PCA9546APW Translating Switch Interface 16-TSSOP spot stock

Product Descriptions

The PCA9546A is a quad bidirectional  translating switch controlled via the I²C bus.  The SCL/SDA upstream pair fans out to four downstream pairs, or channels.   Any  individual    SCn/SDn channel    or combination of channels can be selected, determined by the contents of the programmable control register.

An active-low reset   ( RESET)   input   allows the PCA9546A to recover from a situation in which one of the downstream I²C buses is stuck in a low state. Pulling RESET low resets the I²C state machine and causes all the channels to be deselected, as does the internal power-on reset function.

The pass gates of the switches are constructed such that the V_CC pin can be used to limit the maximum high voltage, which will be passed by the PCA9546A. This allows the use of different bus voltages on each pair,   so that   1. 8-V,   2. 5-V,   or  3. 3-V parts can communicate with 5-V parts without  any additional protection. External  pull-up resistors pull  the bus up to the desired voltage level for each channel. All  I/O pins are 5. 5-V tolerant.

Product Features

•   1-of-4 Bidirectional Translating Switches

•   I2C Bus and SMBus Compatible

•   Active-Low Reset Input

•   Three Address Pins, Allowing up to Eight

PCA9546A Devices on the I2C Bus

•   Channel Selection Via I2C Bus, in Any

Combination

•   Power-up With All Switch Channels Deselected

•   Low RON Switches

•   Allows Voltage-Level Translation Between1. 8-V, 2. 5-V, 3. 3-V, and 5-V Buses

•   No Glitch on Power-up

•   Supports Hot Insertion

•   Low Standby Current

•   Operating Power-Supply Voltage Range of 2.3 V to 5.5 V

•   5.5 V Tolerant Inputs

•   0 to 400-kHz Clock Frequency

•   Latch-Up Performance Exceeds 100 mA Per JESD 78

•   ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 1000-V Charged-Device Model (C101)

Product Applications

•   Servers

•   Routers (Telecom Switching Equipment)

•   Factory Automation

•   Products With I2C Slave Address Conflicts (for example. Multiple, Identical Temp Sensors)

Product Specification

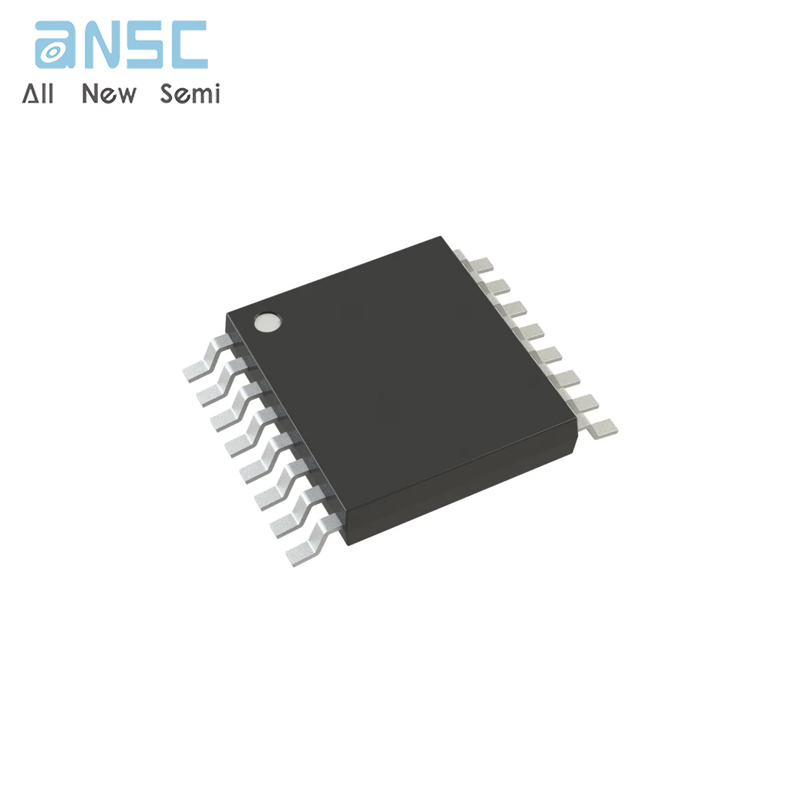

Product Photos

For more product information, please download the PDF
