Hot-selling and scarce 74AHCT74D Dual D-type flip-flop with set and reset positive-edge trigger SOP14 spot stock

Product Descriptions

The 74AHC/AHCT74 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7A.

The 74AHC/AHCT74 dual positive-edge triggered, D-type flip-flops with individual data (D) inputs, clock (CP) inputs, set (SD) and reset (RD) inputs; also complementary Q and Q outputs.

The set and reset are asynchronous active LOW inputs and operate independently of the clock input. Information on the data input is transferred to the Q output on the LOW-to-HIGH transition of the clock pulse. The D inputs must be stable one set-up time prior to the LOW-to-HIGH clock transition for predictable operation.

Schmitt-trigger action in the clock input makes the circuit highly tolerant to slower clock rise and fall times.

Product Features

• ESD protection:

HBM EIA/JESD22-A114-A

exceeds 2000 V

MM EIA/JESD22-A115-A

exceeds 200 V

• Balanced propagation delays

• Inputs accepts voltages higher than VCC

• For AHC only: operates with CMOS input levels

• For AHCT only: operates with TTL input levels

• Output capability: standard

• ICC category: flip-flops

• Specified from

−40 to +85 and +125 °C.

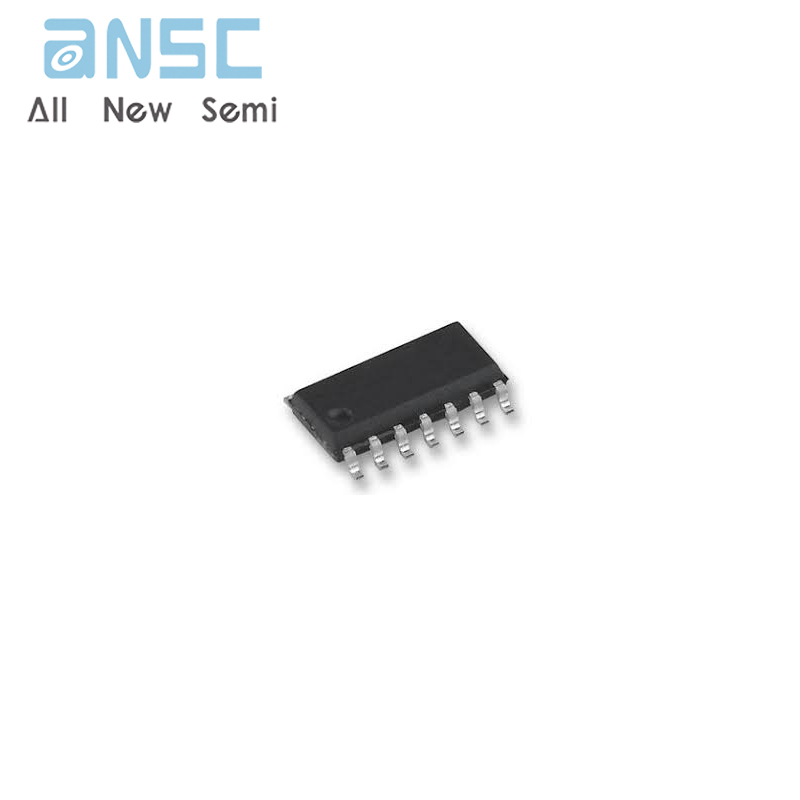

Product Photos

For more product information, please download the PDF
