Hot-selling and scarce AD9920ABBCZ 12-Bit CCD Signal Processor with V-Driver and Precision Timing Generator BGA105 spot stock

Product Descriptions

The AD9920A is a highly integrated charge-coupled device (CCD) signal processor for digital still camera applications. It includes a complete analog front end (AFE)with analog-to-digital conversion, combined with a full-function programmable timing generator and 19-channel vertical driver (V-driver). The timing generator is capable of supporting up to 24 vertical clock signals to control advanced CCDs.The on-chip V-driver supports up to 19 channels for use with six-field CCDs.A Precision Timing®core allows adjustment of high speed clocks with approximately 400 ps resolution at 40.5 MHz operation. The AD9920A also contains six GPOs that can be used for shutter and system functions.

The analog front end includes black level clamping, variable gain CDS, and a 12-bit ADC. The timing generator provides all the necessary CCD clocks: RG, H-clocks, V-clocks, sensor gate pulses, substrate clock, and substrate bias control.

The AD9920A is specified over an operating temperature range of −25°C to +85°C.

Product Features

Integrated 19-channel V-driver

1.8 VAFETG core

24 programmable vertical clock signals

Correlated double sampler (CDS) with −3 dB, 0 dB,

+3 dB, and +6 dB gain

12-bit, 40.5 MHz analog-to-digital converter (ADC)

Black level clamp with variable level control

Complete on-chip timing generator

Precision Timing core with ~400 ps resolution

On-chip 3 V horizontal and RG drivers

General-purpose outputs (GPOs) for shutter and

system support

On-chip sync generator with external sync input

On-chip 1.8 V low dropout (LDO) regulator

105-ball, 8 mm × 8 mm CSP_BGA package

Product Applications

Digital still cameras

Product Specifications

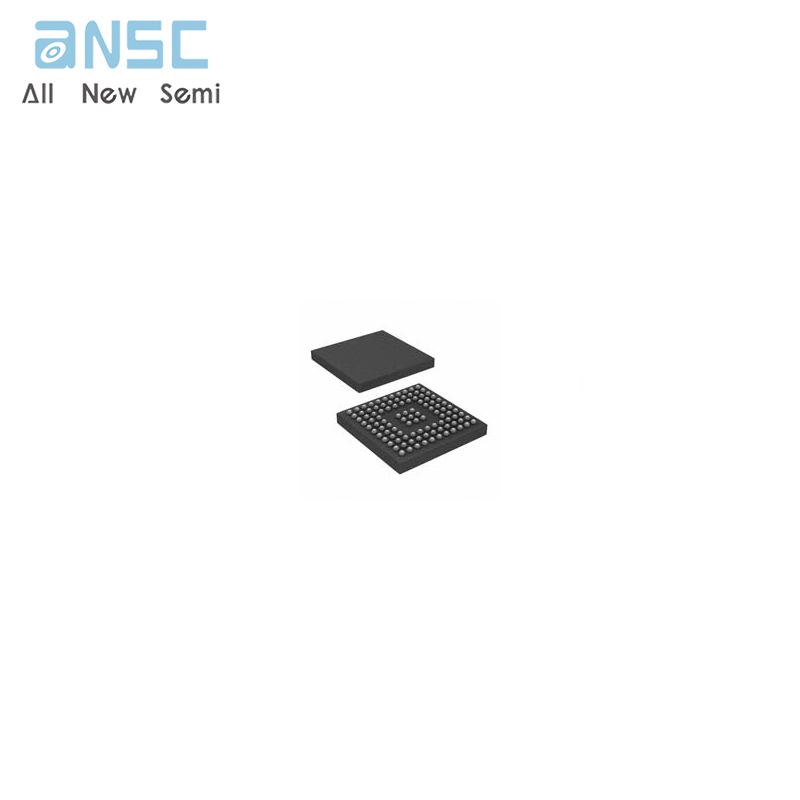

Product Photos

For more product information, please download the PDF
