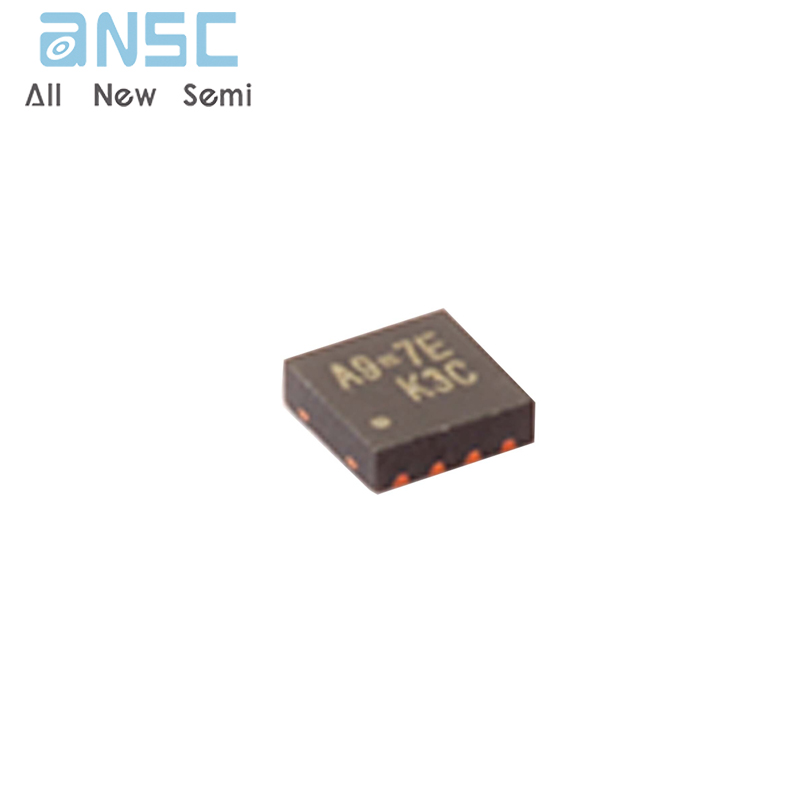

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce RT9186AGQV 2.5V to 5.5V Wide Input Range, Guaranteed 500mA Output Current QFN spot stock
Manufacturer Product Number
RT9186AGQV
Description
RT9186AGQV 2.5V to 5.5V Wide Input Range, Guaranteed 500mA Output Current QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The RT9186 is a low-dropout linear regulator providing up to 500mA load current with 160mV dropout. It is especially designed for the application of portable and smart handheld device.
The RT9186 operates from 2.5V to 5.5V supply. The internal P-MOSFET pass transistor allows the regulator to work with 190μA low quiescent current. Its preset output voltage version covers the most frequently used values, including 1.8V/2.5V/3.3V. Output voltage can also be adjusted via the ADJ pin for those other than the preset values.
With only 0.1μA required in the shut down mode, one enable pin is able to control output on/off. RT9186A contains PGOOD function. On the other hand, RT9186B contains RST function with 6ms (typ.) time delay.
Product Features
z 2.5V to 5.5V Wide Input Range
z Guaranteed 500mA Output Current
z Low 160mV Dropout at 500mA
z 1.8V/2.5V/3.3V Preset Output Voltage Version with Adjustable Range from 0.8V to 4.5V.
z Reset Output with 6ms (typ.) Delay Time
z Power Good Output
z Low 190μA Ground Pin Current
z 0.1μA Shutdown Current
z Thermal and Over Current Protection
z RoHS Compliant and 100 percent Lead (Pb)-Free
Product Applications
z Notebook Computer
z PDAs/SHDs
z PCMCIA/Cardbus Card Product
z Mobile Phone
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-RT9186AGQV |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Last Time Buy |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 4.5V |
| Voltage Dropout (Max) | 0.22V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 250 µA |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-VDFN (3x3) |
| Base Product Number | RT9186 |
