Hot-selling and scarce MAX24287ETK+ 1Gbps Parallel-to-Serial MII Converter 68TQFN spot stock

Product Descriptions

The   MAX24287   is   a  flexible,   low-cost   Ethernet interface conversion IC. The parallel interface can be configured for GMII, RGMII, TBI, RTBI , or 10/100 MII, while  the  serial  interface  can  be  configured  for 1.25Gbps   SGMII   or   1000BASE-X   operation.   In SGMII   mode ,   the   device   interfaces   directly   to Ethernet switch ICs, ASIC MACs , and 1000BASE-T electrical SFP modules.  In  1000BASE-X mode, the device interfaces directly to 1Gbps 1000BASE-X SFP optical modules. The MAX24287 performs automatic translation of link speed and duplex autonegotiation between parallel MII MDIO and the serial interface. Microprocessor   interaction   is  optional  for  device operation.    Hardware-configured    modes    supportSGMII   master   and   1000BASE-X   autonegotiation without software involvement.

This  device  is  ideal  for  interfacing  single-channel GMII/MII devices such as microprocessors, FPGAs, network processors, Ethernet-over-SONET or -PDH mappers,  and  TDM-over-packet  circuit  emulation devices.  The  device  also  provides  a  convenient solution to  interface such devices with electrical or optical Ethernet SFP modules.

Product Features

♦ Bidirectional Wire-Speed Ethernet Interface Conversion

♦ Can Interface Directly to SFP Modules and SGMII PHY and Switch ICs

♦ Serial Interface Configurable as 1000BASE-X or SGMII Revision 1.8 (4 -, 6-, or 8-Pin)

♦ Parallel Interface Configurable as GMII, RGMII,TBI, RTBI, or 10/100 MII

♦ Serial Interface Has Clock and Data Recovery Block (CDR) and Does Not Require a Clock Input

♦ Translates Link Speed and Duplex Mode Negotiation Between MDIO and SGMII PCS

♦ Supports 10/100 MII or RGMII Operation with SGMII Running at the Same Rate

♦ Configurable for 10/100 MII DTE or DCE Modes (i.e., Connects to PHY or MAC)

♦ Can Also Be Configured as General-Purpose 1:10 SerDes with Optional Comma Alignment

♦ Supports Synchronous Ethernet by Providing a 25MHz or 125MHz Recovered Clock and Accepting a Transmit Clock

♦ Can Provide a 125MHz Clock for the MAC to Use as GTXCLK

♦ Accepts 10MHz, 12.8MHz, 25MHz or 125MHz Reference Clock

♦ Can Be Pin-Configured at Reset for Many Common Usage Scenarios

♦ Optional Software Control Through MDIO Interface

♦ GPIO Pins Can Be Configured as Clocks, Status Signals and Interrupt Outputs

♦ 1.2V Operation with 3.3V I/O

♦ Small, 8mm x 8mm, 68-Pin TQFN Package

Product Applications

Any System with a Need to Interface a Component with a Parallel MII Interface (GMII, RGMII, TBI RTBI, 10/100 MII) to a Component with an SGMII or 1000BASE-X Interface

Switches and Routers

Telecom Equipment

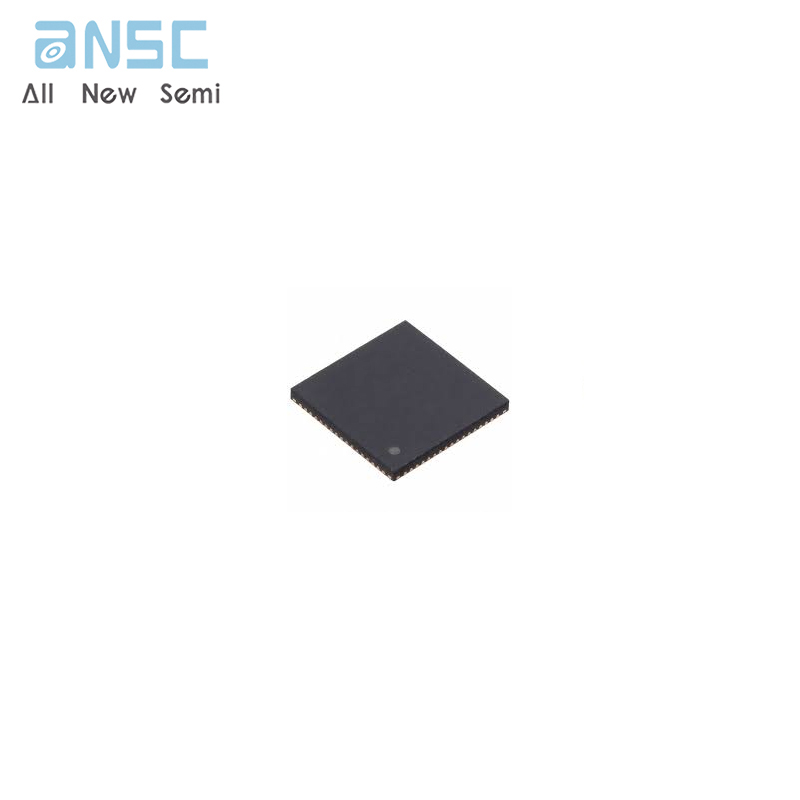

Product Photos
