Spot sales of AD9840AJSTZ Complete 10-Bit 40 MSPS CCD Signal Processor QFP48

Product Descriptions

The AD9840A is a complete analog signal processor for CCD applications. It features a 40 MHz single-channel architecture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays. The AD9840A’s signal chain consists of an input clamp, correlated double sampler (CDS), digitally controlled variable gain amplifier (VGA), black level clamp, and 10-bit A/D converter. Additional input modes are provided for processing analog video signals.

The internal registers are programmed through a 3-wire serial digital interface. Programmable features include gain adjustment, black level adjustment, input configuration, and power-down modes.

The AD9840A operates from a 3 V power supply, typically dissipates 155 mW, and is packaged in a 48-lead LQFP.

Product Features

40 MSPS Correlated Double Sampler (CDS)

4 dB  ± 6 dB Variable CDS Gain with 6-Bit Resolution

2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)

Low Noise Clamp Circuits

Analog Preblanking Function

10-Bit 40 MSPS A/D Converter

Auxiliary Inputs with VGA and Input Clamp

3-Wire Serial Digital Interface

3 V Single Supply Operation

Low Power: 155 mW @ 3.0 V Supply

48-Lead LQFP Package

Product Applications

Digital Video Camcorders

Digital Still Cameras

Industrial Imaging

Product Specifications

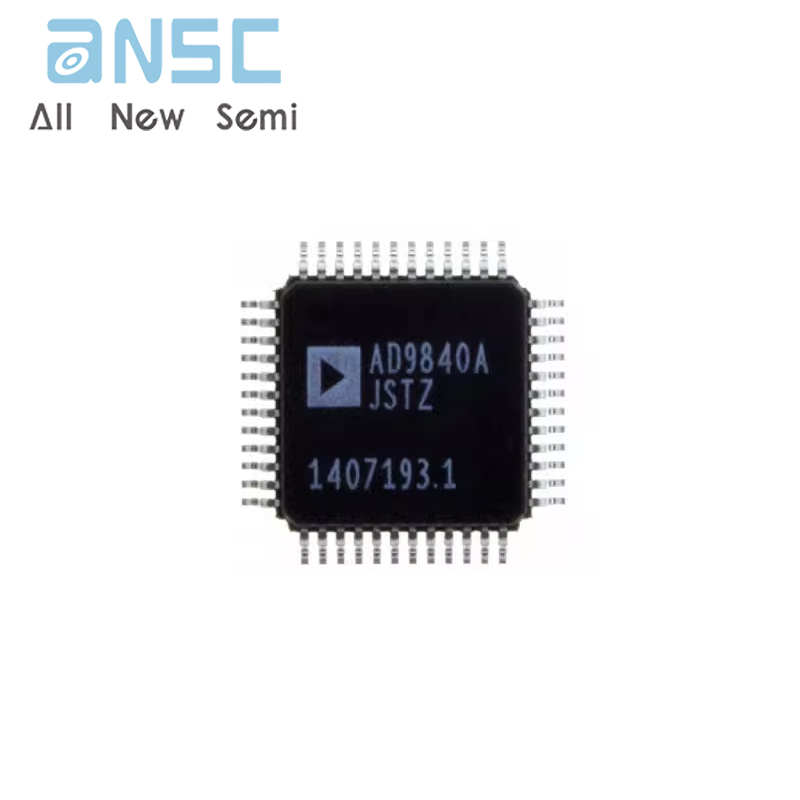

Product Photos

For more product information, please download the PDF
