Hot-selling and scarce MC10H158FNR2 Quad 2−Input Multiplexer(Non−Inverting) PLCC20 spot stock
Manufacturer Product Number
MC10H158FNR2
Description
MC10H158FNR2 Quad 2−Input Multiplexer(Non−Inverting) PLCC20 spot stock
Package Condition
TaPe & Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC10H158 is a quad two channel multiplexer with common input select. A “high” level select enables input D00, D10, D20 and D30 and a “low” level select enables input D01, D11, D21 and D31. This MECL 10H™ part is a functional/pinout duplication of the standard MECL 10K™ family part, with 100% improvement in propagation delay and no increase in power−supply current.
Product Features
• Propagation Delay, 1.5 ns Typical
• Power Dissipation, 197 mW Typical
• Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
• Voltage Compensated
• MECL 10K Compatible
• Pb−Free Packages are Available*
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC10H158FNR2 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| cms-filter-header-series | 10H |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Type | Multiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | -4.94V ~ -5.46V |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| cms-filter-header-bpn | 10H158 |

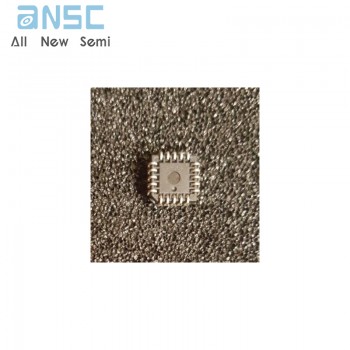

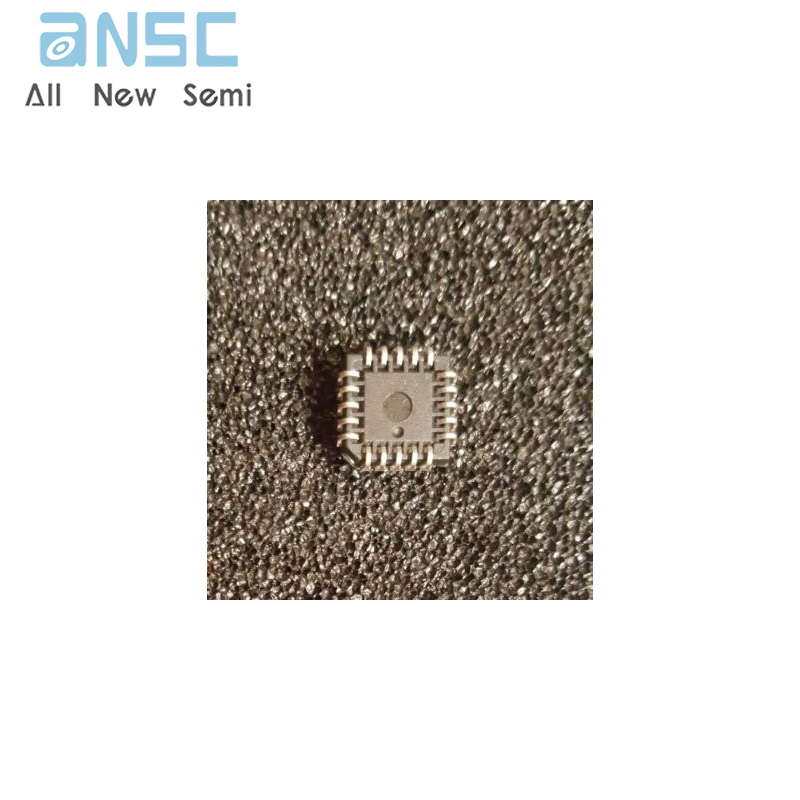

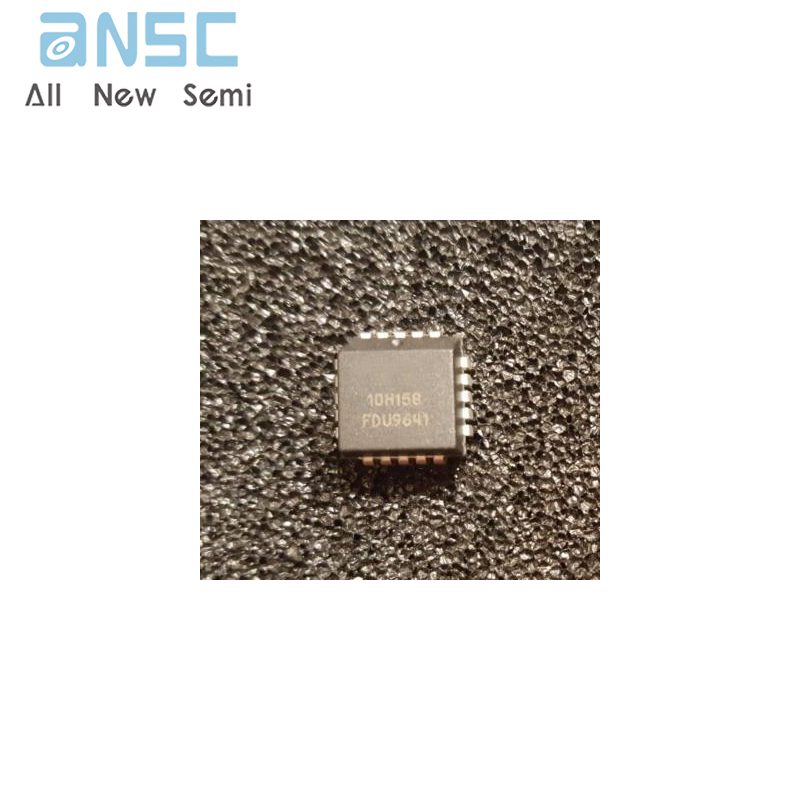

Product Photos
、
For more product information, please download the PDF
