Hot-selling and scarce ATF16V8B-15PC Highperformance EE Programmable Logic Device 20-PDIP spot stock

Product Descriptions

The ATF16V8B is a high-performance CMOS (electricallyerasable) programmable logic device (PLD) that utilizes Atmel’s proven electrically-erasable Flash memory technology. Speeds down to 7.5 ns  are offered. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ±5% for commercial temperature ranges.

Several low-power options allow selection of the best solution for various types of power-limited applications. Each of

these options significantly reduces total system power and enhances system reliability.

The ATF16V8Bs incorporate a superset of the generic architectures, which allows direct replacement of the 16R8 family and most 20-pin combinatorial PLDs.  Eight outputs are each allocated eight product terms . Three different modes of operation, configured automatically with software, allow highly complex logic functions to be realized.

Product Features

•  Industry-standard Architecture

– Emulates Many 20-pin PALs®

– Low-cost Easy-to-use Software Tools

•  High-speed Electrically-erasable Programmable Logic Devices

– 7.5 ns Maximum Pin-to-pin Delay

•  Several Power Saving Options

•  CMOS and TTL Compatible Inputs and Outputs

– Input and I/O Pull-up Resistors

•  Advanced Flash Technology

– Reprogrammable

– 100% Tested

•  High-reliability CMOS Process

– 20 Year Data Retention

– 100 Erase/Write Cycles

– 2,000V ESD Protection

– 200 mA Latchup Immunity

•  Commercial, and Industrial Temperature Ranges

•  Dual-in-line and Surface Mount Packages in Standard Pinouts

•  PCI-compliant

Product Specification

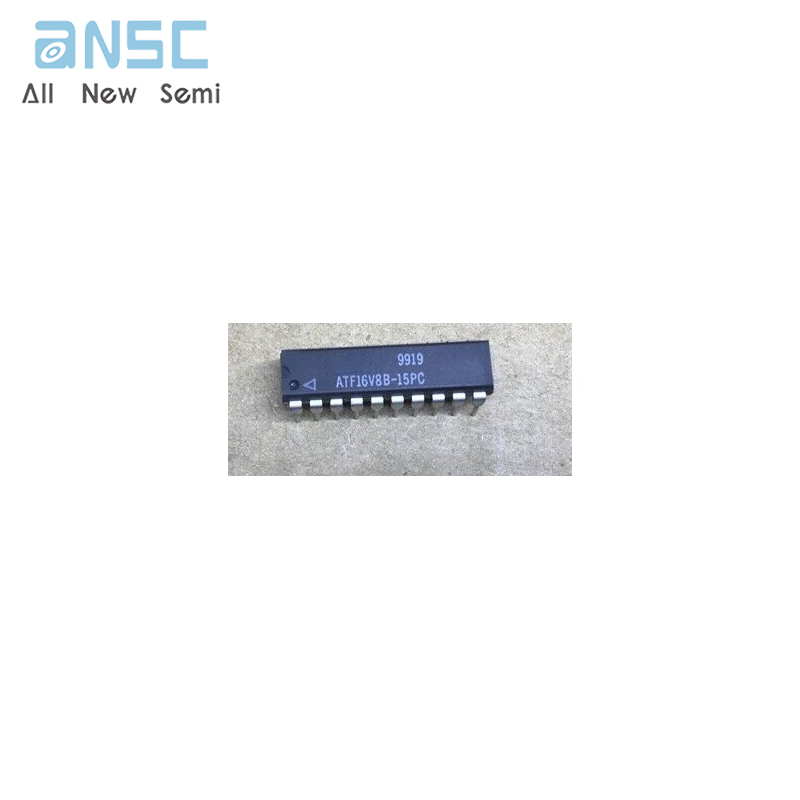

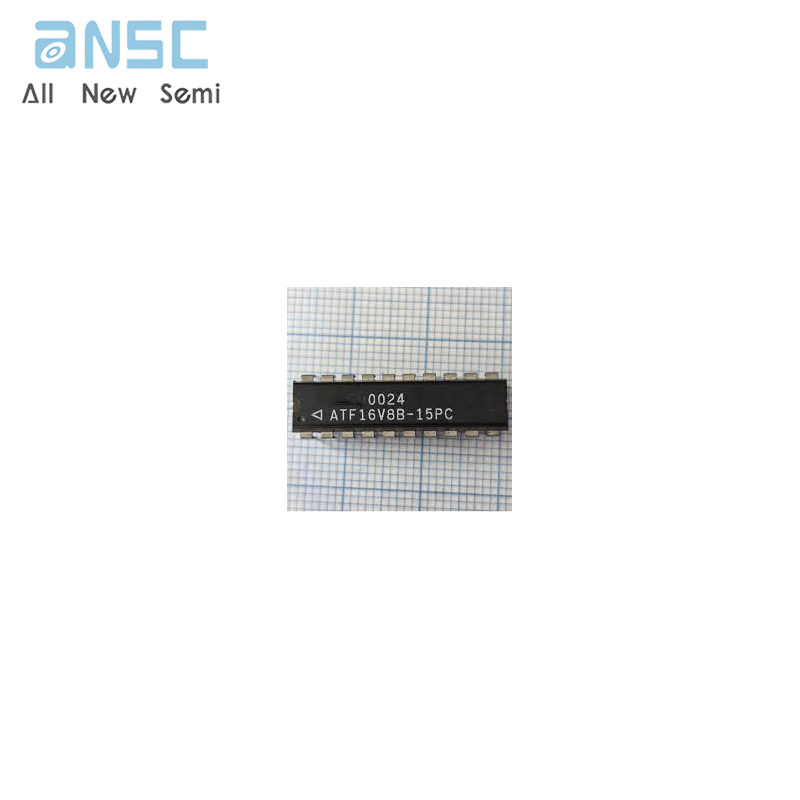

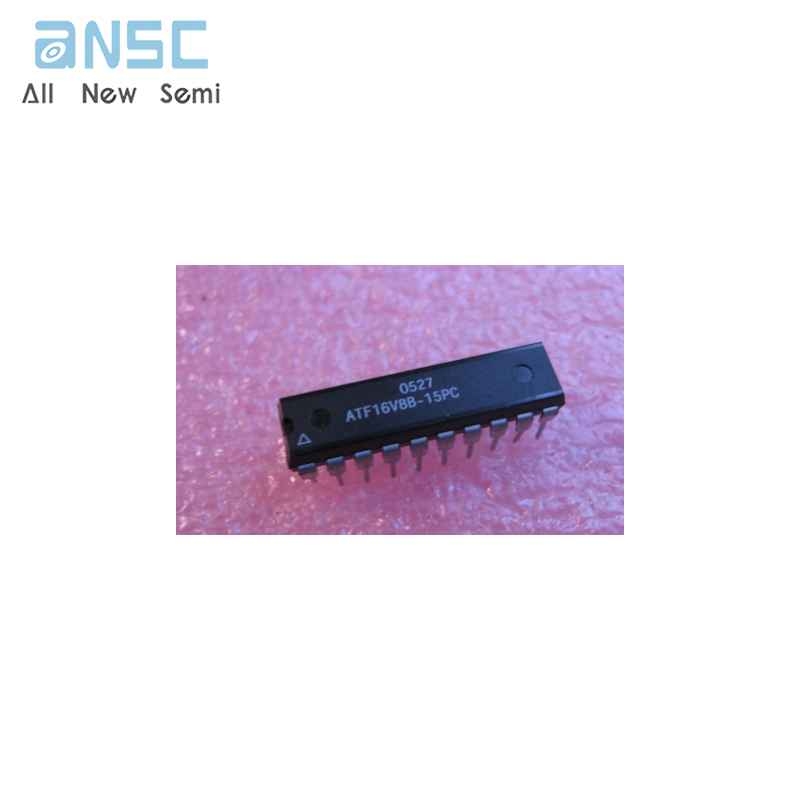

Product Photos

For more product information, please download the PDF
