Hot-selling and scarce UDA1384H Multichannel audio coder-decoder QFP spot stock

Product Descriptions

The UDA1384 is a single-chip consisting of 4 plus 1 Analog-to-Digital Converters (ADC) and 6 Digital-to-Analog Converters (DAC) with signal processing features employing bitstream conversion techniques. The multichannel configuration makes the device eminently suitable for use in digital audio equipment which incorporates surround feature.

The UDA1384 supports conventional 2 channels per line data transfer conformable to the I2 S-bus format with word lengths of up to 24 bits, the MSB-justified format with word lengths of up to 24 bits and the LSB-justified format with word lengths of 16 bits, 20 bits and 24 bits, as well as 4 channels to 6 channels per line transfer mode. The device also supports a combination of the MSB-justified output format and the LSB-justified input format. The UDA1384 has special sound processing features in the Direct Stream Digital(DSD) playback mode, de-emphasis, volume and mute which can be controlled via the L3-bus or I2 C-bus interface.

Product Features

■  2.7 V to 3.6 V power supply

■  5 V tolerant digital inputs

■  24-bit data path

■  Selectable control: via L3-bus or I2 C-bus microcontroller interface

■  Supports sample frequency ranges for:

◆ Audio ADC: fs = 16 kHz to 100 kHz

◆ Voice ADC: fs = 7 kHz to 50 kHz

◆ Audio DAC: fs = 16 kHz to 200 kHz

■  Separate power control for ADC and DAC

■  ADC plus integrated high-pass filter to cancel DC offset

■  Integrated digital filter plus DAC

■  Slave mode only applications

■  Easy application

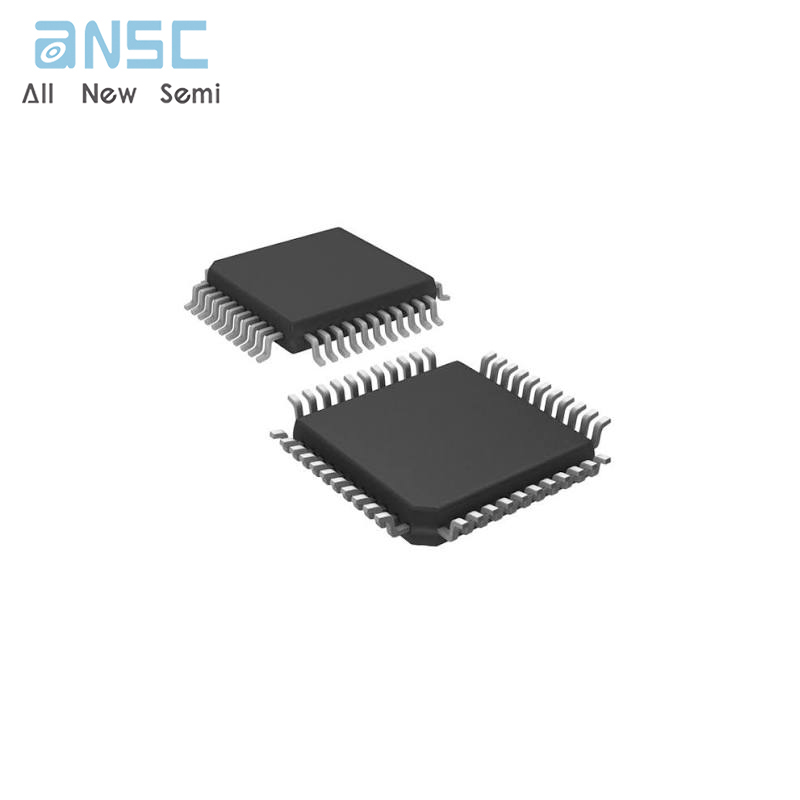

Product Photos

For more product information, please download the PDF
