Hot-selling and scarce ADXL337XCPZ Small, Low Power, 3-Axis ±3 g Accelerometer LFCSP-16 spot stock

Product Descriptions

The ADXL337 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tiltsensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

The user selects the bandwidth of the accelerometer using the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for X and Y axes and a range of 0.5 Hz to550 Hz for the Z axis.

The ADXL337 is available in a small,low profile, 3 mm × 3 mm ×1.45 mm, 16-lead,lead frame chip scale package (LFCSP_LQ).

Product Features

3-axis sensing

Small, low profile package

3 mm × 3 mm × 1.45 mm LFCSP

Low power: 300 μA (typical)

Single-supply operation: 1.8 V to 3.6 V

10,000 g shock survival

Excellent temperature stability

Bandwidth adjustment with a single capacitor per axis

RoHS/WEEE and lead-free compliant

Product Applications

Cost-sensitive, low power, motion-and tilt-sensing applications

Mobile devices

Gaming systems

Disk drive protection

Image stabilization

Sports and health devices

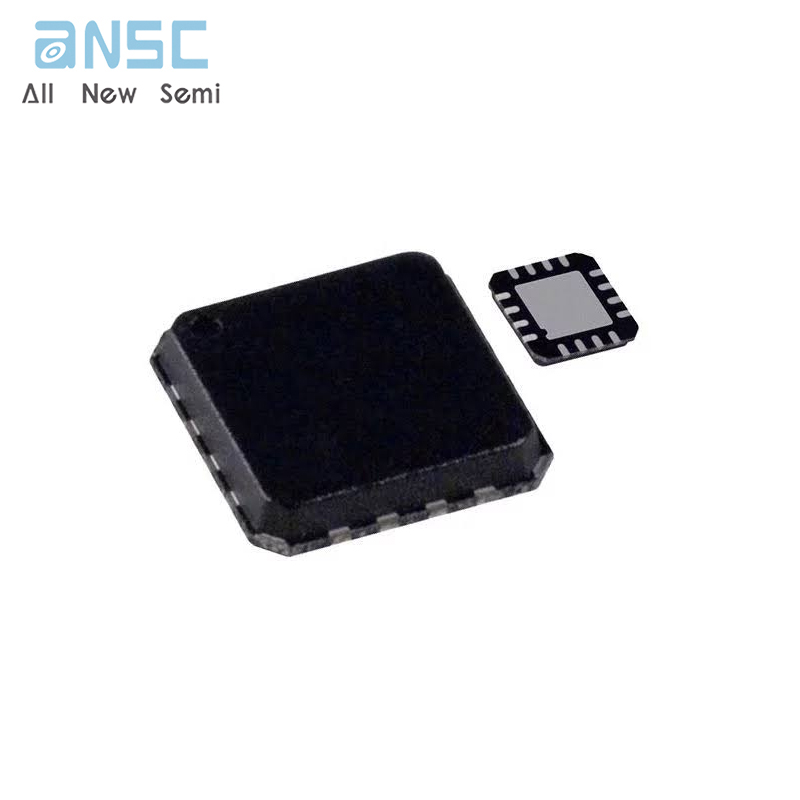

Product Photos

For more product information, please download the PDF
