ADP3338AKC-2.5 High-Accuracy Ultralow IQ, 1 A, anyCAP Low Dropout Regulator SOT223 spot stock

Product Descriptions

The ADP3338 is a member of the ADP33xx family of precisionlow dropout anyCAP voltage regulators . The ADP3338 operates with an input voltage range of 2.7 V to 8 V and delivers aload current up to 1 A . The ADP3338 stands out from theconventional LDOs with a novel architecture and an enhancedprocess that enables it to offer performance advantages andhigher output current than its competition . Its patented designrequires only a 1 µF output capacitor for stability . This deviceis insensitive to output capacitor Equivalent Series Resistance(ESR), and is stable with any good quality capacitor, includingceramic (MLCC) types for space-restricted applications . TheADP3338 achieves exceptional accuracy of ±0.8% at roomtemperature and ±1.4% over temperature, line and load variations . The dropout voltage of the ADP3338 is only 190 mV(typical) at 1 A . This device also includes a safety current limitand thermal overload protection . The ADP3338 has ultralowquiescent current 110 µA (typical) in light load situations .

Product Features

High Accuracy Over Line and Load: 0.8% @ 25C,

1.4% Over Temperature

Ultralow Dropout Voltage: 190 mV (Typ) @ 1 A

Requires Only CO = 1 F for Stability

anyCAP = Stable with Any Type of Capacitor

(Including MLCC)

Current and Thermal Limiting

Low Noise

2.7 V to 8 V Supply Range

–40C to +85C Ambient Temperature Range

SOT-223 Package

Product Applications

Notebook, Palmtop Computers

SCSI Terminators

Battery-Powered Systems

Bar Code Scanners

Camcorders, Cameras

Home Entertainment Systems

Networking Systems

DSP/ASIC Supply

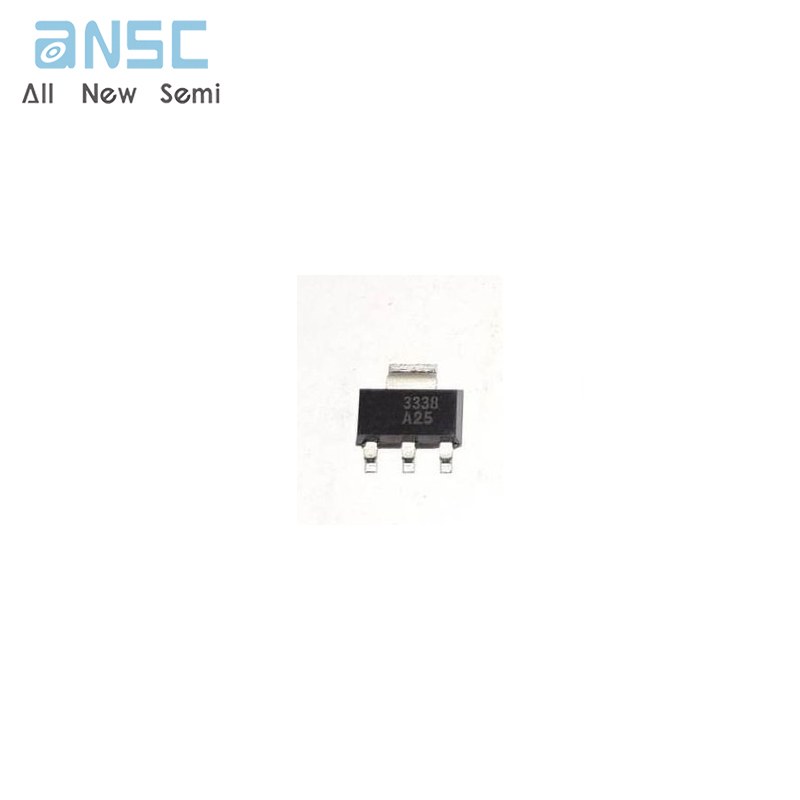

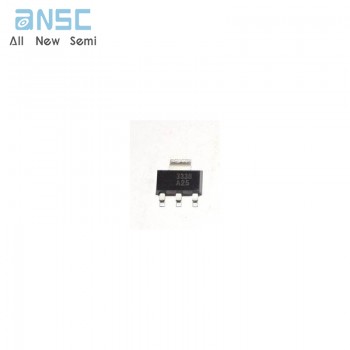

Product Photos

For more product information, please download the PDF
