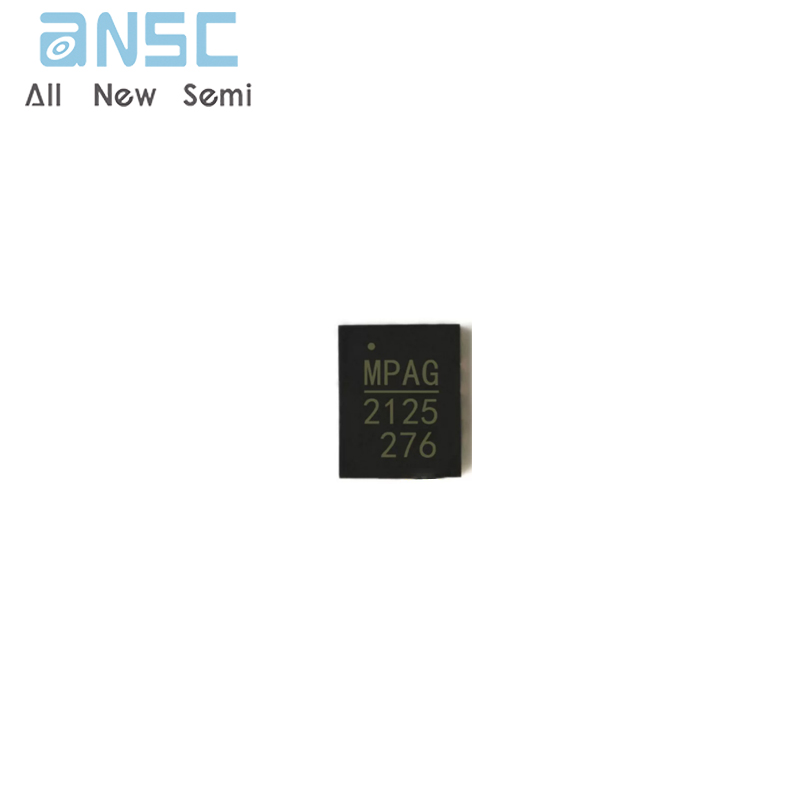

Hot-selling and scarce MP2125DL-LF-Z Dual 1.5A, 1.2MHz Synchronous Step-Down Converter QFN
Manufacturer Product Number
MP2125DL-LF-Z
Description
MP2125DL-LF-Z Dual 1.5A, 1.2MHz Synchronous Step-Down Converter QFN
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP2125 is a fully integrated dual PWM step-down converter with built-in internal power MOSFETs. It is ideal for powering portable equipment that runs from a single cell LithiumIon (Li+) Battery, with an input range from 2.7V to 6V. The MP2125 can provide up to 1.5A of load current with output voltage as low as 0.8V for each output. It can also operate at 100 percent duty cycle for low dropout applications.
With peak current mode control and internal compensation, the MP2125 is stable with ceramic capacitors and small inductors.
Fault condition protection includes cycle-bycycle current limiting and thermal shutdown.
MP2125 is available in the small 14-pin 3mmx4mm QFN package.
Product Features
• 2.7V-6V Input Operation Range
• Each Output Adjustable from 0.8V to VIN
• 1uA Shutdown Current
• Up to 92 percent Efficiency
• 100 percent Duty Cycle for Low Dropout Applications
• Fixed 1.2MHz Frequency
• Stable with Low ESR Output Ceramic Capacitors
• Cycle-by-Cycle Over Current Protection
• Thermal Shutdown
• Short Circuit Protection
• Available in 14-pin 3mmx4mm QFN package
Product Applications
• Solid State Disk
• DVD+/-RW Drivers
• Smart Phones
• PDAs
• Digital Cameras
• Portable Instruments
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2125DL-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 6V |
| Current - Output | 1.5A |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFDFN Exposed Pad |
| Supplier Device Package | 14-QFN (3x4) |
| Base Product Number | MP2125 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
MP2125DL-LF-Z Dual 1.5A, 1.2MHz Synchronous Step-Down Converter QFN
5000In stock:
Can ship immediately
