Hot Original 3224W-1-104E TRIMMER 100KOHM 0.25W J LEAD TOP 1/4W Surface Mount Trimmer Potentiometer Cermet Top Adjustment

Product Details

Product Description:

The 3224W-1-104E is a surface-mount, vertical trimmer potentiometer designed for a wide range of applications. This Trimpot? 3224 series is a sealed, cermet-based potentiometer with a linear taper and a resistance value of 100kOhm. The component features a top-adjustable actuator and a J-hook termination style.

Features:

• Adjustment Type: Top-adjustable actuator for easy adjustment

• Construction: Sealed, cermet-based trimmer potentiometer

• Contact Plating: Tin-plated contacts for corrosion resistance

• Insulation Resistance: 100 MOhm for high insulation

• Operating Temperature Range: -65°C to 150°C for wide temperature tolerance

• Power Dissipation: 250mW for efficient power handling

• Packaging:

• Tape and reel (TR) packaging with embossed reels for easy handling

Applications:

• Primary Applications: Audio equipment, medical devices, industrial control systems, and automotive electronics

• Secondary Applications: Consumer electronics, telecommunications equipment, and aerospace systems

Product Description

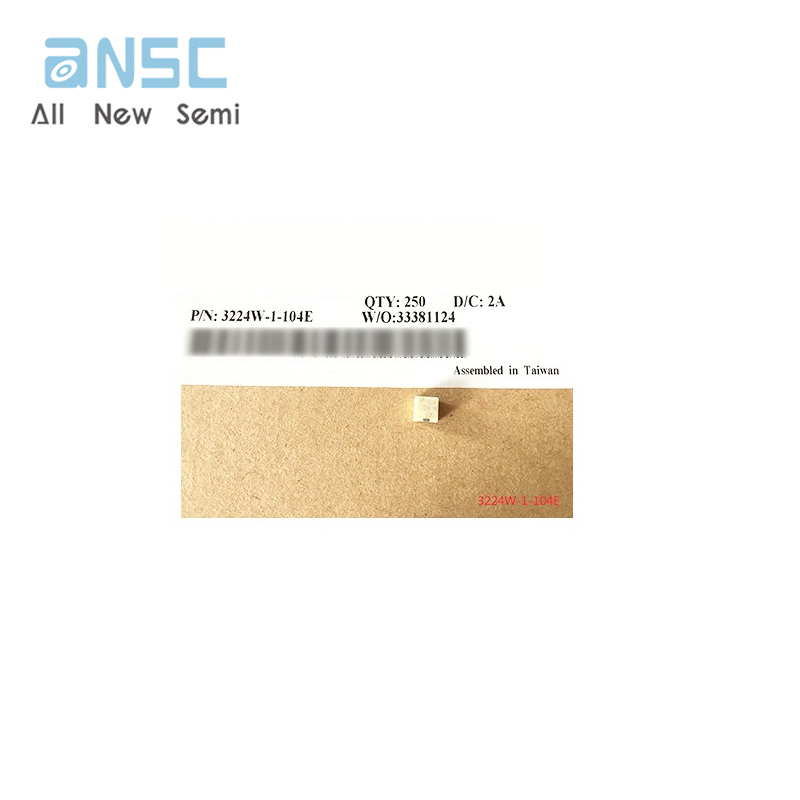

Actual image of the product

​

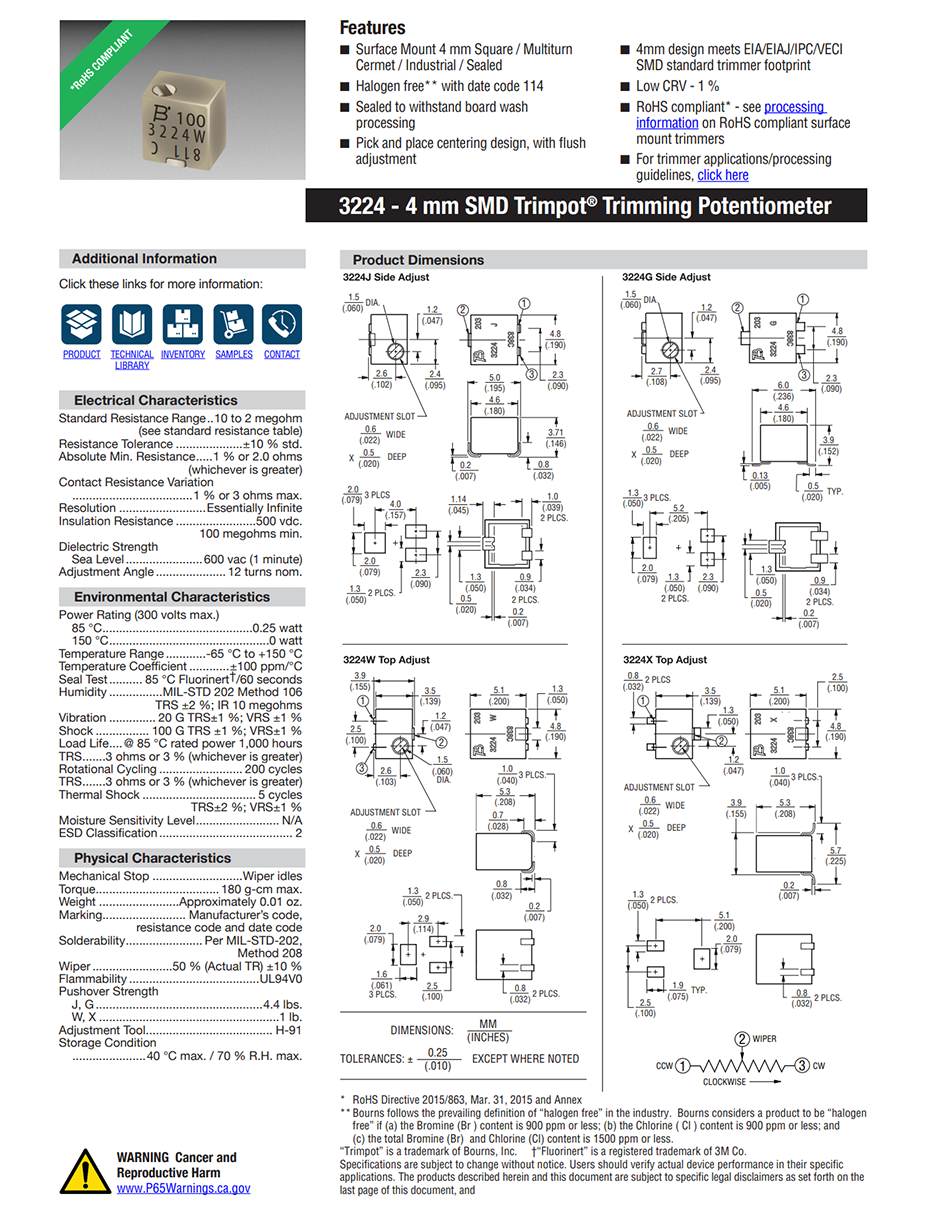

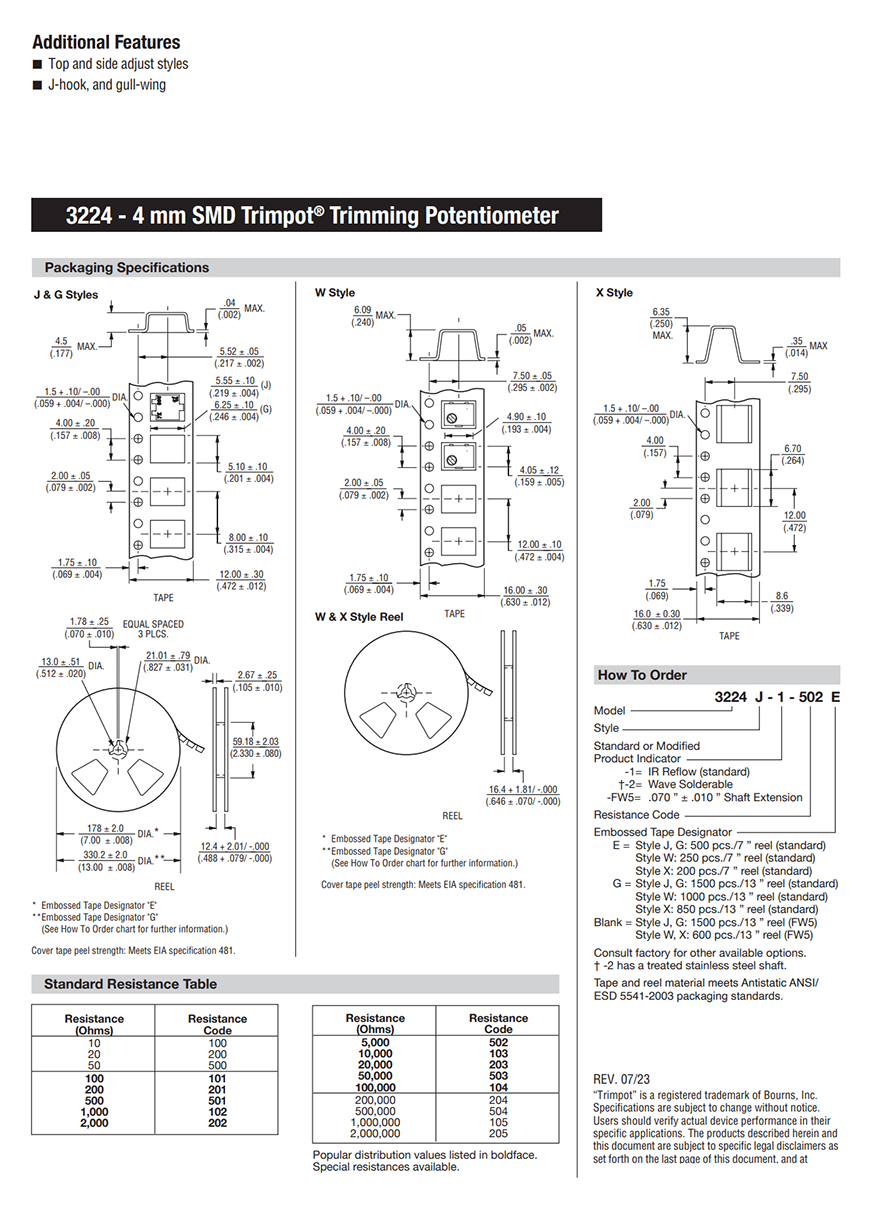

Product datasheet

For more information, please download
