Hot sale original 3224W-1-102E 1 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Manufacturer
Manufacturer Product Number
3224W-1-102E
Description
3224W-1-102E Trimmer Potentiometers TRIMMER 1K OHM 0.25W J LEAD TOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
Product Details
Features
■ Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
■ Halogen free** with date code 114
■ Sealed to withstand board wash processing
■ Pick and place centering design, with flush adjustment
■ 4mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint
■ Low CRV - 1 %
■ RoHS compliant* - see processing information on RoHS compliant
surface mount trimmers
■ For trimmer applications/processing guidelines, click here
Product Description
| TYPE# | DESCRIPTION |
| ANSC PART# | ANSC- 3224W-1-102E |
| Category | Potentiometers, Variable Resistors |
| Trimmer Potentiometers | |
| Manufacturer | Bourns |
| Series | Trimpot® 3224 - Sealed |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Resistance | 1 kOhms |
| Power (Watts) | 0.25W, 1/4W |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Number of Turns | 12 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Cermet |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Size / Dimension | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
| Base Product Number | 3224W |

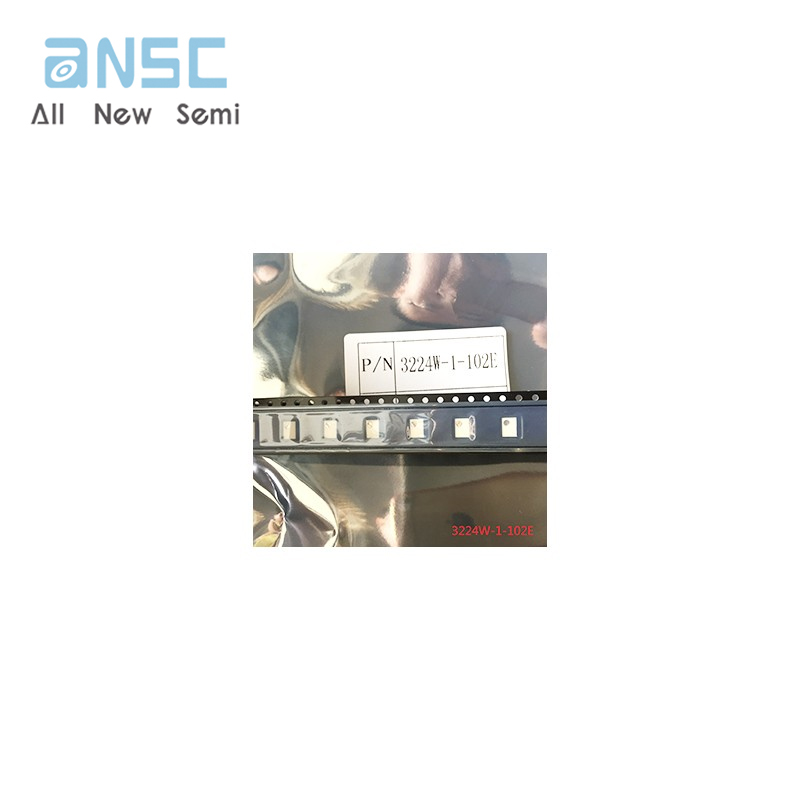

Product Photos

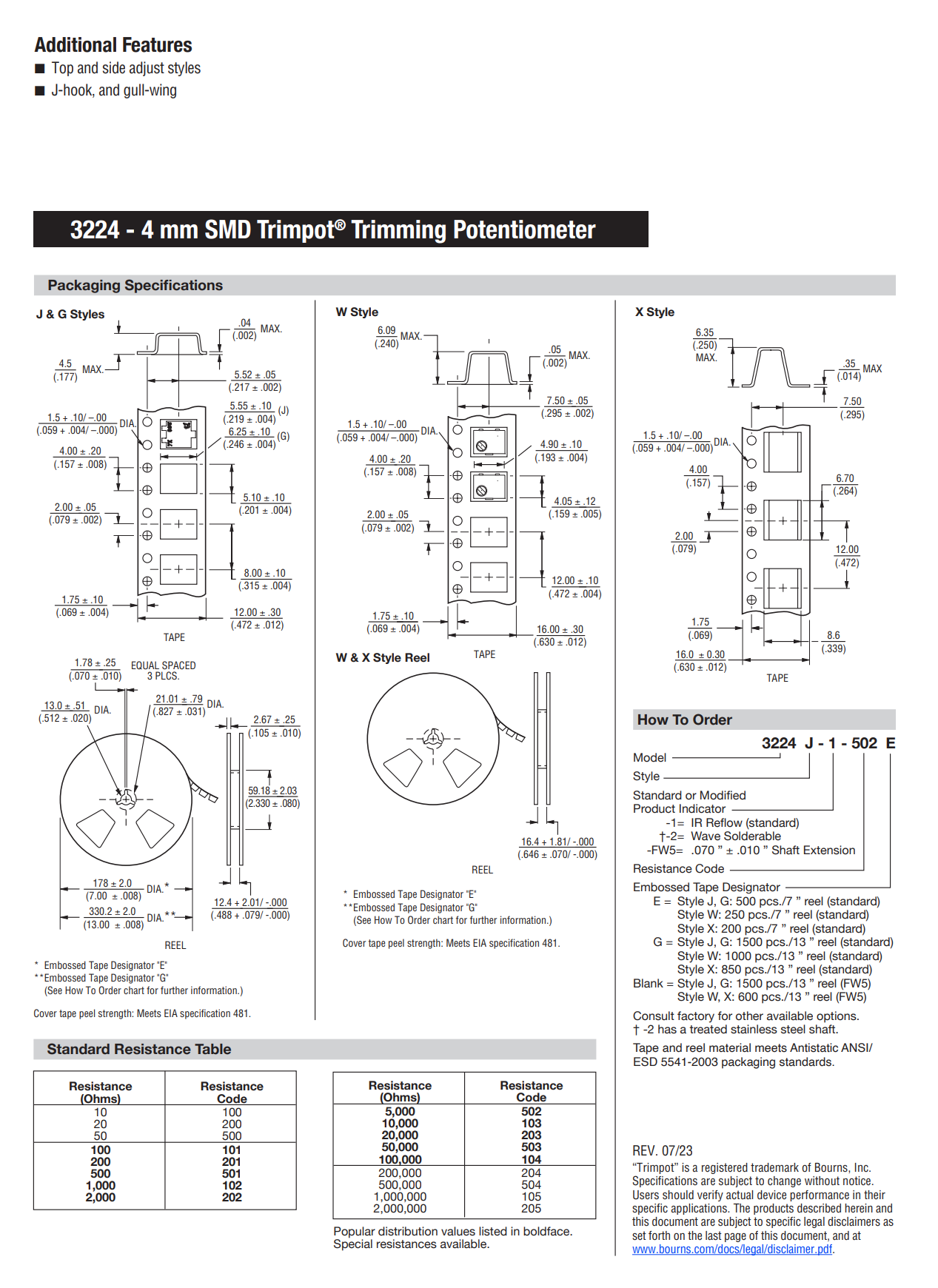

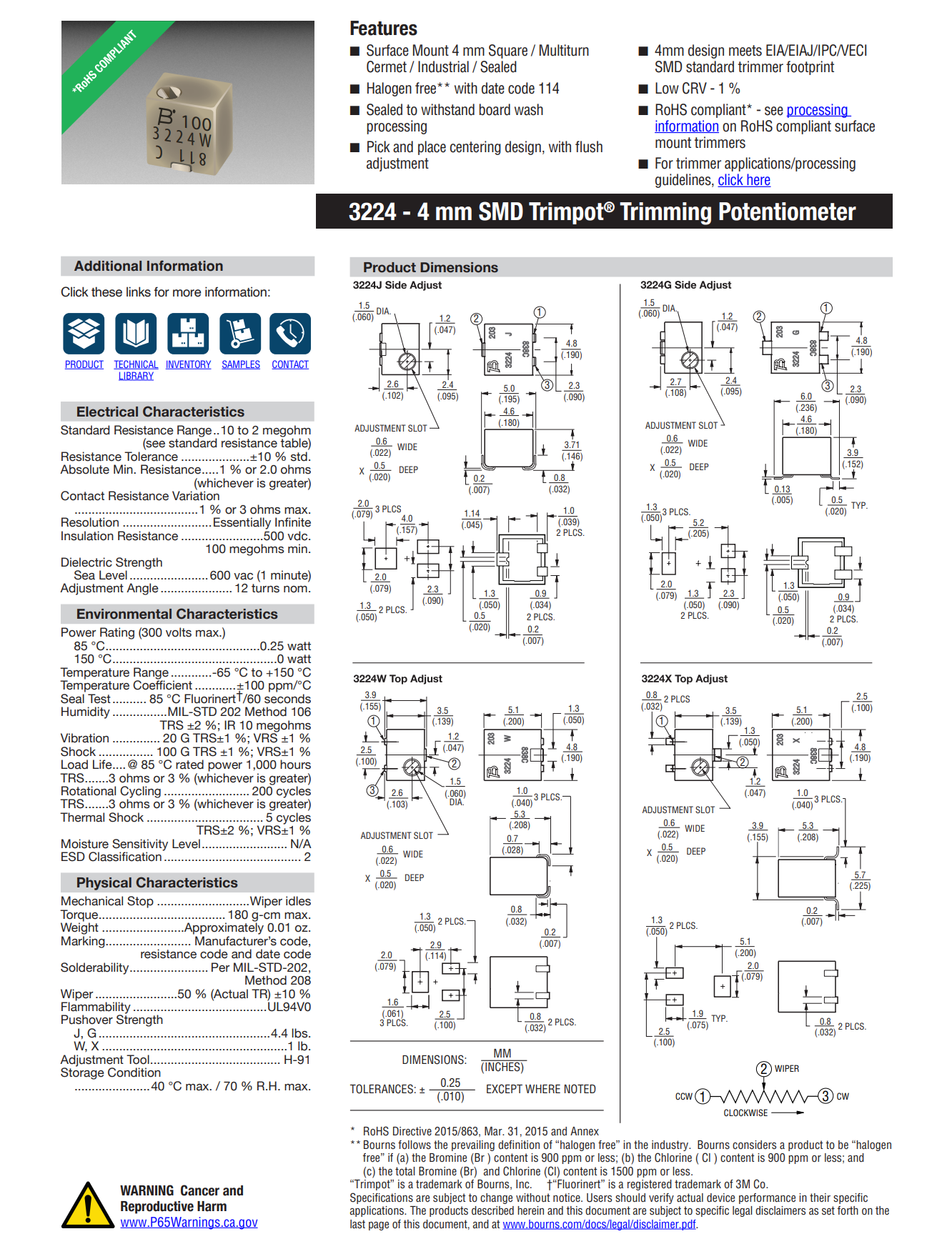

Product datasheet
