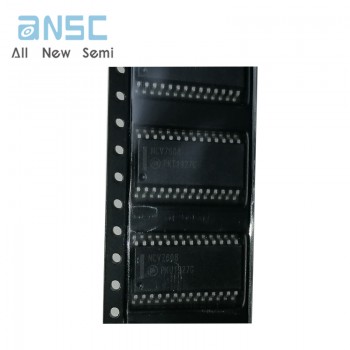

One stop electronic component supply NCV7608DQR2G Octal Configurable Low/High Side Driver Relays Power MOSFET 36-SSOP-EP

Product Descriptions

The NCV7608 integrates 8 output drivers configurable in any combination of high−side, low−side, or H−Bridge configurations. The integrated

standard Serial Peripheral Interface (SPI) allows digital control of all output stages and provides diagnostic fault information. In addition, four

channels (#5−8) can be PWM controlled via external control input pins.

Integrated clamping circuits (both in high and low−side operational modes), waveshaping, positive and negative transient protection, and

dedicated channel pair overtemperature shutdown circuits provide for a wide range of automotive and industrial applications.

Product Features

• Eight Independent Configurable Drivers

• RDS(on) = 1.2  (typ @25°C)

• SPI Interface for Data Communication

♦ 16 Bit Frame Length, Daisy Chain Compatible

♦ 3.3 V/5 V Compatible

♦ Frame Detection

• PWM Inputs for 4 Outputs

• Ultra−low Standby Current

• Over Current Protection

♦ Characterized to AEC Q10X−12−REV A

• High−Side and Low−Side Flyback Protection

• Fault Repoting

• Undervoltage Lockout (VS and VCC)

• Overvoltage Shutdown (VS)

• Supports LED Loads

• Supports Cold Cranking Operation Down to 3 V

• Overtemperature Protection

• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

• These are Pb−Free Devices

Product Typical Applications

• Automotive

• Industrial

• Relay Drive

• DC Motor Drive

• LED Drive
