Hot sale original MC7812ABD2TR4G IC REG LINEAR 12V 1A D2PAK Linear Voltage Regulator IC Positive Fixed 1 Output 1A D2PAK-3
Manufacturer Product Number
MC7812ABD2TR4G
Description
MC7812ABD2TR4G IC REG LINEAR 12V 1A D2PAK Linear Voltage Regulator IC Positive Fixed 1 Output 1A D2PAK-3
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents. • Output Current in Excess of 1.0 A • No External Components Required • Internal Thermal Overload Protection • Internal Short Circuit Current Limiting • Output Transistor Safe−Area Compensation • Output Voltage Offered in 2% and 4% Tolerance • Available in Surface Mount D2PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages • NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes • Pb−Free Packages are Available |
Product Description
| Type | Description |
| ANSC PART# | ANSC - MC7812ABD2TR4G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| PSRR | 60dB (1kHz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK-3 |
| Base Product Number | MC7812 |

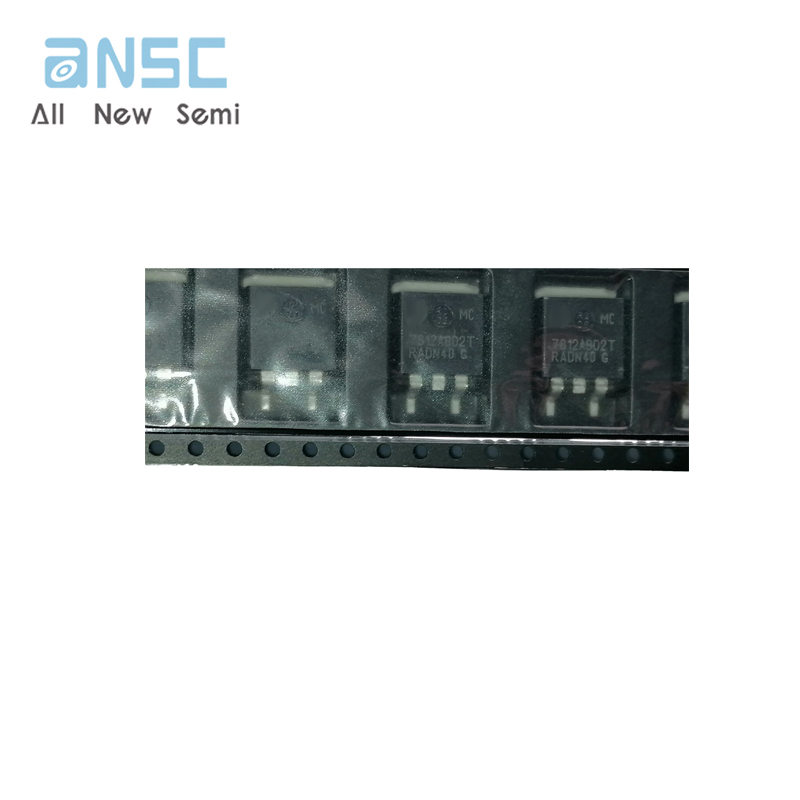

Actual image of the product

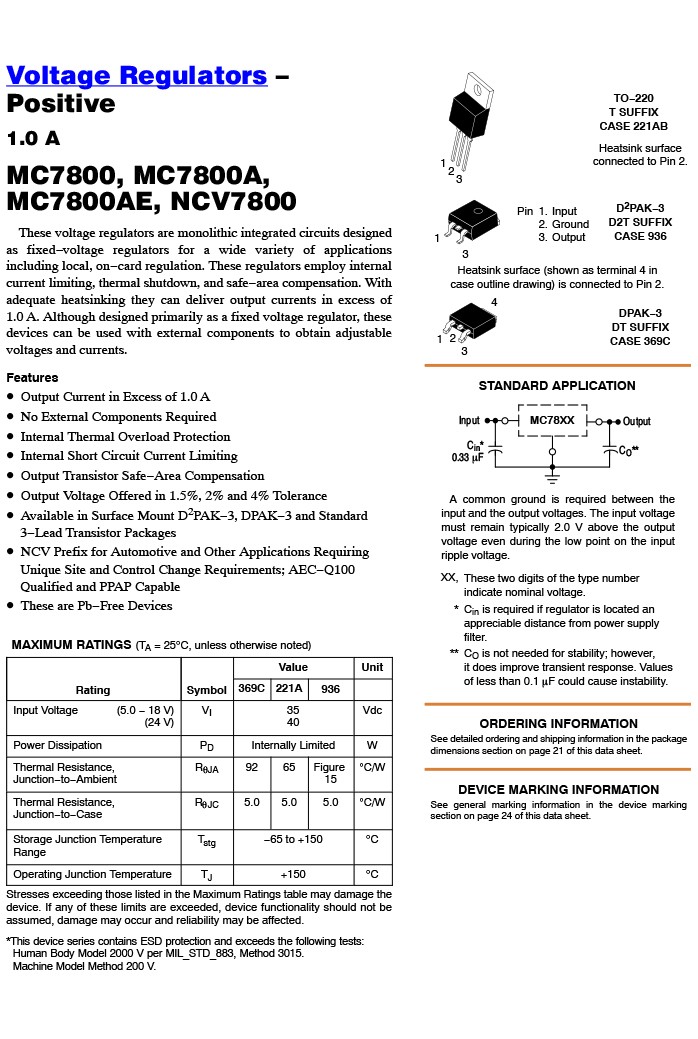

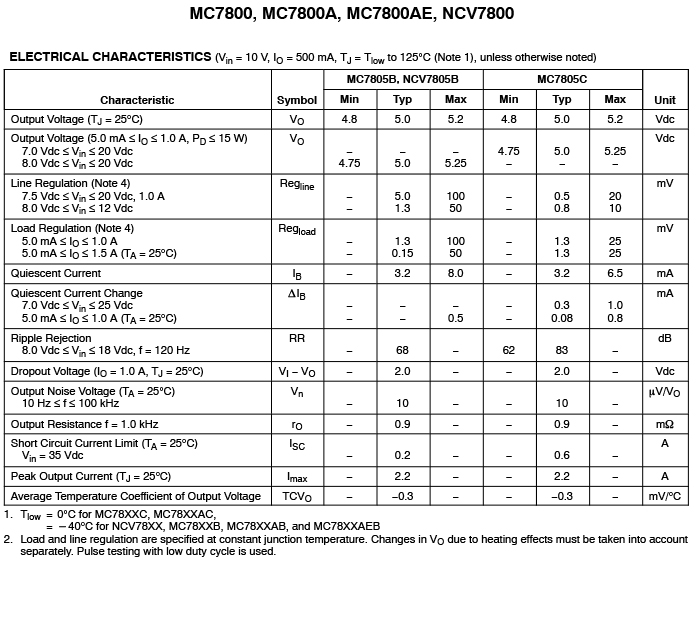

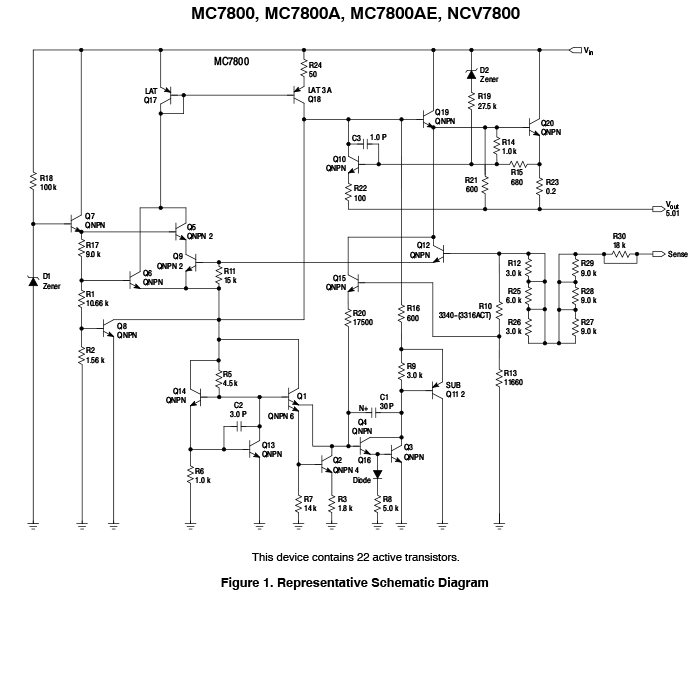

Product datasheet
