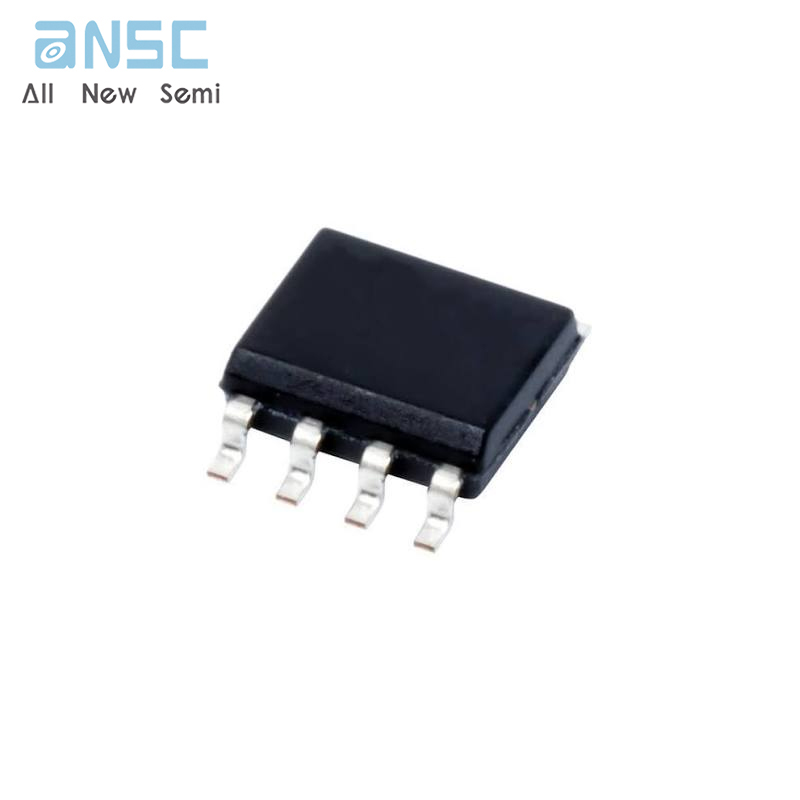

Hot-selling and scarce TPS3705-30DR Processor Supervisory Circuits With Power-Fail SOP8 spot stock

Product Descriptions

The  TPS370x-xx  family  of  microprocessor  supplyvoltage  supervisors  provide  circuit  initialization  and timing supervision, primarily for DSP and processorbased systems.

During power-on, RESET is asserted when the supply voltage V _DD  becomes higher than 1.1 V. Thereafter, the supply voltage supervisor monitors V DD and keeps RESET  active  as  long  as  V _DD   remains  below  the threshold voltage VIT+. When the supply voltage drops below the threshold voltage VIT–, the output becomes active   (low)   again.   No   external   components   are required. All the devices of this family have a fixedsense threshold voltage VIT– set by an internal voltage divider.

The product spectrum is designed for supply voltages of 2.5 V, 3 V, 3.3 V, and 5 V. The circuits are available in  either  8-pin  MSOP  or  standard  SOIC  packages. The   TPS370x-xx   devices   are   characterized   for operation over a temperature range of −40°C to 85°C.

Product Features

•    Power-on reset generator with fixed delay time of 200 ms (no external capacitor needed)

•    Precision supply voltage monitor: 2.5 V, 3 V,3.3 V, and 5 V

•    Pin-for-pin compatible with the MAX705 through MAX708 Series

•    Integrated watchdog time (TPS3705-xx Only)

•   Voltage monitor for power-fail or low-battery warning

•    Maximum supply current of 50 µA

•   8-Pin MSOP and 8-Pin SOIC packages

•   Temperature range:–40°C to 85°C (–40°C to 125°C for TPS3705-33)

Product Applications

•    Designs using DSPs, microcontrollers, or microprocessors

•    Industrial equipment

•    Programmable controls

•   Automotive systems

•    Portable or battery powered equipment

•    Intelligent instruments

•   Wireless communication systems

•    Notebook or desktop computers

Product Specification

Product Photos

For more product information, please download the PDF
