Hot sale Original LTC3788EUH PBF IC REG CTRLR BOOST 32QFN Boost Regulator Positive Output Step-Up DC-DC Controller IC 32-QFN
Manufacturer Product Number
LTC3788EUH#PBF
Description
LTC3788EUH#PBF IC REG CTRLR BOOST 32QFN Boost Regulator Positive Output Step-Up DC-DC Controller IC 32-QFN (5x5)
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Features Synchronous Operation for Highest Efficiency and Reduced Heat Dissipation Wide Input Range: 4.5V to 38V (40V Abs Max) and Operates Down to 2.5V After Start-Up Output Voltages Up to 60V ±1 1.2V Reference Voltage RSENSE or Inductor DCR Current Sensing 100 Duty Cycle Capability for Synchronous MOSFET Low Quiescent Current: 125μA Phase-Lockable Frequency (75kHz to 850kHz) Programmable Fixed Frequency (50kHz to 900kHz) Selectable Current Limit Adjustable Output Voltage Soft-Start Power Good Output Voltage Monitors Low Shutdown Current IQ: <8μA Internal LDO Powers Gate Drive from VBIAS or EXTVCC Thermally Enhanced Low Profile 32-Pin 5mm × 5mm QFN Package |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LTC3788EUH#PBF |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 105kHz ~ 760kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | LTC3788 |

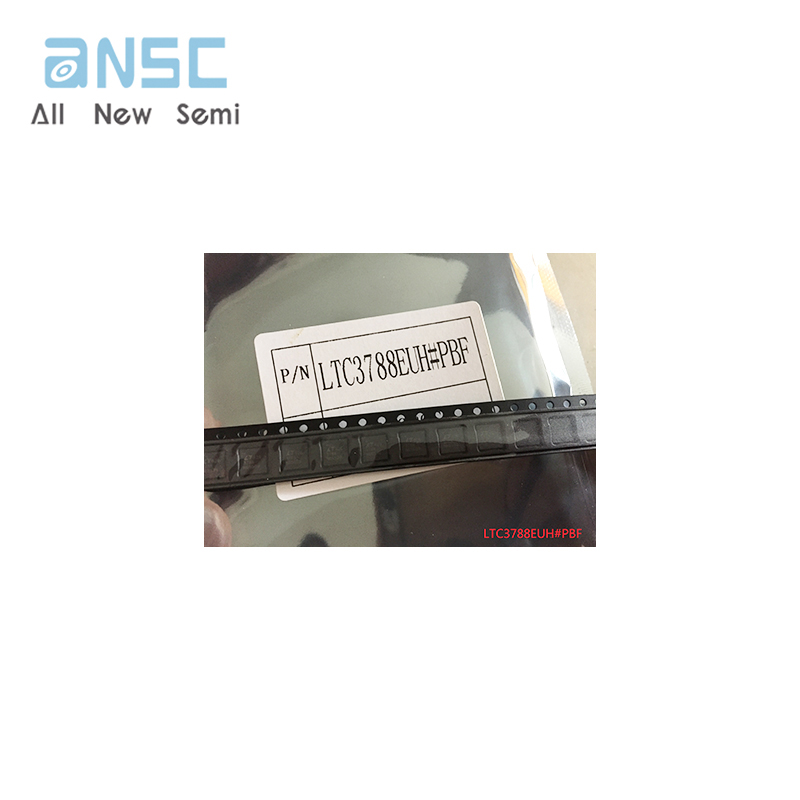

Product Photos

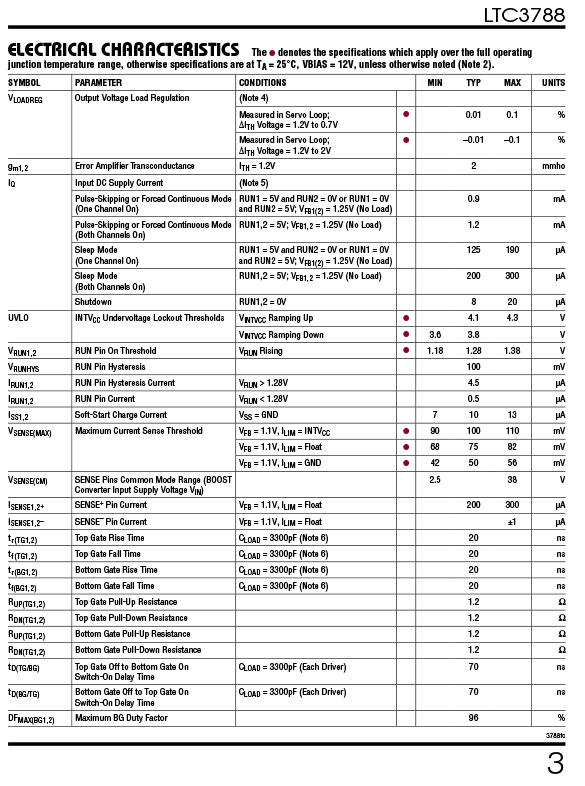

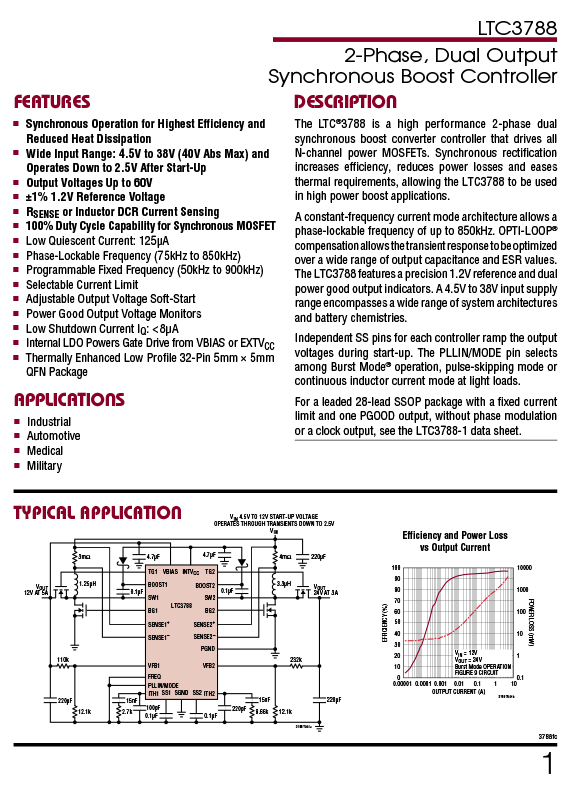

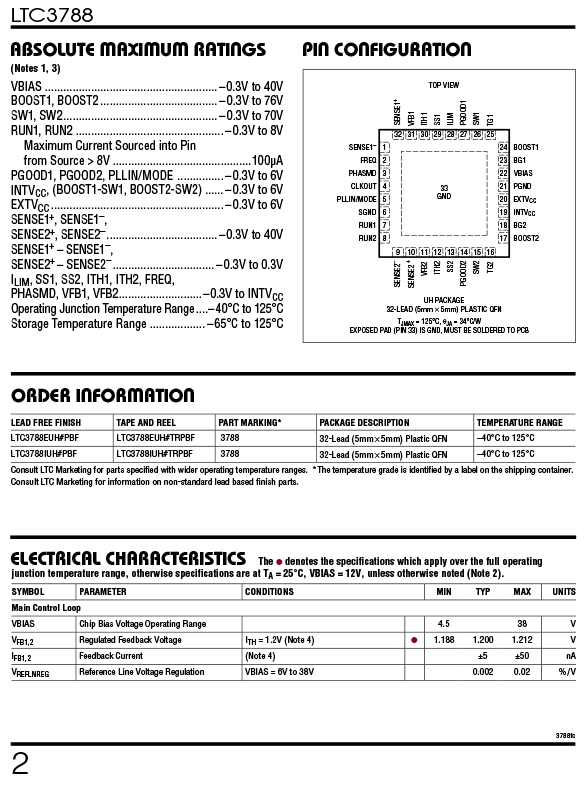

Product datasheet
For more information, please download
