Hot sale Original IFX9201SGAUMA1 IC HALF BRIDGE DRIVER 6A 12DSO Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET

Manufacturer Product Number
IFX9201SGAUMA1
Description

IFX9201SGAUMA1 IC HALF BRIDGE DRIVER 6A 12DSO Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET PG-DSO-12-17

Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Description
The IFX9201SG is a general purpose 6 A H-Bridge, designed for the control of DC motors or other inductive loads. The outputs can be pulse width modulated at frequencies up to 20kHz. PWM/DIR control reduces the number of PWM capable pins needed on the microcontroler side.


Features
• RDSon of 100 mΩ per switch typ. at Tj=25 °C
• Logic inputs 3.3 V and 5.0 V TTL/CMOS-compatible
• Low standby current
• Chopper current limitation
• Short circuit shut down with latch behavior
• Overtemperature shut down with latch behavior
• VS undervoltage shutdown
• Open load detection in ON and OFF state
• Detailed SPI diagnosis or simple error flag
• Green product (RoHS compliant)

Product Description

Type Description
ANSC PART# ANSC- IFX9201SGAUMA1
Category Integrated Circuits (ICs)
Power Management (PMIC)
Full, Half-Bridge (H Bridge) Drivers
Manufacturer Original
Series -
Packaging Tape & Reel (TR)
Cut Tape (CT)
/
Part Status Active
Output Configuration Half Bridge (2)
Applications DC Motors, General Purpose
Interface PWM, SPI
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 100mOhm LS, 100mOhm HS
Current - Output / Channel 6A
Current - Peak Output -
Voltage - Supply 5V ~ 36V
Voltage - Load 5V ~ 36V
Operating Temperature -40°C ~ 125°C (TJ)
Features -
Fault Protection Current Limiting, Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type Surface Mount
Package / Case 12-BSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package PG-DSO-12-17
Base Product Number IFX9201

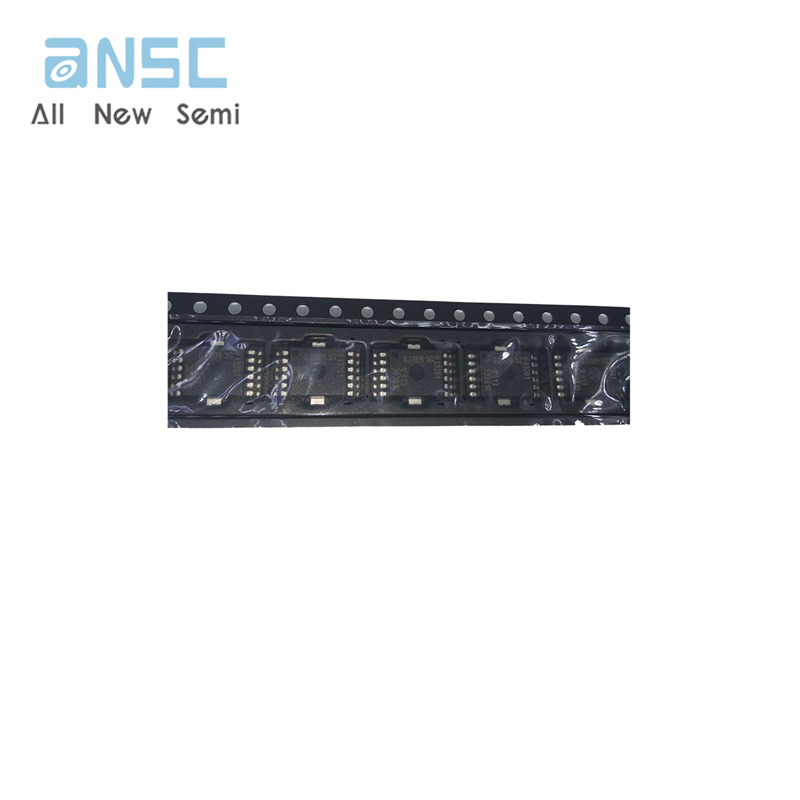

Actual image of the product

IFX9201SGAUMA1

Product datasheet

For more information, please download
