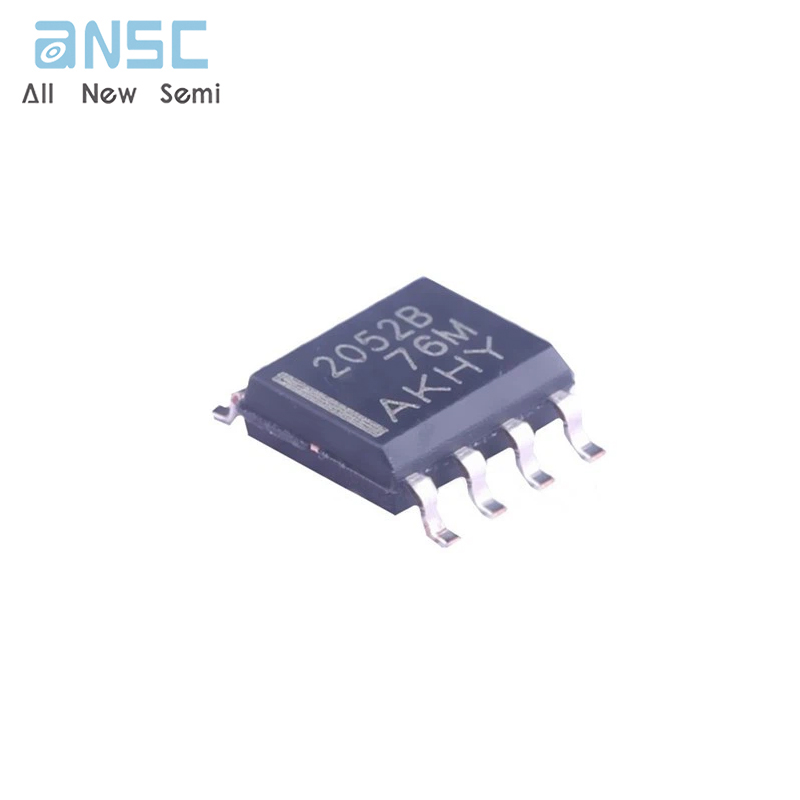

Hot-selling and scarce TPS2052BDR Current-Limited Power-Distribution Switches SOP8 spot stock

Product Descriptions

The    TPS20xxB    power-distribution    switches    are intended  for  applications  where   heavy  capacitive loads and short circuits are likely to be encountered. These    devices    incorporates    70mΩ    N-channel MOSFET    power   switches   for    power-distribution systems  that   require   multiple   power  switches   in a  single  package.  Each  switch  is  controlled  by  a logic  enable  input.  Gate  drive  is  provided  by  an internal charge pump designed to control the powerswitch  rise times and fall times to  minimize current surges during switching. The charge  pump  requires no  external  components  and  allows  operation  from supplies as low as 2.7V.

When   the   output   load   exceeds   the   current-limit threshold or a short is present, the device limits the output  current  to  a  safe  level  by  switching  into  a constant-current mode, pulling the overcurrent ( OCx) logic output  low. When continuous  heavy overloads and short  circuits  increase the  power dissipation  in the switch, causing the junction temperature to rise, a  thermal  protection  circuit  shuts  off  the  switch  to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal  circuitry  ensures  that  the  switch  remains off  until  valid  input  voltage  is  present.  This  powerdistribution switch is designed to set current limit at1A (typical).

Product Features

•    70mΩ High-Side MOSFET

•   500mA Continuous Current

•   Thermal and Short-Circuit Protection

•   Accurate Current Limit

(0 .75A Minimum, 1.25A Maximum)

•    Operating Range: 2.7V to 5.5V

•   0.6ms Typical Rise Time

•    Undervoltage Lockout

•    Deglitched Fault Report ( OC)

•    No OC Glitch During Power Up

•    Maximum Standby Supply Current:

1μA (Single, Dual) or 2μA (Triple, Quad)

•   Ambient Temperature Range:–40°C to 85°C

•    UL Recognized, File Number E169910

•   Additional UL Recognition for TPS2042B and

TPS2052B for Ganged Configuration

Product Applications

•    Heavy Capacitive Loads

•   Short-Circuit Protections

Product Specification

Product Photos

For more product information, please download the PDF
