Hot-selling and scarce MP2104DJ-1.8-LF-Z 1.7MHz 600mA Synchronous Step-Down Converter SOT23

Product Descriptions

The MP2104 is a 1.7MHz constant frequency, current mode, PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. The MP2104 can supply 600mA of load current from a 2.5V to 6V input voltage. The output voltage for the MP2104DJ can be regulated as low as 0.6V, while the output voltages of the MP2104DJ-1.5 and MP2104DJ-1.8 are fixed at 1.5V and 1.8V, respectively. The MP2104 can also run at 100 percent duty cycle for low dropout applications.

The MP2104 is available in a low profile (1mm) 5-pin, TSOT package.

Product Features

• High Efficiency: Up to 95 percent

• 1.7MHz Constant Switching Frequency

• 600mA Available Load Current

• 2.5V to 6V Input Voltage Range

• Output Voltage as Low as 0.6V

• 100 percent Duty Cycle in Dropout

• Current Mode Control

• Short Circuit Protection

• Thermal Fault Protection

• <0.1µA Shutdown Current

• 1.5V and 1.8V Fixed Output Versions

• Space Saving 5-Pin TSOT23 Package

Product Applications

• Cellular and Smart Phones

• Microprocessors and DSP Core Supplies

• PDAs

• MP3 Players

• Digital Still and Video Cameras

• Portable Instruments

Product Specification

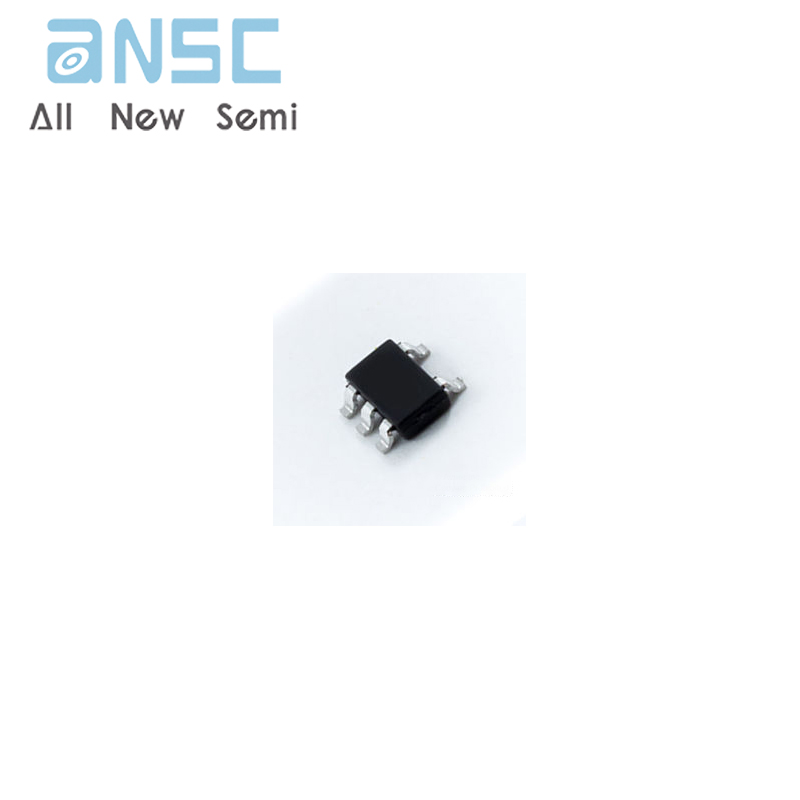

Product Photos

​

For more product information, please download the PDF
