Hot sale Original LMZ14203TZ-ADJ IC Power Circuit SWITCHING REGULATOR, 1000kHz SWITCHING FREQ-MAX 4.57MM HEIGHT TO-PMOD 7 PIN

Manufacturer Product Number

LMZ14203TZ-ADJ

Description

Original LMZ14203TZ-ADJ IC Power Circuit SWITCHING REGULATOR, 1000kHz SWITCHING FREQ-MAX, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, TO-PMOD, 7 PIN

Package Condition

Tape & Reel (TR)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Input voltage range 85...264 V AC 1, 2 or 3 isolated outputs up

to 48 V DC 4 kV AC I/O electric strength test voltag

electrical and mechanical design

• Outputs individually controlled with excellent dynamic properties

• Operating ambient temperature range –40...71°C with convection cooling

Product Description

Type#	Description
ANSC PART#	ANSC- LMZ14203TZ-ADJ
Ihs Manufacturer	Original
Part Package Code	SIP
Package Description	HSOP, SMSIP7H,.55,50
Pin Count	7
Reach Compliance Code	Unknown
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 6V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	CONSTANT ON TIME
Input Voltage-Max	32 V
Input Voltage-Min	6 V
Input Voltage-Nom	24 V
JESD-30 Code	R-PSSO-G7
Length	10.16 mm
Number of Functions	1
Number of Terminals	7
Operating Temperature-Max	125 °C
Operating Temperature-Min	-40 °C
Output Current-Max	3 A
Output Voltage-Max	6 V
Output Voltage-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	HSOP
Package Equivalence Code	SMSIP7H,.55,50
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG
Qualification Status	Not Qualified
Seated Height-Max	4.67 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1000 kHz
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	SINGLE
Width	9.85 mm

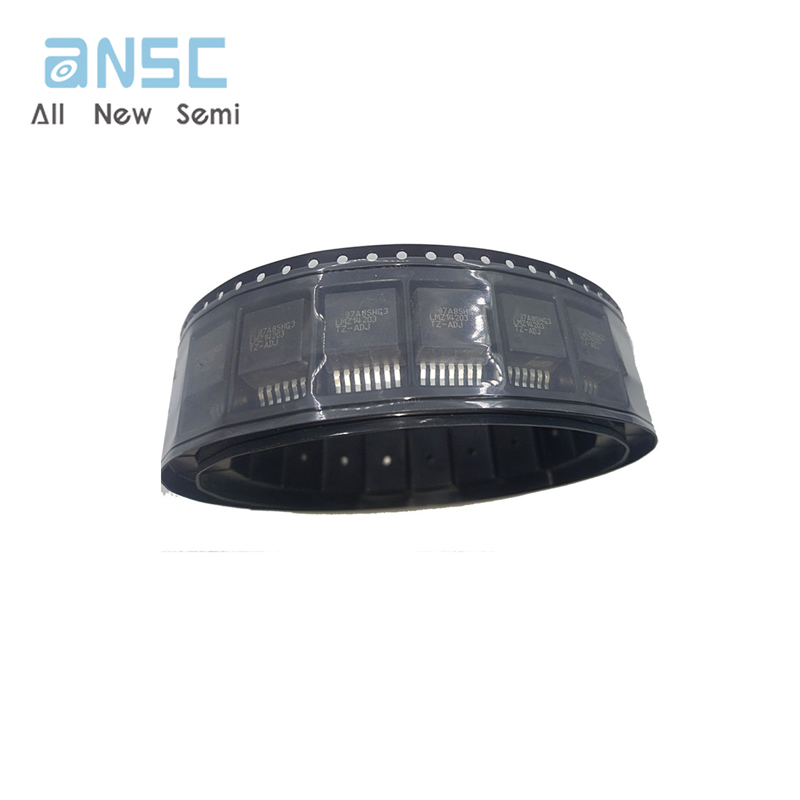

Actual image of the product

LMZ14203TZ-ADJ

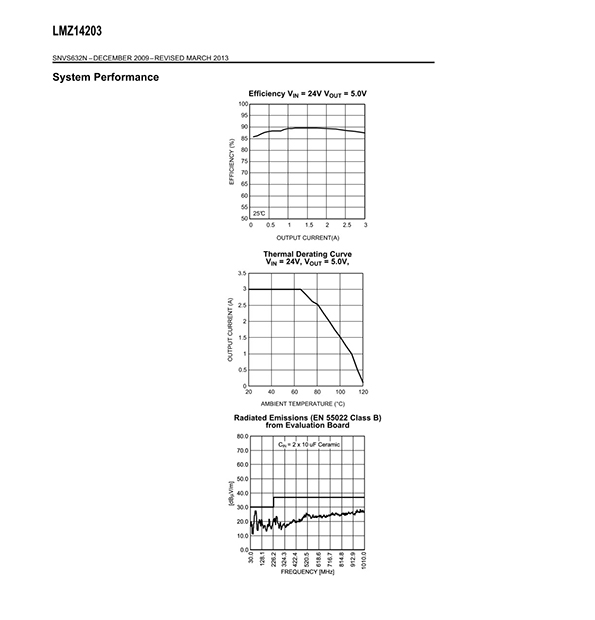

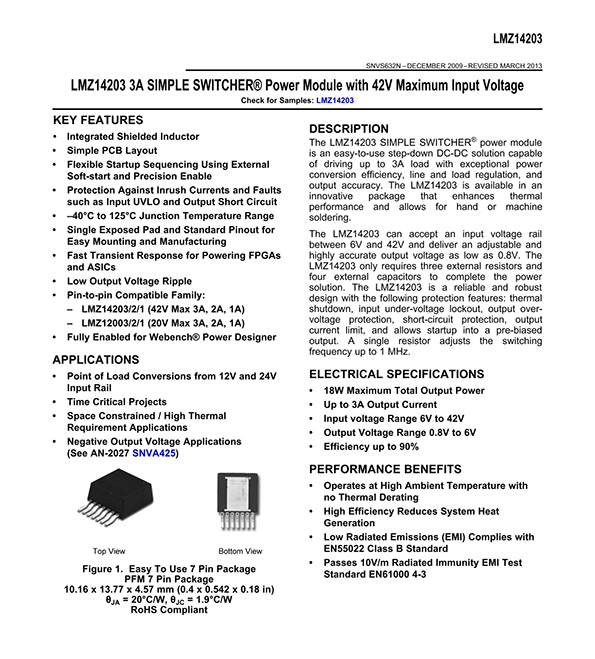

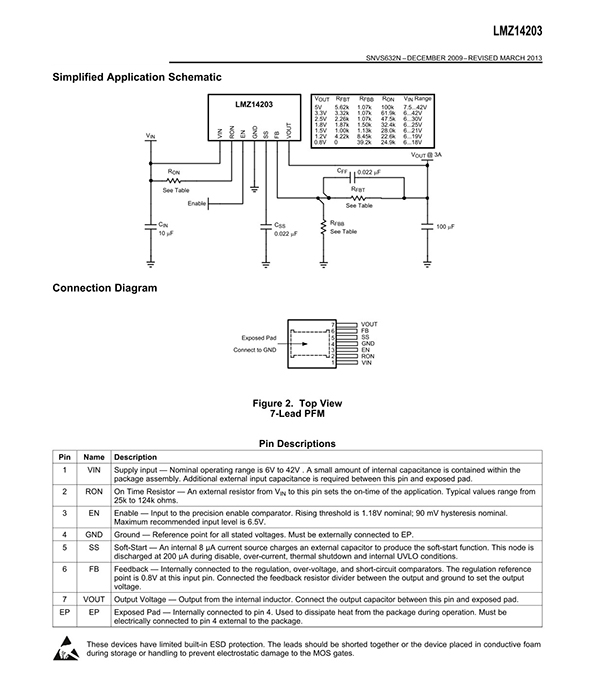

Product datasheet

For more information, please download
