Hot sale original ADP2116ACPZ-R7 IC REG BUCK ADJ/PROG 32LFCSP Configurable, Dual 3 A/Single 6 A, Synchronous, Step-Down
Manufacturer Product Number
ADP2116ACPZ-R7
Description
ADP2116ACPZ-R7 IC REG BUCK ADJ/PROG 32LFCSP Configurable, Dual 3 A/Single 6 A, Synchronous, Step-Down DC-to-DC Regulator
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Features n Configurable 3 A/3 A or 3 A/2 A dual-output load combinations or 6 A combined single-output load n High efficiency: up to 95n Input voltage, VIN: 2.75 V to 5.5 V n Selectable fixed output voltage of 0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, or 3.3 V, or adjustable output voltage to 0.6 V minimum n ±1.5 accurate reference voltage n Selectable switching frequency of 300 kHz, 600 kHz, 1.2 MHz, or synchronized from 200 kHz to 2 MHz n Optimized gate slew rate for reduced EMI n External synchronization input or internal clock output n Dual-phase, 180° phase-shifted PWM channels n Current mode for fast transient response n Pulse skip mode with light loads or forced PWM operation n See data sheet for additional features |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- ADP2116ACPZ-R7 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Programmable) |
| Number of Outputs | 1 or 2 |
| Voltage - Input (Min) | 2.75V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V (0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V) |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 6A, 3A/3A, 3A/2A |
| Frequency - Switching | 300kHz, 600kHz, 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| Base Product Number | ADP2116 |

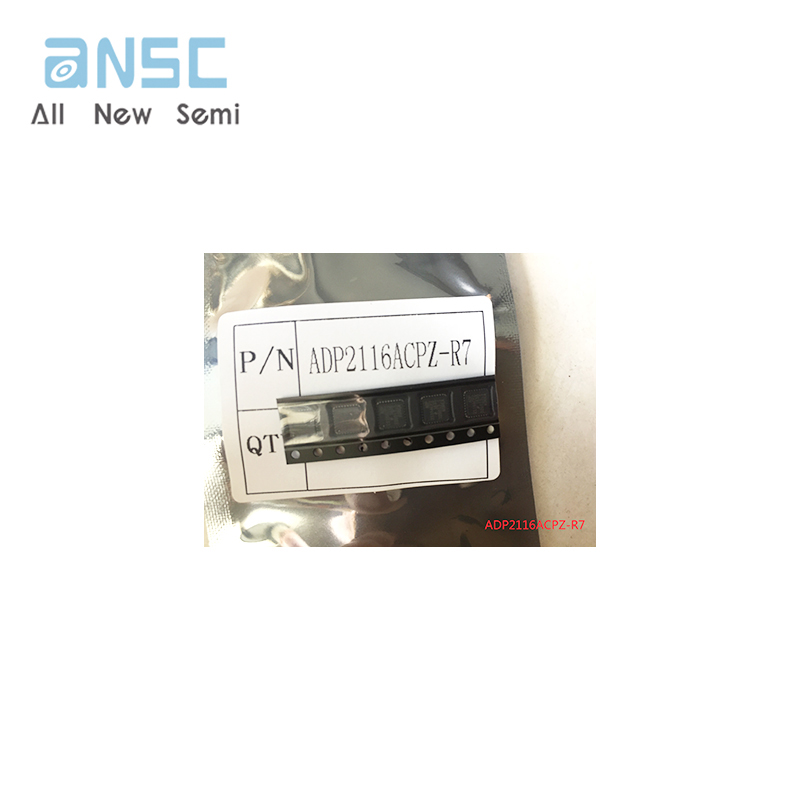

Product Photos

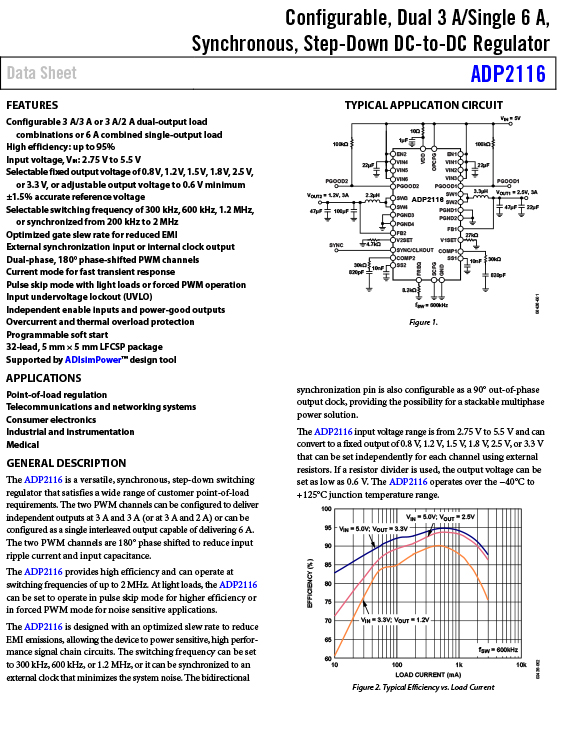

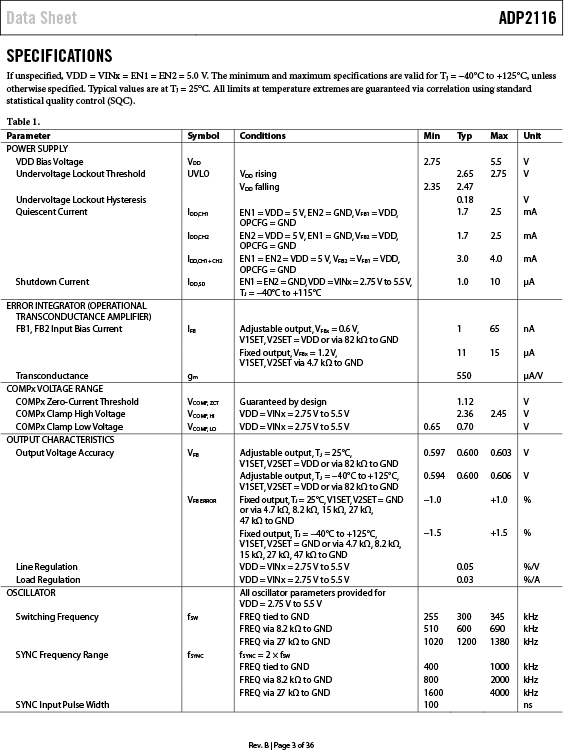

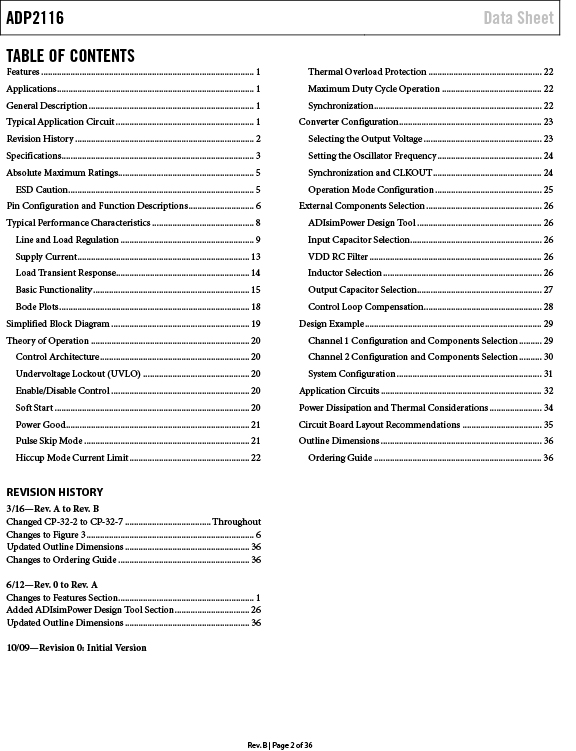

Product datasheet
For more information, please download
