Hot sale original electronics L4981B IC PFC CTR AV CURR 100KHZ 20DIP PFC IC Average Current 100kHz 20-DIP
Manufacturer Product Number
L4981B
Description
L4981B IC PFC CTR AV CURR 100KHZ 20DIP PFC IC Average Current 100kHz 20-DIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

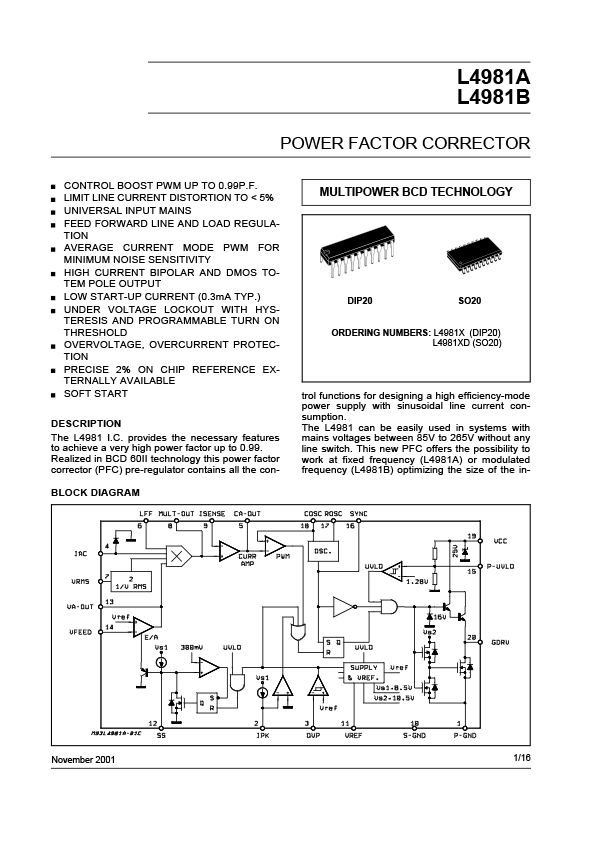

| DESCRIPTION The L4981 I.C. provides the necessary features to achieve a very high power factor up to 0.99. Realized in BCD 60II technology this power factor corrector (PFC) pre-regulator contains all the control functions for designing a high efficiency-mode power supply with sinusoidal line current con sumption. The L4981 can be easily used in systems with mains voltages between 85V to 265V without any line switch. This new PFC offers the possibility to work at fixed frequency (L4981A) or modulated frequency (L4981B) optimizing the size of the in put filter; both the operating frequency modes working with an average current mode PWM controller, maintaining sinusoidal line current without slope compensation. ■ CONTROL BOOST PWM UP TO 0.99P.F. ■ LIMIT LINE CURRENT DISTORTION TO < 5 ■ UNIVERSAL INPUT MAINS ■ FEED FORWARD LINE AND LOAD REGULATION ■ AVERAGE CURRENT MODE PWM FOR MINIMUM NOISE SENSITIVITY ■ HIGH CURRENT BIPOLAR AND DMOS TOTEM POLE OUTPUT ■ LOW START-UP CURRENT (0.3mA TYP.) ■ UNDER VOLTAGE LOCKOUT WITH HYSTERESIS AND PROGRAMMABLE TURN ON THRESHOLD ■ OVERVOLTAGE, OVERCURRENT PROTECTION ■ PRECISE 2 ON CHIP REFERENCE EXTERNALLY AVAILABLE ■ SOFT START |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- L4981B |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| PFC (Power Factor Correction) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Mode | Average Current |
| Frequency - Switching | 100kHz |
| Current - Startup | 100 µA |
| Voltage - Supply | 14.5V ~ 19.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-DIP |
| Base Product Number | L4981 |

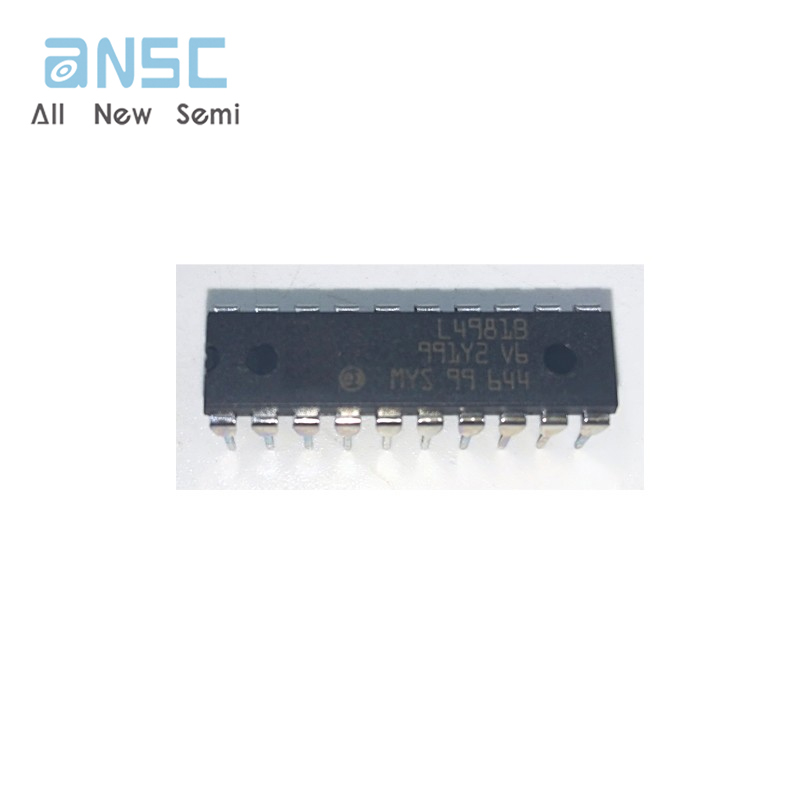

Product Photos

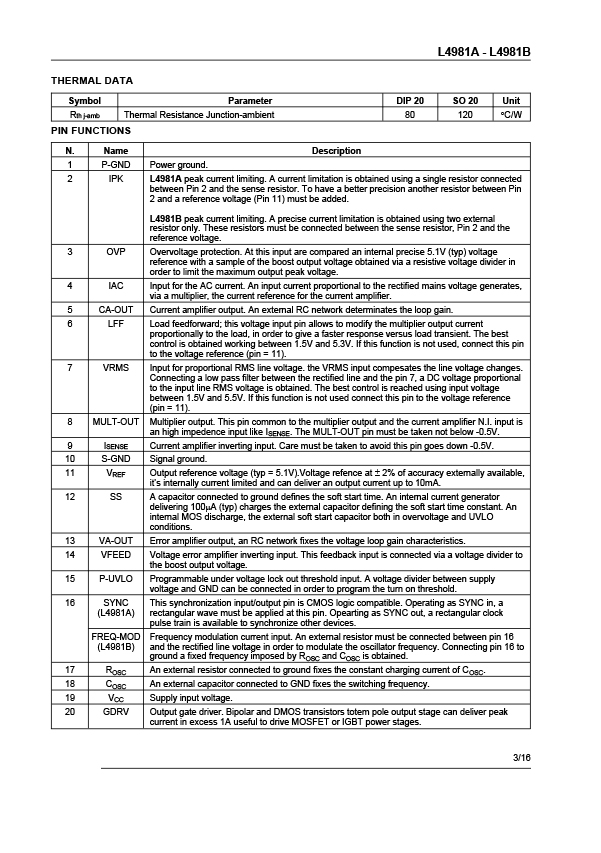

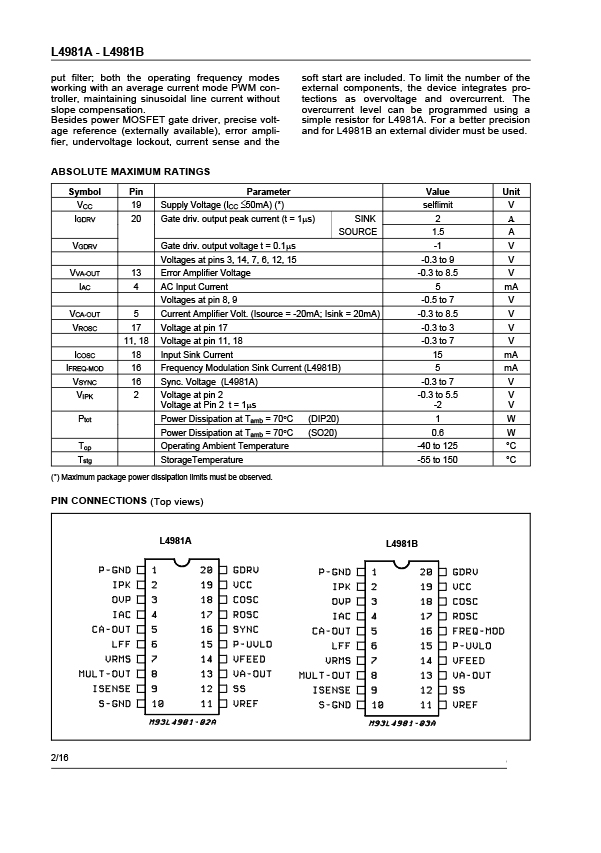

Product datasheet
