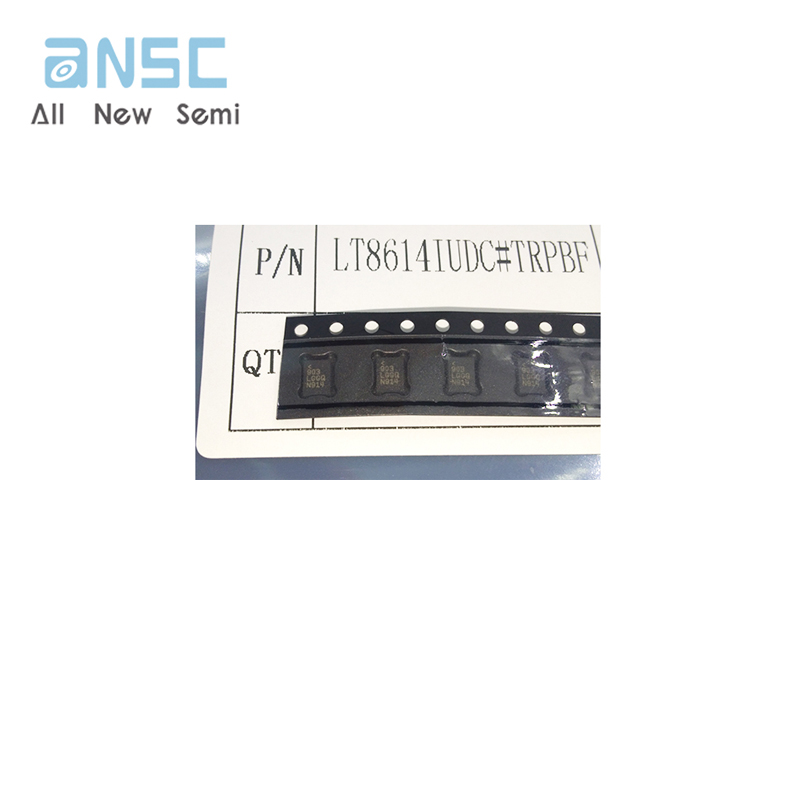

Hot sale original LT8614IUDC TRPBF Buck Switching Regulator IC Positive Adjustable 3.3V 1 Output 4A 20-WFQFN

Description

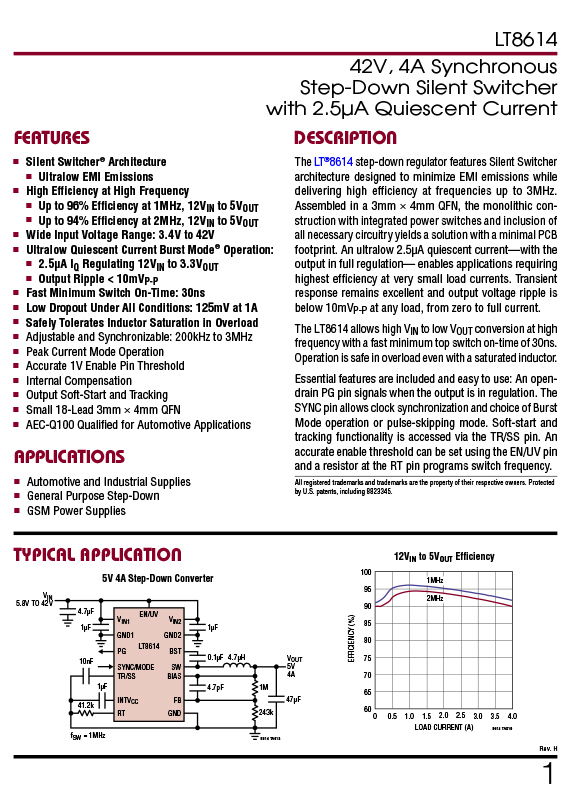

The LT®8614 step-down regulator features Silent Switcher architecture designed to minimize EMI emissions while
delivering high efficiency at frequencies up to 3MHz. Assembled in a 3mm × 4mm QFN, the monolithic construction with integrated power switches and inclusion of all necessary circuitry yields a solution with a minimal PCB footprint. An ultralow 2.5µA quiescent current—with the output in full regulation— enables applications requiring highest efficiency at very small load currents. Transient response remains excellent and output voltage ripple is below 10mVP-P at any load, from zero to full current.



Features
Silent Switcher® Architecture
Ultralow EMI Emissions
High Efficiency at High Frequency
Up to 96% Efficiency at 1MHz, 12VIN to 5VOUT
Up to 94% Efficiency at 2MHz, 12VIN to 5VOUT
Wide Input Voltage Range: 3.4V to 42V
Ultralow Quiescent Current Burst Mode® Operation:
2.5μA IQ Regulating 12VIN to 3.3VOUT
Output Ripple < 10mVP-P
Fast Minimum Switch On-Time: 30ns
Low Dropout Under All Conditions: 125mV at 1A
Safely Tolerates Inductor Saturation in Overload
Adjustable and Synchronizable: 200kHz to 3MHz
Peak Current Mode Operation
Accurate 1V Enable Pin Threshold
Internal Compensation
Output Soft-Start and Tracking
Small 18-Lead 3mm × 4mm QFN
AEC-Q100 Qualified for Automotive Applications


Application
Automotive and Industrial Supplies
General Purpose Step-Down
GSM Power Supplies
