Hot-selling and scarce LM2596SX-ADJ/NOPB Power Converter 150-kHz 3-A Step-Down Voltage Regulator TO-263 spot stock

    Product Descriptions

The LM2596 series of regulators are monolithic  integrated circuits that provide all the active functions  for a step-down (buck) switching regulator, capable  of driving a 3-A load with excellent line and load  regulation. These devices are available in fixed output  voltages of 3.3 V, 5 V, 12 V, and an adjustable output  version.

Requiring a minimum number of external  components, these regulators are simple to use and  include internal frequency compensation, and a fixedfrequency oscillator.

The LM2596 series operates at a switching frequency  of 150 kHz, thus allowing smaller sized filter  components than what can be required with  lower frequency switching regulators. Available in a  standard 5-pin TO-220 package with several different  lead bend options, and a 5-pin TO-263 surface mount  package.

    Product Features

• New product available:

– LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1- MHz synchronous converter

• For faster time to market:

– TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz power module

• 3.3-V, 5-V, 12-V, and adjustable output versions

• Adjustable version output voltage range: 1.2-V to 37-V ±4% maximum over line and load conditions

• Available in TO-220 and TO-263 packages

• 3-A output load current

• Input voltage range up to 40 V

• Requires only four external components

• Excellent line and load regulation specifications

• 150-kHz fixed-frequency internal oscillator

• TTL shutdown capability

• Low power standby mode, IQ, typically 80 μA

• High efficiency

• Uses readily available standard inductors

• Thermal shutdown and current-limit protection

• Create a custom design using the LM2596 with the WEBENCH® Power Designer

    Product Applications

• Appliances

• Grid infrastructure

• EPOS

• Home theater

    Product Specification

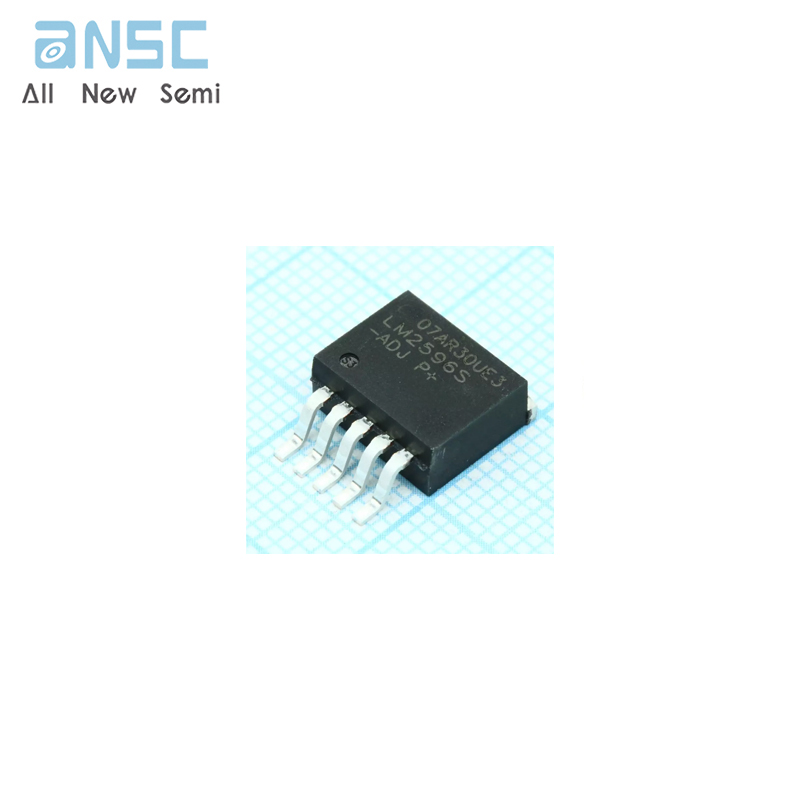

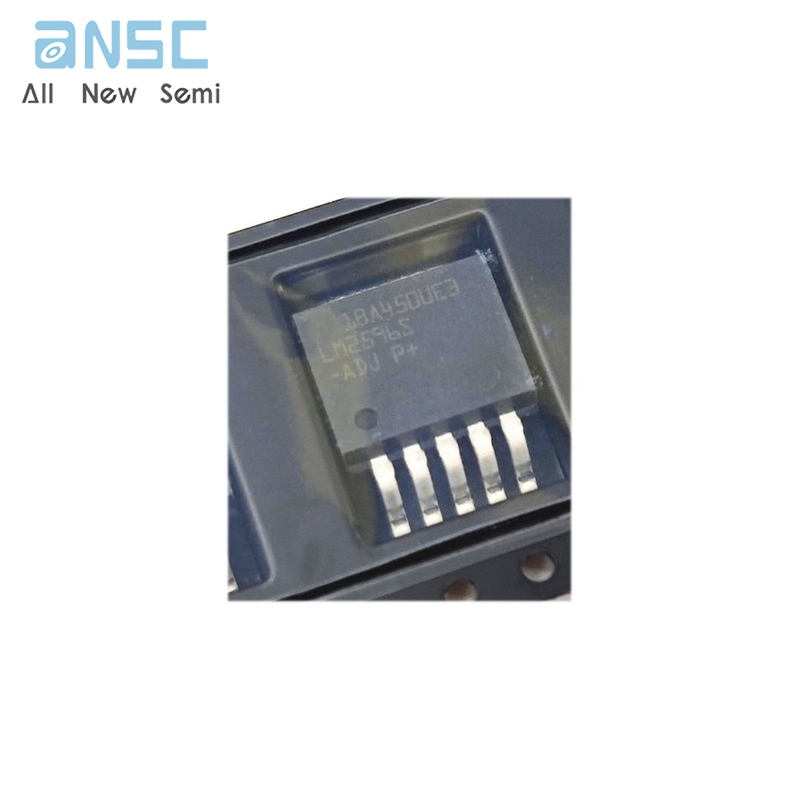

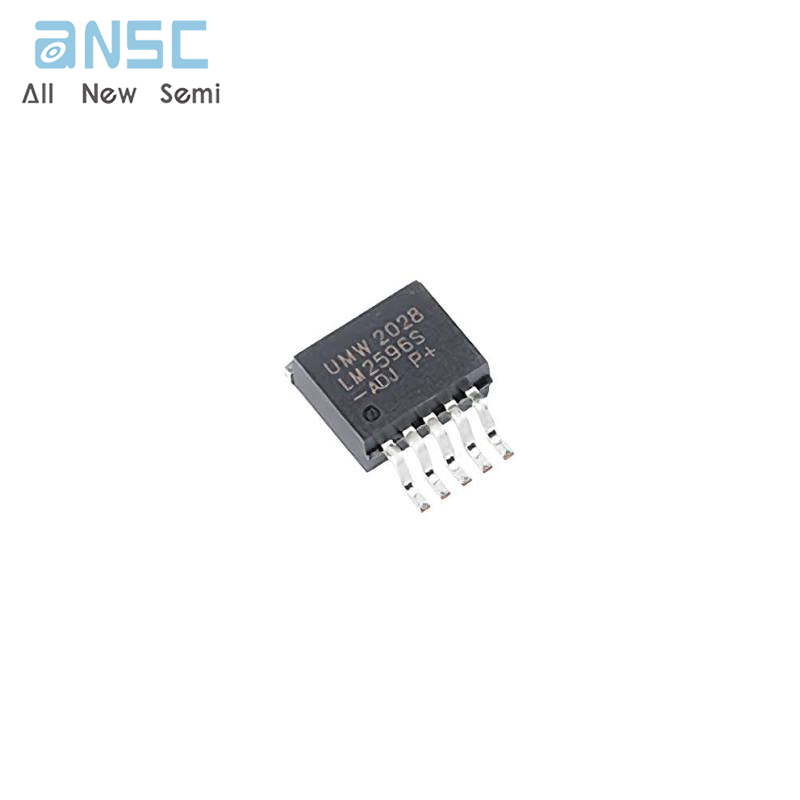

    Product Photos

    For more product information, please download the PDF
