Hot sale original LTC3418EUHF PBF Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 8A 38-WFQFN Exposed Pad
Manufacturer Product Number
LTC3418EUHF#PBF
Description
Original LTC3418EUHF#PBF IC REG BUCK ADJ 8A 38QFN
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

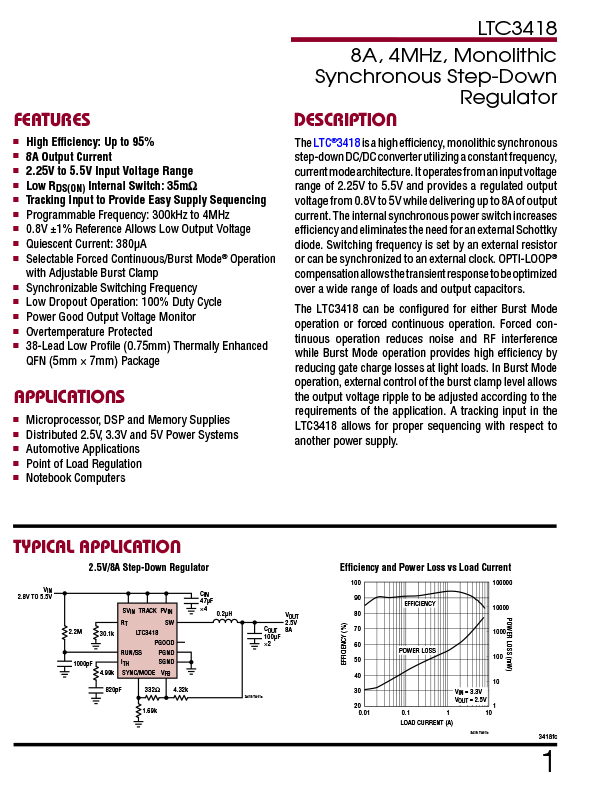

| DESCRIPTION The LTC®3418 is a high effi ciency, monolithic synchronous step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 8A of output current. The internal synchronous power switch increases effi ciency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of loads and output capacitors. FEATURES ■ High Effi ciency: Up to 95 ■ 8A Output Current ■ 2.25V to 5.5V Input Voltage Range ■ Low RDS(ON) Internal Switch: 35mΩ ■ Tracking Input to Provide Easy Supply Sequencing ■ Programmable Frequency: 300kHz to 4MHz ■ 0.8V ±1 Reference Allows Low Output Voltage ■ Quiescent Current: 380μA ■ Selectable Forced Continuous/Burst Mode® Operation with Adjustable Burst Clamp ■ Synchronizable Switching Frequency ■ Low Dropout Operation: 100 Duty Cycle ■ Power Good Output Voltage Monitor ■ Overtemperature Protected ■ 38-Lead Low Profi le (0.75mm) Thermally Enhanced QFN (5mm × 7mm) Package APPLICATIONS ■ Microprocessor, DSP and Memory Supplies ■ Distributed 2.5V, 3.3V and 5V Power Systems ■ Automotive Applications ■ Point of Load Regulation ■ Notebook Computers |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LTC3418EUHF#PBF |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.25V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Current - Output | 8A |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| Base Product Number | LTC3418 |

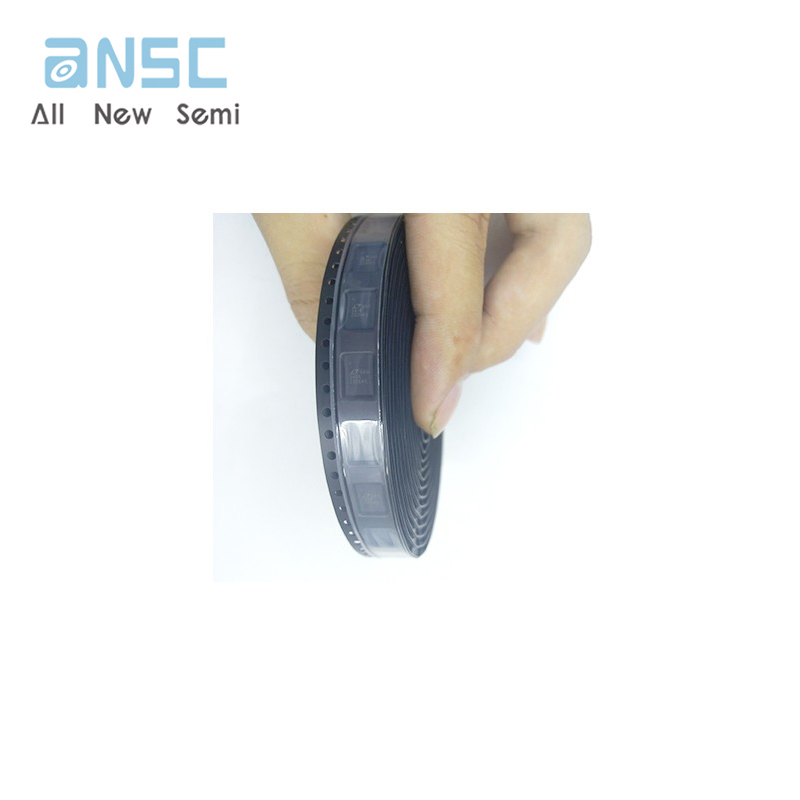

Product Photos

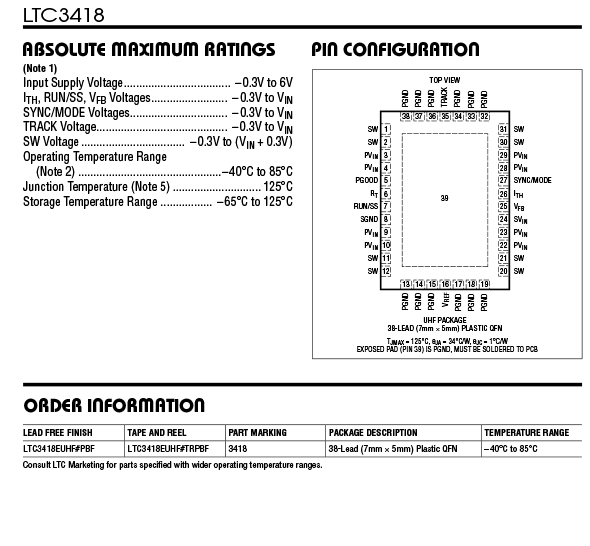

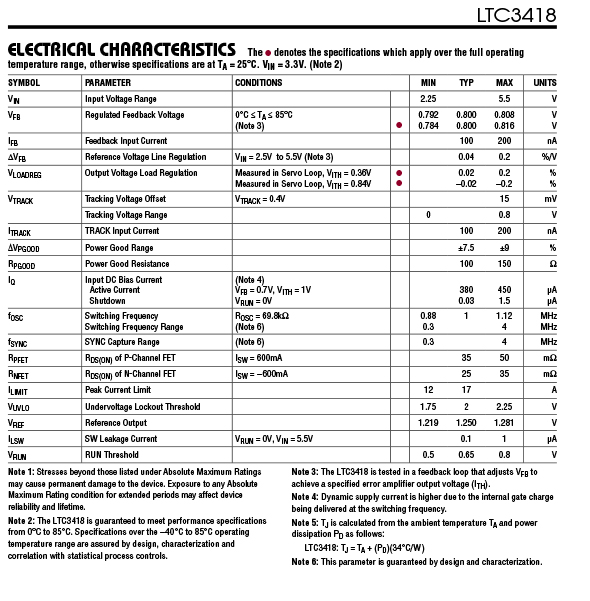

Product datasheet
