Hot sale Original TPS7A4501KTTR IC REG LINEAR POS ADJ 1.5A TO263 Linear Voltage Regulator IC Positive Adjustable 1 Output
Manufacturer Product Number
TPS7A4501KTTR
Description
TPS7A4501KTTR IC REG LINEAR POS ADJ 1.5A TO263 Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-263 (DDPAK-5)
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged either in TO-220AC, ISOWATT220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. FEATURES AND BENEFITS ■ Very small conduction losses ■ Negligible switching losses ■ Extremely fast switching ■ Insulated package: ISOWATT220AC, TO-220FPAC Insulating voltage = 2000V DC Capacitance = 12pF |
Product Description
| Type | Description |
| ANSC PART# | ANSC- TPS7A4501KTTR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| cms-packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| cms-part-status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.45V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 1.5 mA |
| Current - Supply (Max) | 90 mA |
| PSRR | 68dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263 (DDPAK-5) |
| Base Product Number | TPS7A4501 |

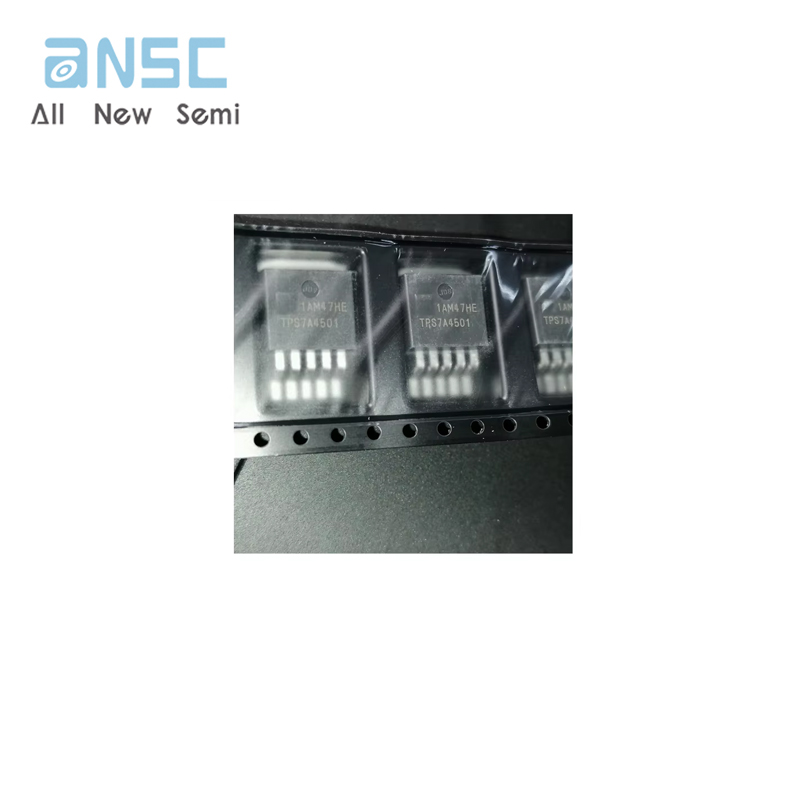

Actual image of the product

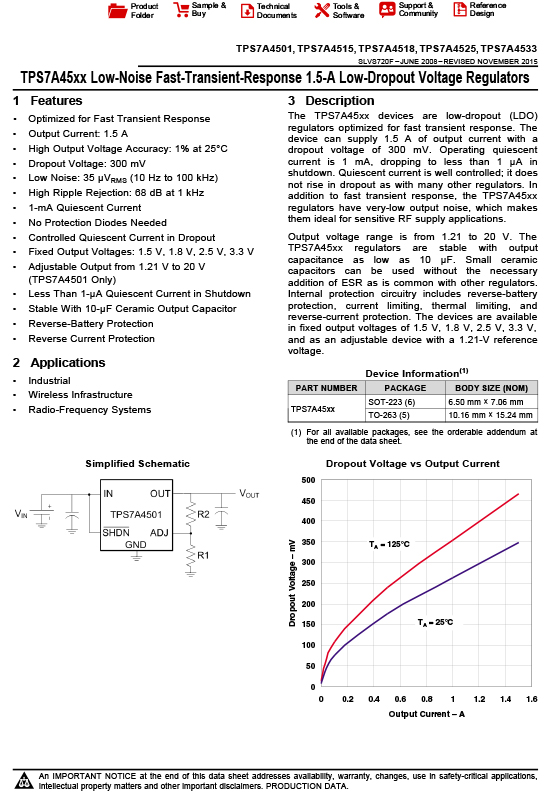

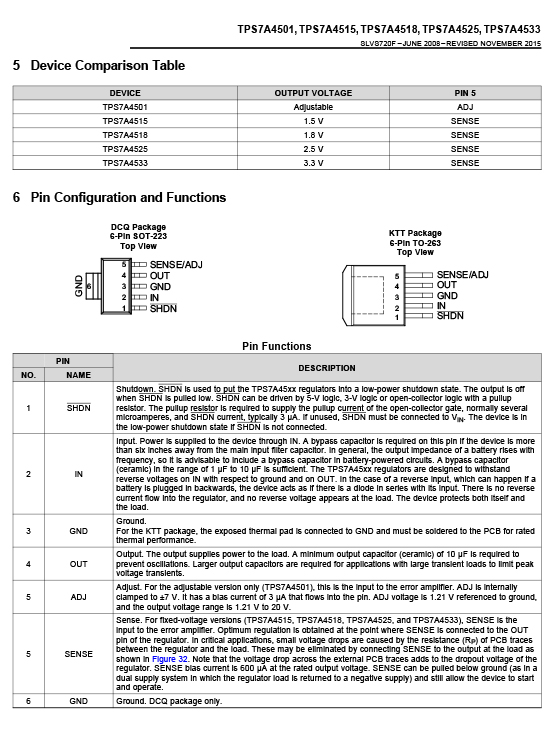

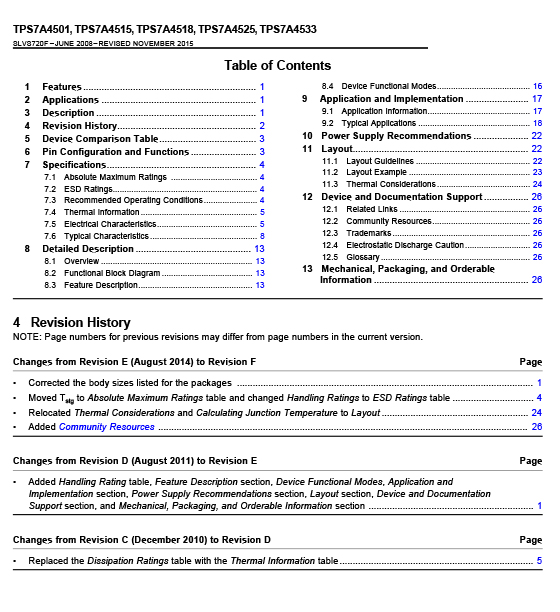

Product datasheet
