Hot sale Original LM2576HVT-ADJ PMIC IC REG BUCK ADJ 3A TO220-5 Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output
Manufacturer Product Number
LM2576HVT-ADJ
Description
LM2576HVT-ADJ LM2576/LM2576HV Series SIMPLE SWITCHER짰 3A Step-Down Voltage Regulator
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Product Description:
The LM2576HVT-ADJ is a high-performance, adjustable, step-down switching regulator , part of the SIMPLE SWITCHER? series. This compact and efficient IC is designed for through-hole mounting and is packaged in a TO-220-5 package, making it suitable for a wide range of applications.
Features:
Adjustable output voltage from 1.23V to 60V
Input voltage range of 4V to 60V
High efficiency up to 92%
Frequency of 52kHz
Voltage-mode control with pulse width modulation (PWM) technique
Operating temperature range of -40°C to 125°C
Moisture sensitivity level (MSL) of 1 (unlimited)
Non-RoHS compliant
Applications:
Power supplies for industrial control systems
Automotive electronics
Medical devices
Communications equipment
Consumer electronics
Product Description
| Type# | Description |
| ANSC PART# | ANSC-LM2576HVT-ADJ |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 1.23V |
| Voltage - Output (Max) | 57V |
| Current - Output | 3A |
| Frequency - Switching | 52kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Base Product Number | LM2576 |

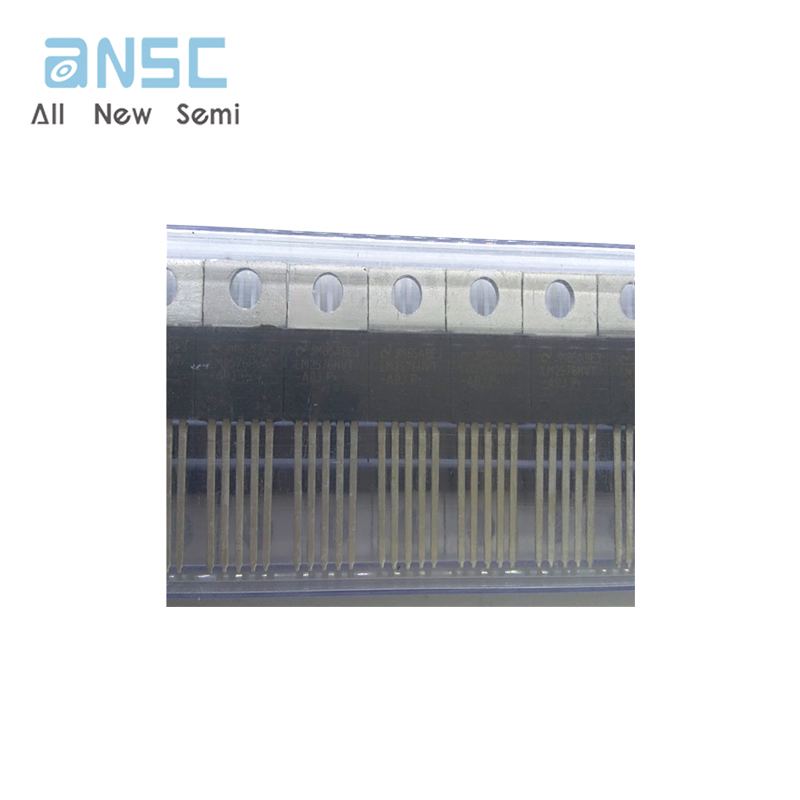

Product Photos

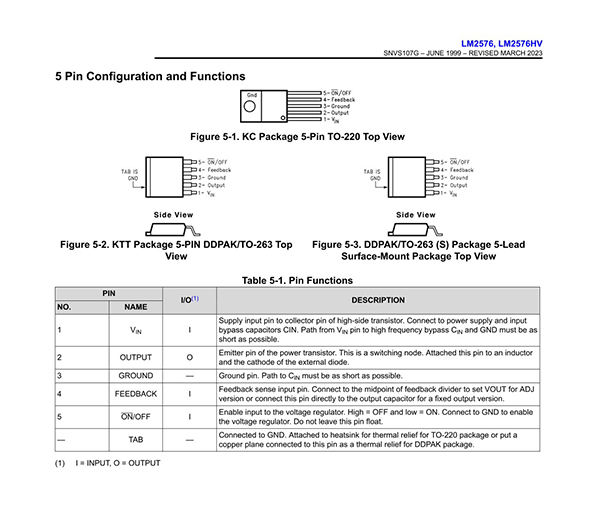

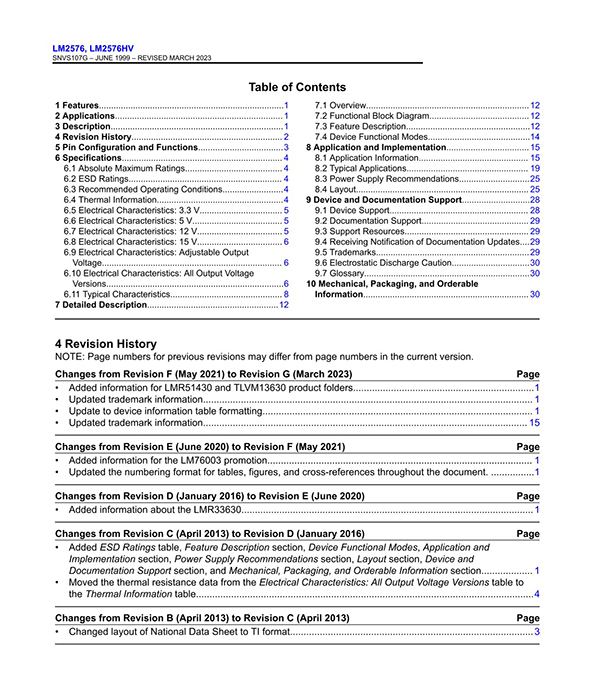

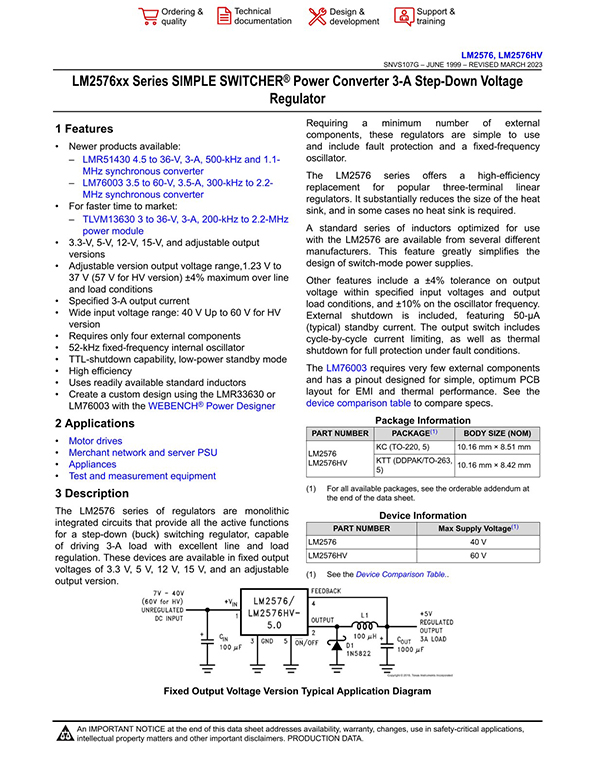

Product datasheet
For more information, please download
