Hot-selling and scarce ZL6105ALAFTK Digital DC/DC Controller with Drivers and Auto Compensation QFN spot stock

Product Descriptions

The ZL6105 is a digital power controller with integrated  MOSFET drivers. Auto compensation eliminates the need for  manual compensation design work. Adaptive performance  optimization algorithms improve power conversion efficiency.  Zilker Labs Digital-DC™ technology enables a blend of power  conversion performance and power management features.

The ZL6105 is designed to be a flexible building block for DC  power and can be easily adapted to designs ranging from a  single-phase power supply operating from a 3.3V to a  multiphase current sharing supply operating from a 12V input.  The ZL6105 eliminates the need for complicated power supply  managers as well as numerous external discrete components.

The ZL6105 uses the I2C/SMBus™ with PMBus™ protocol for  communication with a host controller and the Digital-DC bus  for communication between Zilker Labs devices.

The ZL6105 is pin for pin compatible with the ZL2008. The  POLA VOUT table and compensation table have been removed.  A new single resistor VOUT table and the Auto Compensation  feature have been added.

Product Features

Power Conversion

• Efficient Synchronous Buck Controller

• Auto Compensating PID Filter

• Adaptive Light Load Efficiency Optimization

• 3V to 14V Input Range

• 0.54V to 5.5V Output Range (with margin)

• ±1%Output Voltage Accuracy

• Internal 3A MOSFET Drivers

• Fast Load Transient Response

• Current Sharing and Phase Interleaving

• Snapshot™Parameter Capture

• Pb-Free (RoHs Compliant)

Power Management

• Digital Soft-start/stop

• Power-Good/Enable

• Voltage Tracking,Sequencing and Margining

• Voltage,Current and Temperature Monitoring

• I2 C/SMBus Interface, PMBus Compatible

• Output Voltage and Current Protection

• Internal Non-volatile Memory (NVM)

Product Applications

• Servers/Storage Equipment

• Telecom/Datacom Equipment

• Power Supply Modules

Product Specification

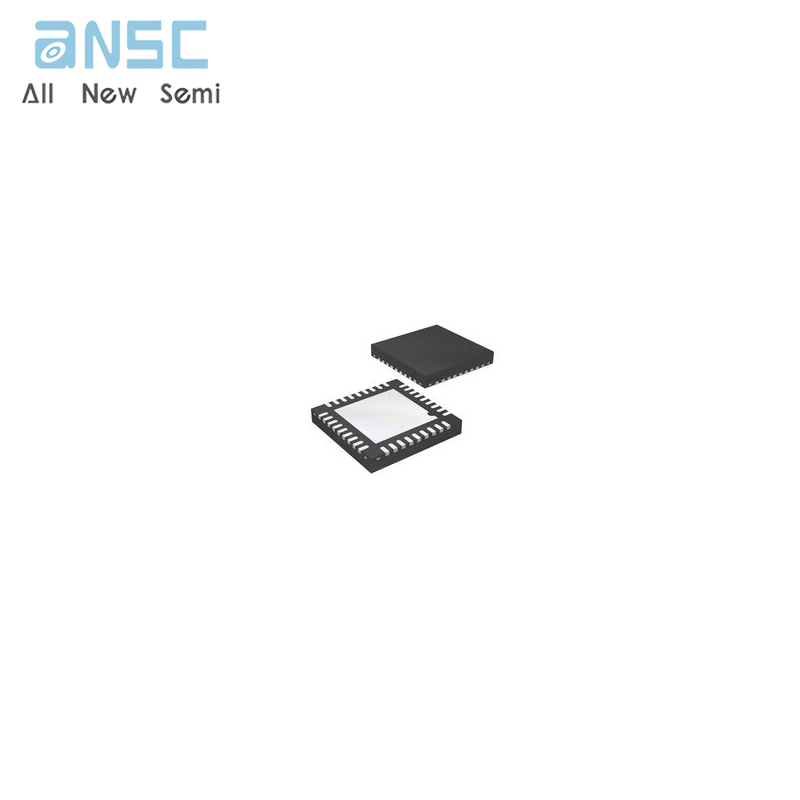

Product Photos

For more product information, please download the PDF
