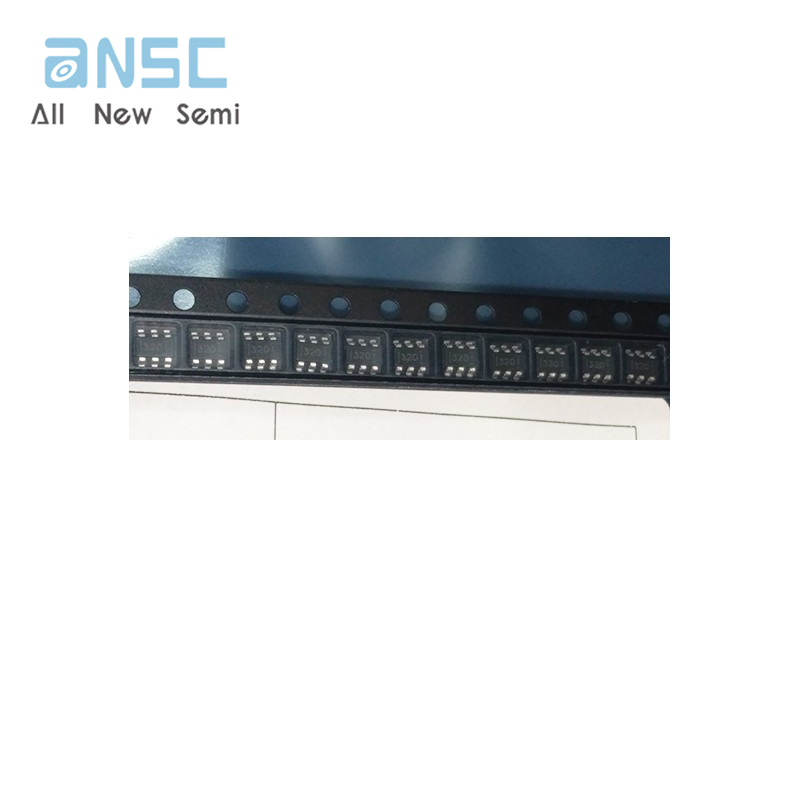

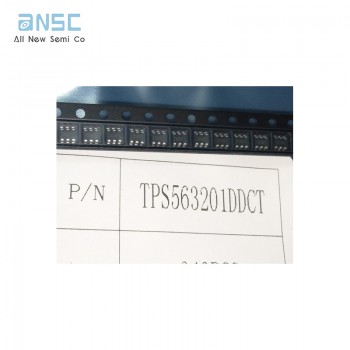

Hot sale Original TPS563201DDCT Buck Switching Regulator IC Positive Adjustable 0.768V 1 Output 3A SOT-23-6 Thin, TSOT-23-6

Product Description:

The TPS563201DDCT is a highly efficient and compact DC-DC switching regulator, designed to provide a stable output voltage of 7V with a maximum output current of 3A. This surface-mount device is part of the D-CAP2? and Eco-Mode? series, offering a unique combination of high performance, low power consumption, and environmental sustainability.

Features:

Pulse Width Modulation (PWM) control technique for efficient operation
High frequency switching at 580kHz for reduced noise and improved thermal performance
Adjustable output voltage with a minimum output voltage of 768mV
Low quiescent current of 400μA for reduced power consumption
Synchronous rectifier for improved efficiency and reduced heat generation
Operating temperature range of -40°C to 125°C for broad application compatibility
Applications:

Primary applications: Point-of-Load (POL) regulation in data centers, telecommunications, and industrial systems
Secondary applications: Power supply for consumer electronics, automotive systems, and medical devices
