Hot sale Original LM317LD13TR PMIC IC REG LIN POS ADJ 100MA Linear Voltage Regulator IC Positive Adjustable 1 Output 8-SOIC
Manufacturer Product Number
LM317LD13TR
Description
Original LM317LD13TR PMIC IC REG LIN POS ADJ 100MA 8SOIC Linear Voltage Regulator IC Positive Adjustable 1 Output 8-SOIC
Package Condition
Tape & Reel (TR)Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

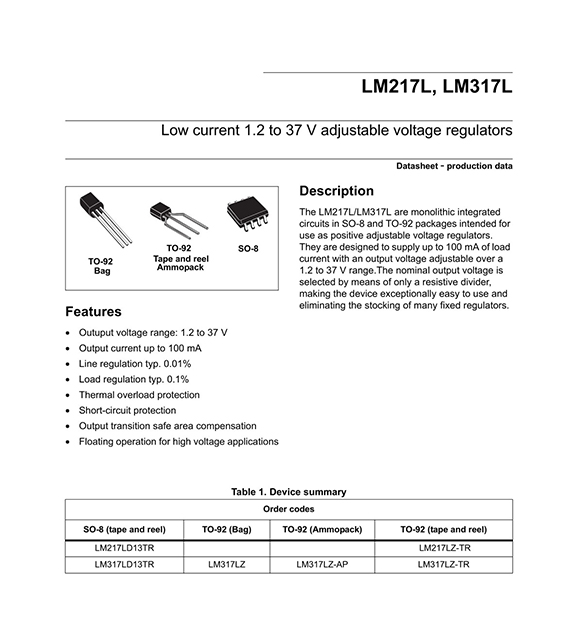

| Description The LM217L/LM317L are monolithic integrated circuits in SO-8 and TO-92 packages intended for use as positive adjustable voltage regulators. They are designed to supply up to 100 mA of load current with an output voltage adjustable over a 1.2 to 37 V range.The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators. Features • Outuput voltage range: 1.2 to 37 V • Output current up to 100 mA • Line regulation typ. 0.01% • Load regulation typ. 0.1% • Thermal overload protection • Short-circuit protection • Output transition safe area compensation • Floating operation for high voltage applications |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LM317LD13TR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 5 mA |
| PSRR | 80dB ~ 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM317 |

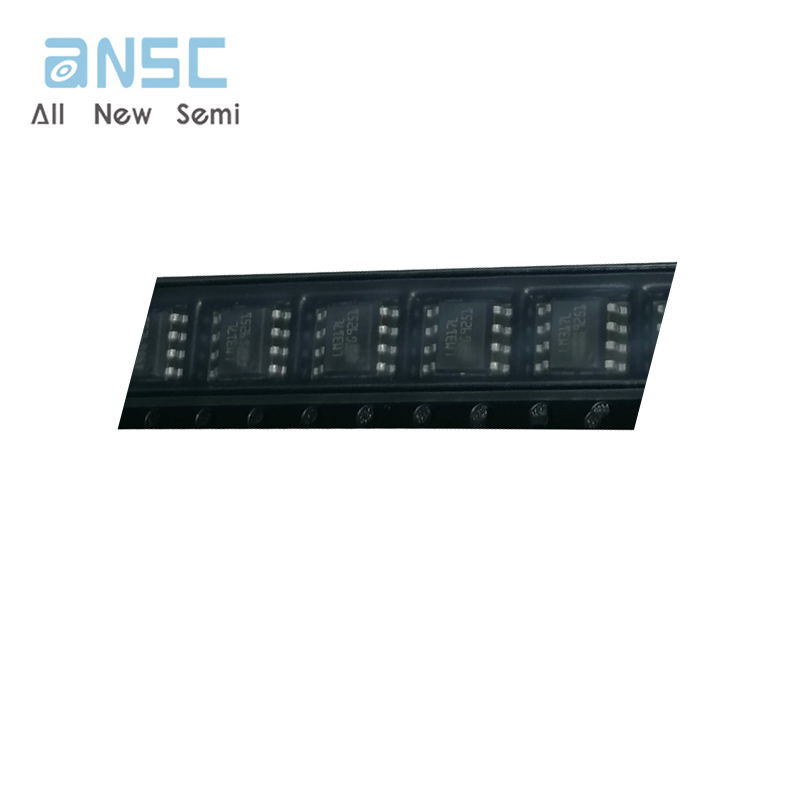

Actual image of the product

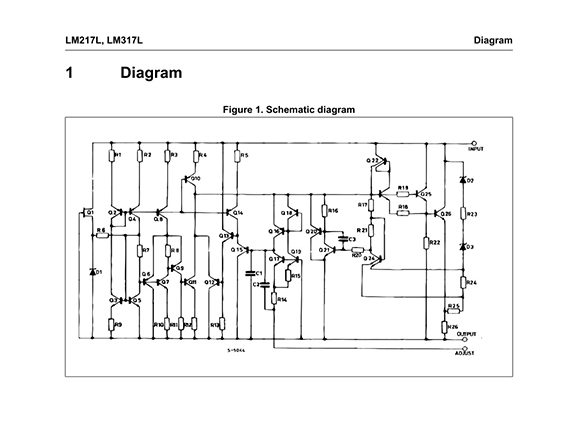

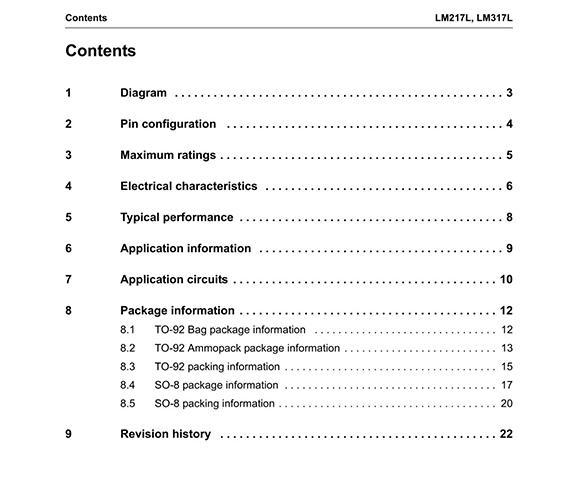

Product datasheet
For more information, please download
