Hot-selling and scarce L6201PSTR DMOS FULL BRIDGE DRIVER HSOP20 spot stock

Product Descriptions

The I.C. is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and µC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels. The I.C. is mounted in three different packages.

Product Features

SUPPLY VOLTAGE UP TO 48V

5A MAX PEAK CURRENT (2A max. for L6201)

TOTAL RMS CURRENT UP TO

L6201: 1A; L6202: 1.5A; L6203/L6201PS: 4A

RDS (ON) 0.3 Ω (typical value at 25 °C)

CROSS CONDUCTION PROTECTION

TTL COMPATIBLE DRIVE

OPERATING FREQUENCY UP TO 100 KHz

THERMAL SHUTDOWN

INTERNAL LOGIC SUPPLY

HIGH EFFICIENCY

​

Product Specification

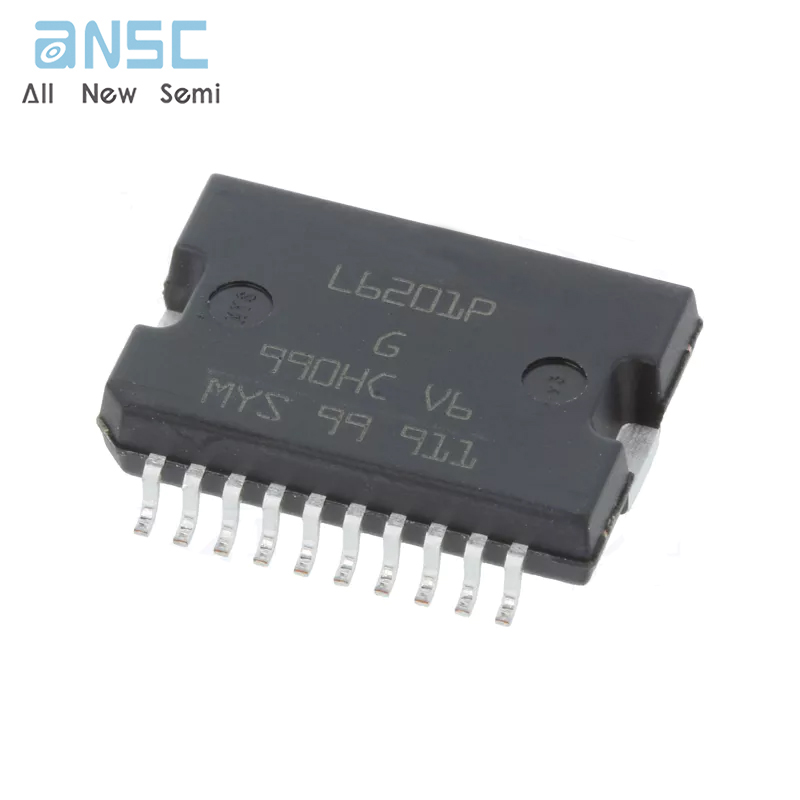

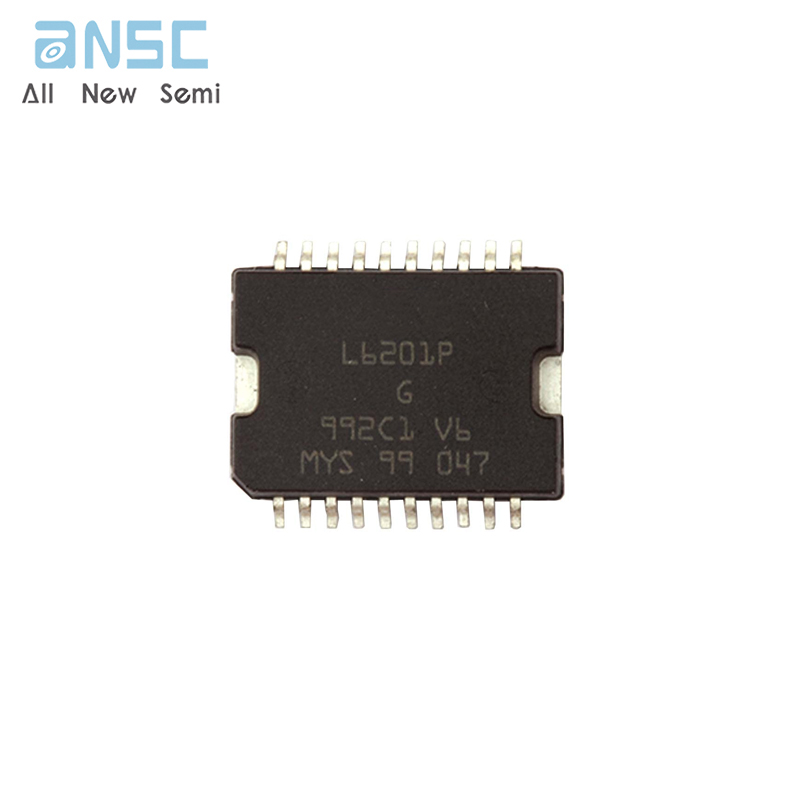

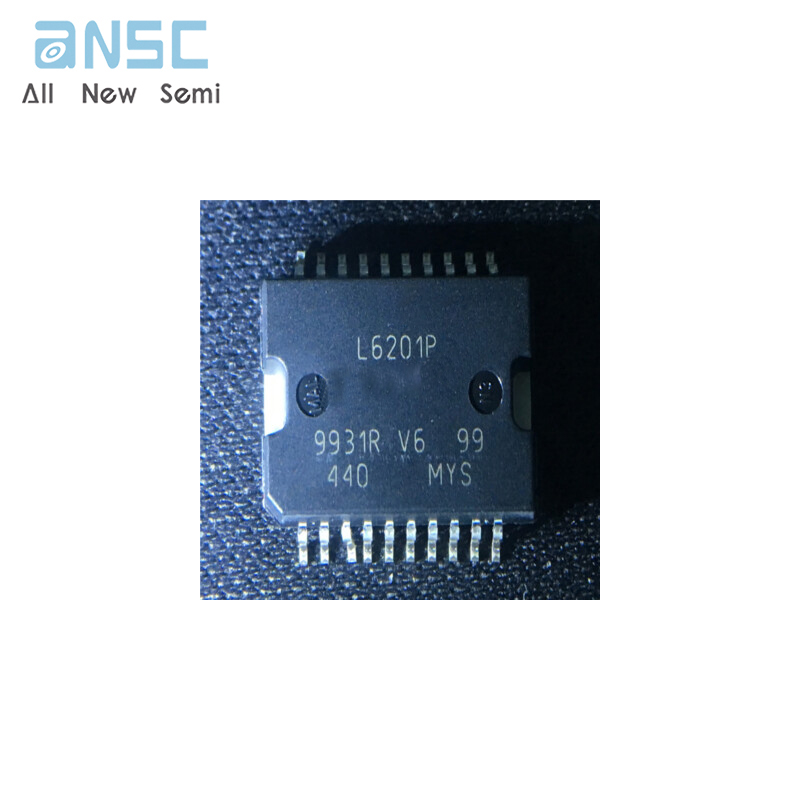

Product Photos

For more product information, please download the PDF
