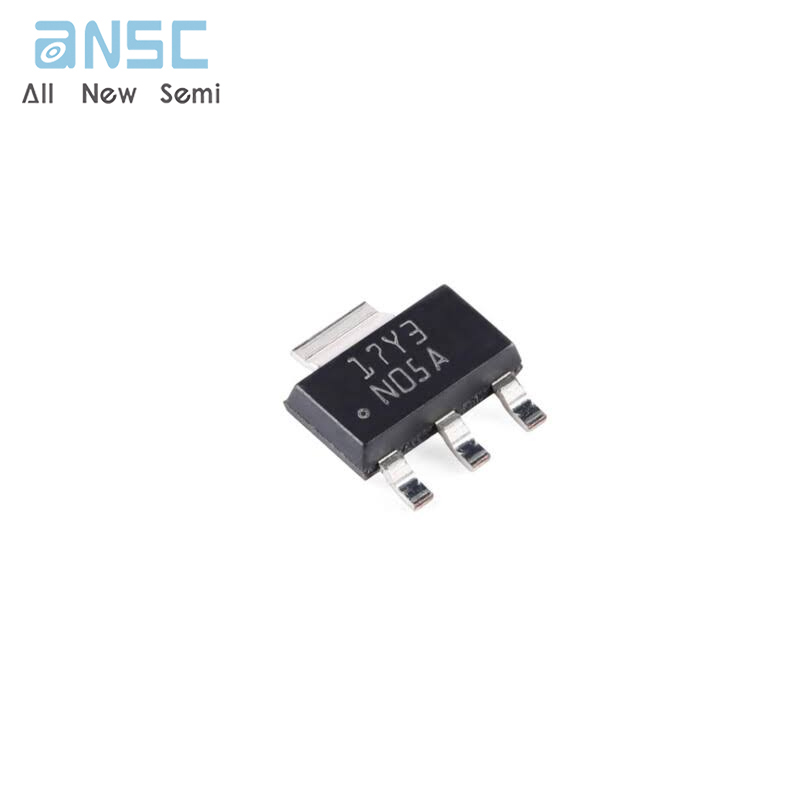

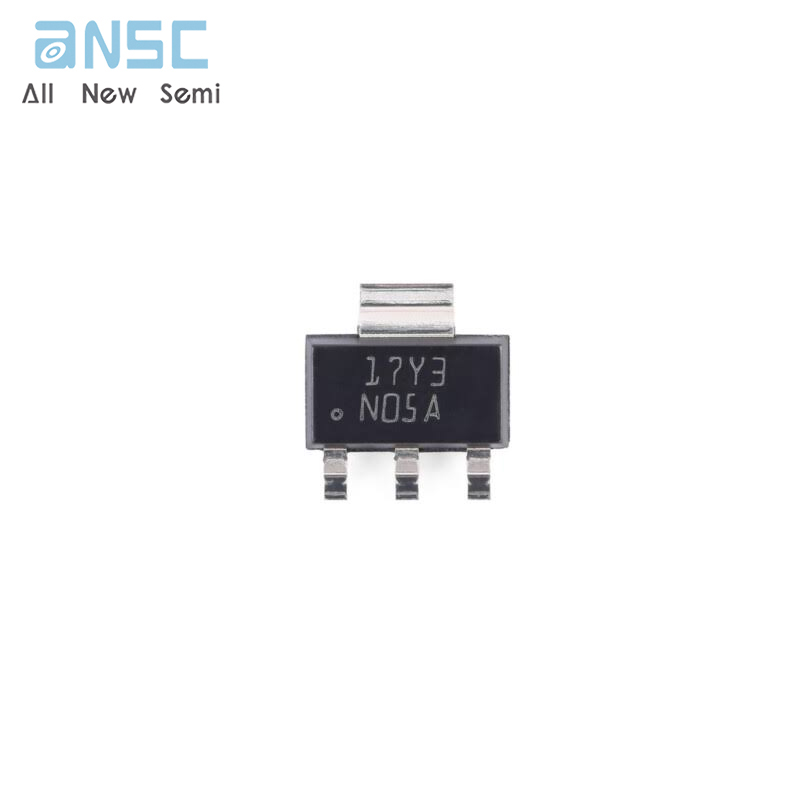

Hot-selling and scarce LM1117MPX-3.3/NOPB 800mA Low-Dropout Linear Regulator SOT223 spot stock

Product Descriptions

The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as National Semiconductor's industry standard LM317 .

The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V.

The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%.

The LM1117 series is available in LLP, TO-263, SOT-223, TO-220, and TO-252 D-PAK packages. A minimum of10 µF tantalum capacitor is required at the output to improve the transient response and stability.

Product Features

•   Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions

•    Space Saving SOT-223 and LLP Packages

•    Current Limiting and Thermal Protection

•    Output Current 800mA

•    Line Regulation 0.2% (Max)

•    Load Regulation 0.4% (Max)

•    Temperature Range

–   LM1117: 0°C to 125°C

–   LM1117I: −40°C to 125°C

Product Applications

•    2.85V Model for SCSI-2 Active Termination

•    Post Regulator for Switching DC/DC Converter

•    High Efficiency Linear Regulators

•    Battery Charger

•    Battery Powered Instrumentation

Product Specifications

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
