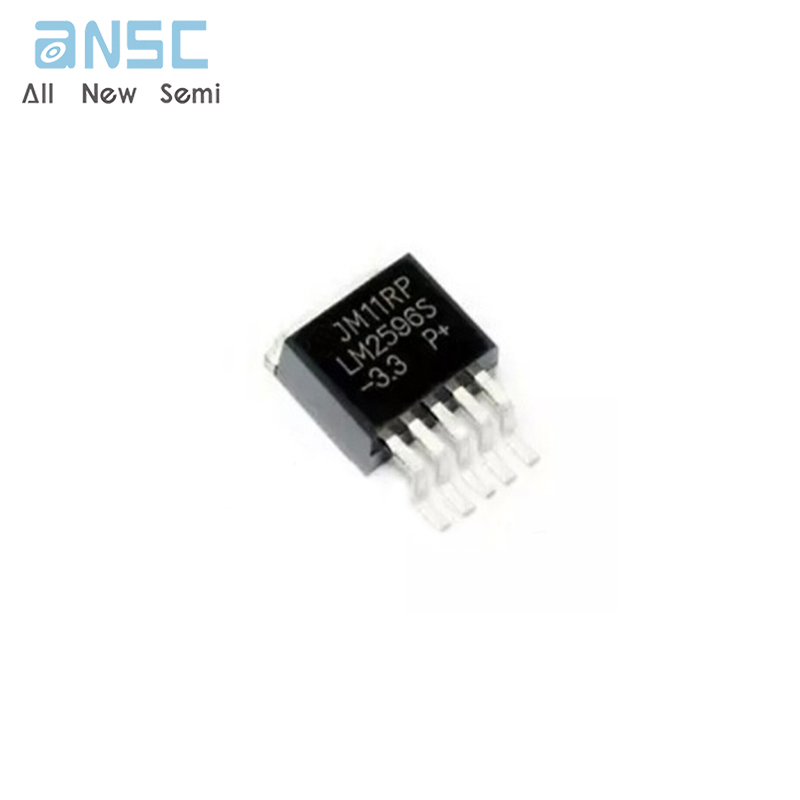

Hot-selling and scarce LM2596SX-3.3/NOPB Power Converter 150-kHz 3-A Step-Down Voltage Regulator TO-263 spot stock

Product Descriptions

The   LM2596  series  of  regulators   are   monolithic integrated circuits that provide all the active functions for a step-down  (buck) switching  regulator,  capable of  driving  a  3-A  load  with  excellent  line  and  load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

Requiring     a     minimum     number     of     external components, these regulators are simple to use and include internal frequency compensation, and a fixedfrequency oscillator.

The LM2596 series operates at a switching frequency of   150   kHz,   thus   allowing   smaller   sized   filter components   than   what   can    be    required   with lower frequency switching  regulators. Available  in a standard 5-pin TO-220 package with several different lead bend options, and a 5-pin TO-263 surface mount package.

Product Features

•    New product available:

–   LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1- MHz synchronous converter

•    For faster time to market:

–   TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz power module

•   3.3-V, 5-V, 12-V, and adjustable output versions

•   Adjustable version output voltage range: 1.2-V to 37-V ±4% maximum over line and load conditions

•   Available in TO-220 and TO-263 packages

•   3-A output load current

•    Input voltage range up to 40 V

•    Requires only four external components

•    Excellent line and load regulation specifications

•    150-kHz fixed-frequency internal oscillator

•   TTL shutdown capability

•    Low power standby mode, IQ, typically 80 μA

•    High efficiency

•    Uses readily available standard inductors

•   Thermal shutdown and current-limit protection

•    Create a custom design using the LM2596 with the WEBENCH® Power Designer

Product Applications

•   Appliances

•    Grid infrastructure

•    EPOS

•    Home theater

Product Specifications

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
