Product Details

The MAX17043/MAX17044 are ultra-compact, low-cost, host-side fuel-gauge systems for lithium-ion (Li+) batteries in handheld and portable equipment. The MAX17043 is configured to operate with a single lithium cell and the MAX17044 is configured for a dual-cell 2S pack.

The MAX17043/MAX17044 use a sophisticated Li+ battery-modeling scheme, called ModelGauge™ to track the battery’s relative state-of-charge (SOC) continuously over a widely varying charge/discharge profile. Unlike traditional fuel gauges, the ModelGauge algorithm eliminates the need for battery relearn cycles and an external current-sense resistor. Temperature compensation is possible in the application with minimal interaction between a μC and the device.

The IC can be located on the system side, reducing cost and supply chain constraints on the battery. Measurement and estimated capacity data sets are accessed through an I2C interface. The MAX17043/MAX17044 are available in either a 0.4mm pitch 9-bump UCSP™ or 2mm x 3mm, 8-pin TDFN lead-free package.

Product Features

● Host-Side or Battery-Side Fuel Gauging

• 1 Cell (MAX17043)

 • 2 Cell (MAX17044)

● Precision Voltage Measurement

• ±12.5mV Accuracy to 5.00V (MAX17043)

• ±30mV Accuracy to 10.00V (MAX17044)

● Accurate Relative Capacity (RSOC) Calculated from ModelGauge Algorithm

● No Offset Accumulation on Measurement

● No Full-to-Empty Battery Relearning Necessary

● No Sense Resistor Required

● External Alarm/Interrupt for Low-Battery Warning

● 2-Wire Interface

● Low Power Consumption

● Tiny, Lead(Pb)-Free, 8-Pin, 2mm x 3mm TDFN Package or Tiny 0.4mm Pitch 9-Bump UCSP Package

Product Applications

● Smartphones, Tablets

● Health and Fitness Monitors

● Digital Still, Video, and Action Cameras

● Medical Devices

● Handheld Computers and Terminals

​● Wireless Speakers

Specifications

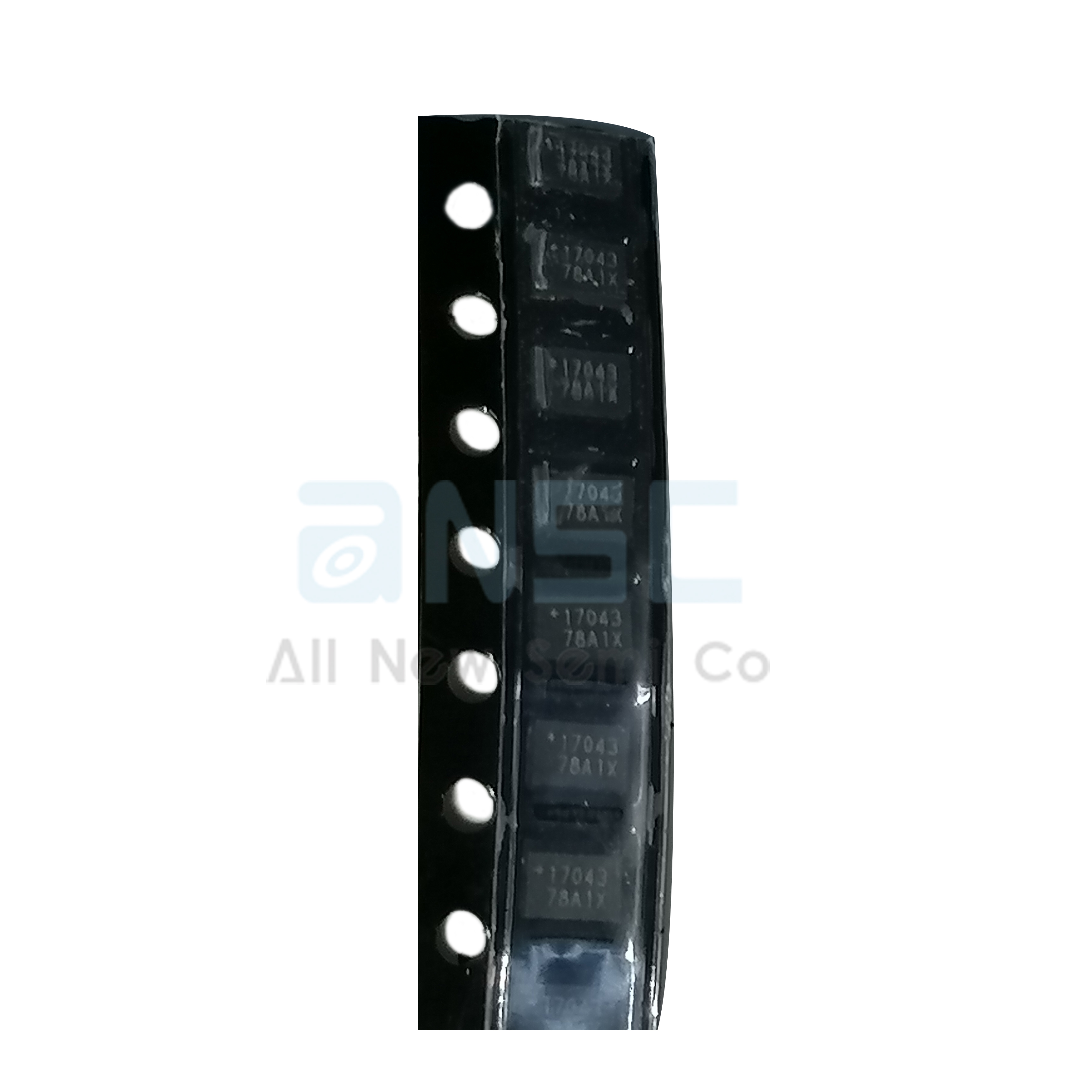

Actual product photos
