Hot-selling and scarce MP2136EG-LF-Z 2.5V to 6V Input, 2MHz, 1A Synchronous Step-Down Converter QFN spot stock

Product Descriptions

The MP2136 is a 2MHz constant frequency, current mode,PWM step-down converter with integrated main switch and synchronous rectifier that is ideal for powering portable equipment that runs from a single Li-Ion or LiPolymer battery.

The MP2136 can supply up to 1A load current from a 2.5V to 6V input voltage.The output voltage can be as low as 0.6V.

Additional features include <1µA shutdown current,internal soft-start,cycle-by-cycle over current protection,short circuit protection,and thermal shutdown.

The MP2136 is available in a 6-pin, QFN62mm×2mm package.

Product Features

• 2MHz Constant Switching Frequency

• 1A Available Load Current

• 2.5V to 6V Input Voltage Range

• Output Voltage as Low as 0.6V

• Current Mode Control

• Cycle-by-Cycle Over Current Protection

• Short Circuit Protection

• Thermal Shutdown

• <1µA Shutdown Current

• Internal Soft-Start

• Space-Saving 6-pin,QFN6 2mm×2mm package

Product Applications

• Cellular Phones

• Microprocessors and DSP Core Supplies

• PDAs and Smart Phones

• MP3 and Portable Media Players

• Digital Still and Video Cameras

• Portable Instruments

Product Specification

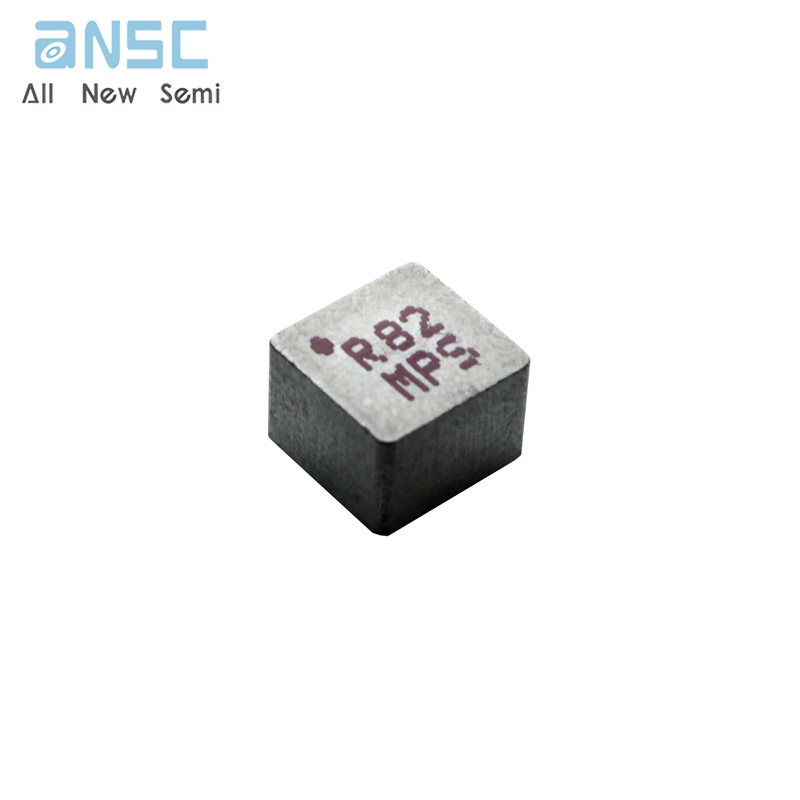

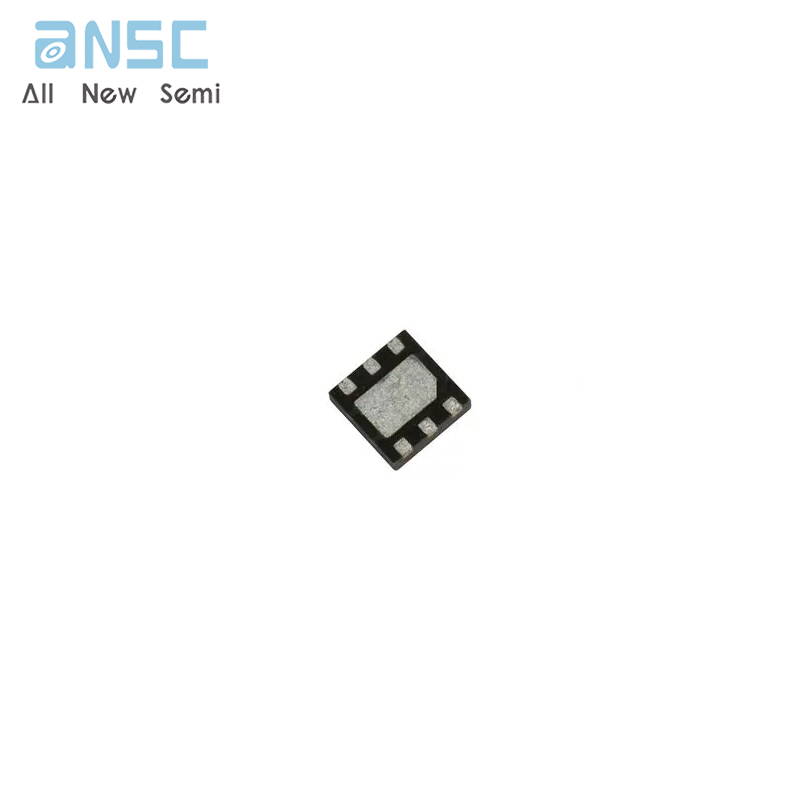

Product Photos

For more product information, please download the PDF
