LM94CIMTX/NOPB Hardware Monitor with PI Loop Fan Control for Server Management TSSOP56 spot stock

Product Descriptions

The  LM94  hardware  monitor  has a two wire digitalinterface  compatible  with  SMBus  2.0.  Using  a  ΣΔADC,  the  LM94  measures  the  temperature  of fourremote diode connected transistors as well as its owndie  and  16  power  supply  voltages .  The  LM94  hasnew  TruTherm  technology  that  supports  precisionthermal diode measurements of processors on submicron processes .

Product Features

•   8-bit ΣΔADC

•    Monitors 16 Power Supplies

•    Monitors 4 Remote Thermal Diodes and 2 LM60

•    New TruTherm Technology Support for Precision Thermal Diode Measurements

•    Internal Ambient Temperature Sensing

•    Programmable Autonomous Fan Control Based on Temperature Readings with Fan Boost Support

•    Fan Boost Support on Tachometer Limit Error Event

•    Fan Control Based on 13-step Lookup Table or PI Control Loop or Combination of Both

•    PI Fan Control Loop Supports Tcontrol

•    Temperature Reading Digital Filters

•    0.5°C digital Temperature Sensor Resolution

•    0.0625°C Filtered Temperature Resolution for Fan Control

•    2 PWM Fan Speed Control Outputs

•    4 Fan Tachometer Inputs

•    Dual Processor Thermal Throttling (PROCHOT) Monitoring

•    Dual Dynamic VID Monitoring (6/7 VIDs per processor) Supports VRD10.2/11

•    8 General Purpose I/Os:

–   4 Can be Configured as Fan tachometer Inputs

–   2 Can be Configured to Connect to Processor THERMTRIP

–   2 are Standard GPIOs that Could be Used to Monitor IERR Signal

•    2 General Purpose Inputs that Can be Used to Monitor the 7th VID Signal for VRD11

•    Limit Register Comparisons of all Monitored Values

Product Applications

•    Servers

•    Workstations

•    Multi-processor based equipment

    ​

​Product Specification

    ​    ​

    ​    ​

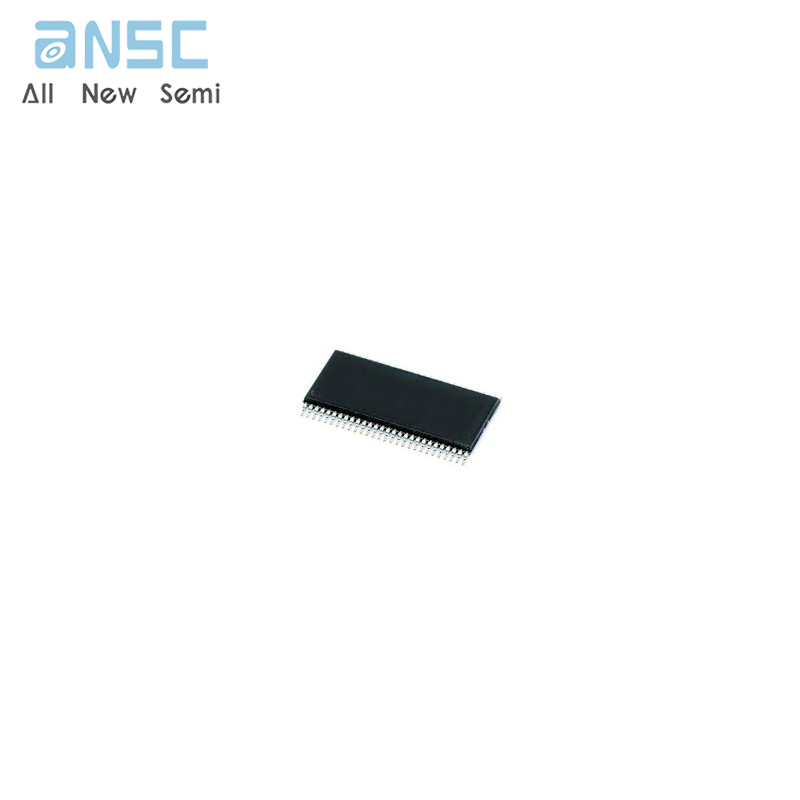

Product Photos

    ​    ​

    ​   ​     ​

    ​    ​

    ​    ​For more product information, please download the PDF
