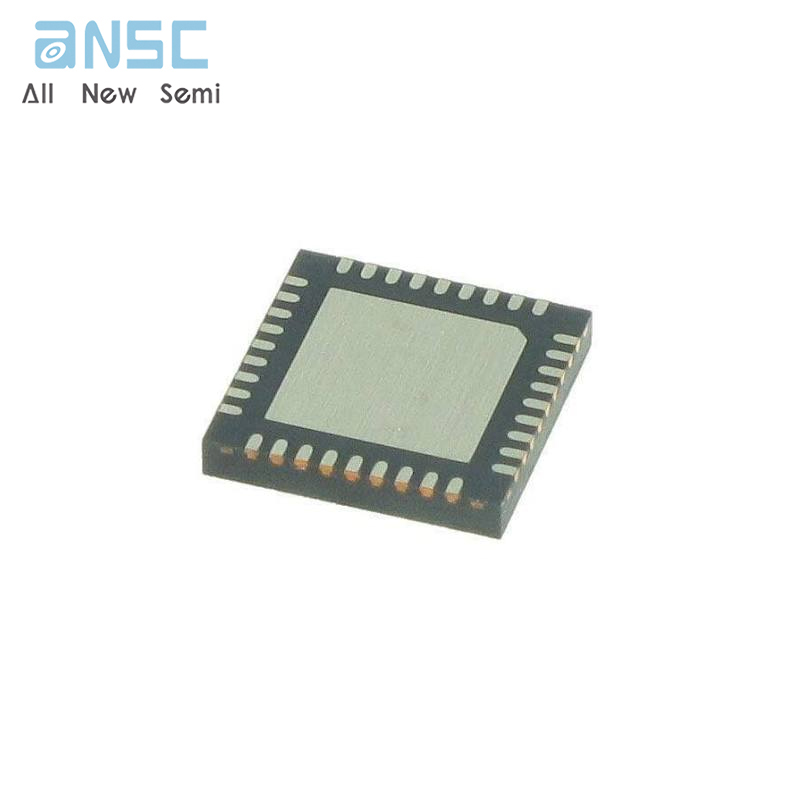

EC2630QI Charge Pump Switching Regulator IC Positive Fixed Vin/2 1 Output 4.5A 36-VFQFN spot stock

Product Descriptions

EC2630QI  is  a  high  density DC-DC   Intermediate  Voltage   Bus   Converter which   generates    a   highly   efficient   output voltage.     EC2630QI  that  tracks  one  half  the input  voltage  and  is  designed  to  work  with Altera’s  highly  integrated  Enpirion  DC  to  DC point-of-load converter products for a complete 12V solution.    EC2630QI provides  the  means to condition power from a 12V input, to supply multiple     lower     voltage    converters    while enabling  high  efficiency and small  PCB  area. Due  to  its  extremely  high efficiency,  it  avoids the   common   two   stage   power   conversion penalty and  is  equivalent or  better than direct regulation.

This  Enpirion solution significantly helps in  system  design  and  productivity  by offering greatly   simplified   board   design,   layout   and manufacturing   requirements .   In   addition,   a reduction in the number of vendors required for the complete power solution helps to enable an overall  system  cost  savings.

Product Features

•    Complete power conditioning solution from a 12 volt power bus.

•    Wide system input voltage range of 8V to 13.2V.

•    High and flat efficiency, up to 97.5%.

•    4.5A Continuous Output Current Capability

•    Adjustable operating frequency with optional external clock input.

•    Master/Slave  Mode for Parallel Operation

•    Output Enable pin, VOUT_OK, VIN_OK

•    Pre-programmed soft-start time.

•    Thermal shutdown, short circuit, Overload, OVLO and UVLO protection.

•     RoHS compliant, MSL level 3, 260C reflow.

Product Applications

•    Applications  requiring down conversion from a 12V bus to a well regulated output voltage with high efficiency, in a compact foot print (Note: The total system application involves two or more Altera Enpirion products .)

•    Enterprise, Industrial, Embedded, and Telecommunication applications

•    Multi-rail computer & network interface applications such as PCIe and ATCA AMC cards.

•    12V Industrial and Consumer Applications such as Audio/Video  Home Theater, Tuners

​

Product Specification

Product Photos

For more product information, please download the PDF
