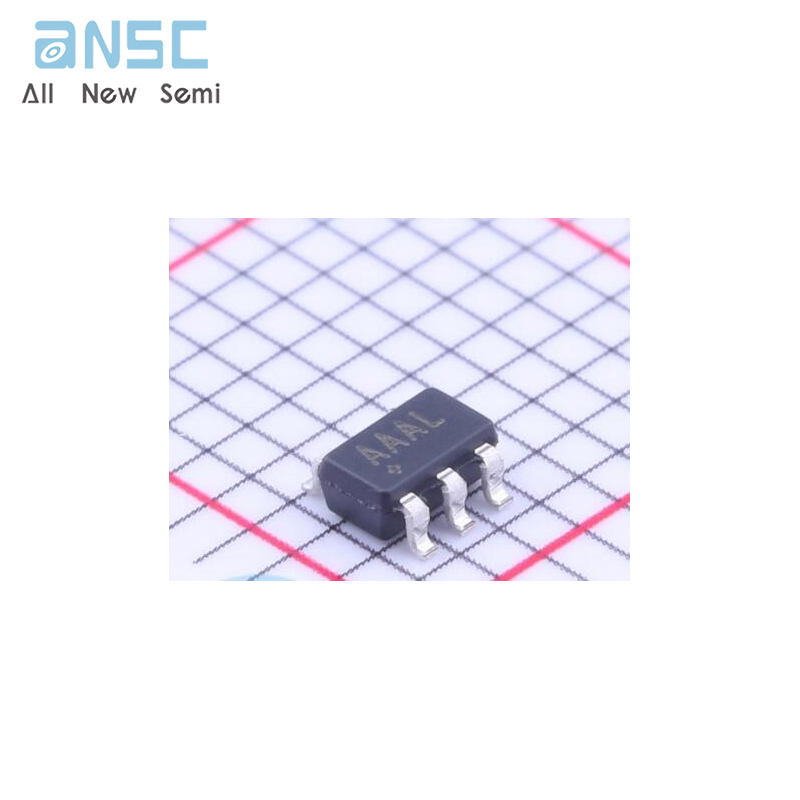

Hot-selling and scarce MAX823SEUK+T 5-Pin Microprocessor Supervisory Circuits SOT23-5 spot stock

    Product Descriptions

The MAX823/MAX824/MAX825* microprocessor (µP) supervisory circuits combine reset output, watchdog, and manual-reset input functions in a 5-pin SOT23-5 package. They significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX823/MAX824/MAX825 are specifically designed to ignore fast transients on VCC.

Five preprogrammed reset threshold voltages are  available, designated by the following package  suffixes: L = 4.63V, M = 4.38V, T = 3.08V, S = 2.93V, and R = 2.63V. All three devices have an active-low reset output, which is guaranteed to be in the correct state for VCC down to 1V. The MAX824/MAX825 also have an active-high reset output. The following Selector Guide explains the functions offered in this series of parts.

    Product Features

♦ Precision Monitoring of +3V, +3.3V, and +5V Power Supplies

♦ Operating Current: 10µA (MAX823L/M) 3µA (MAX825T/S/R)

♦ Fully Specified Over Temperature

♦ 140ms Min Power-On Reset

♦ Guaranteed RESET Valid to VCC = 1V

♦ Power-Supply Transient Immunity

♦ Watchdog Timer with 1.6sec Timeout (MAX823/MAX824)

♦ Manual-Reset Input (MAX823/MAX825)

♦ No External Components

    Product Applications

Battery-Powered Computers and Controllers

Embedded Controllers

Intelligent Instruments

Automotive Systems

Critical µP Monitoring

Portable/Battery-Powered Equipment

    Product Specification

    Product Photos

    For more product information, please download the PDF
